THE CARBON WINCH RANGE
12K
Scout Pro
TANK
ATV/Trailer/SXS
Carbon Offroad

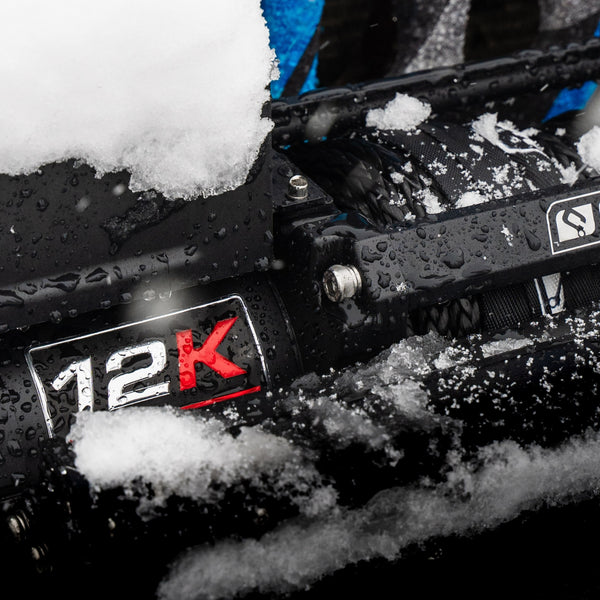

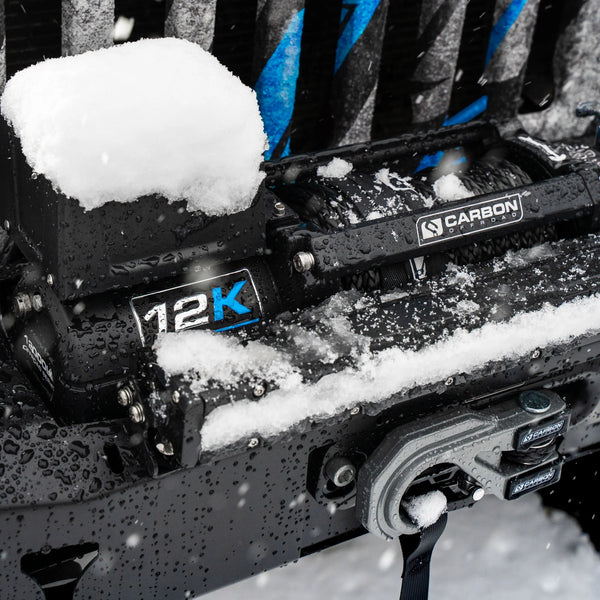

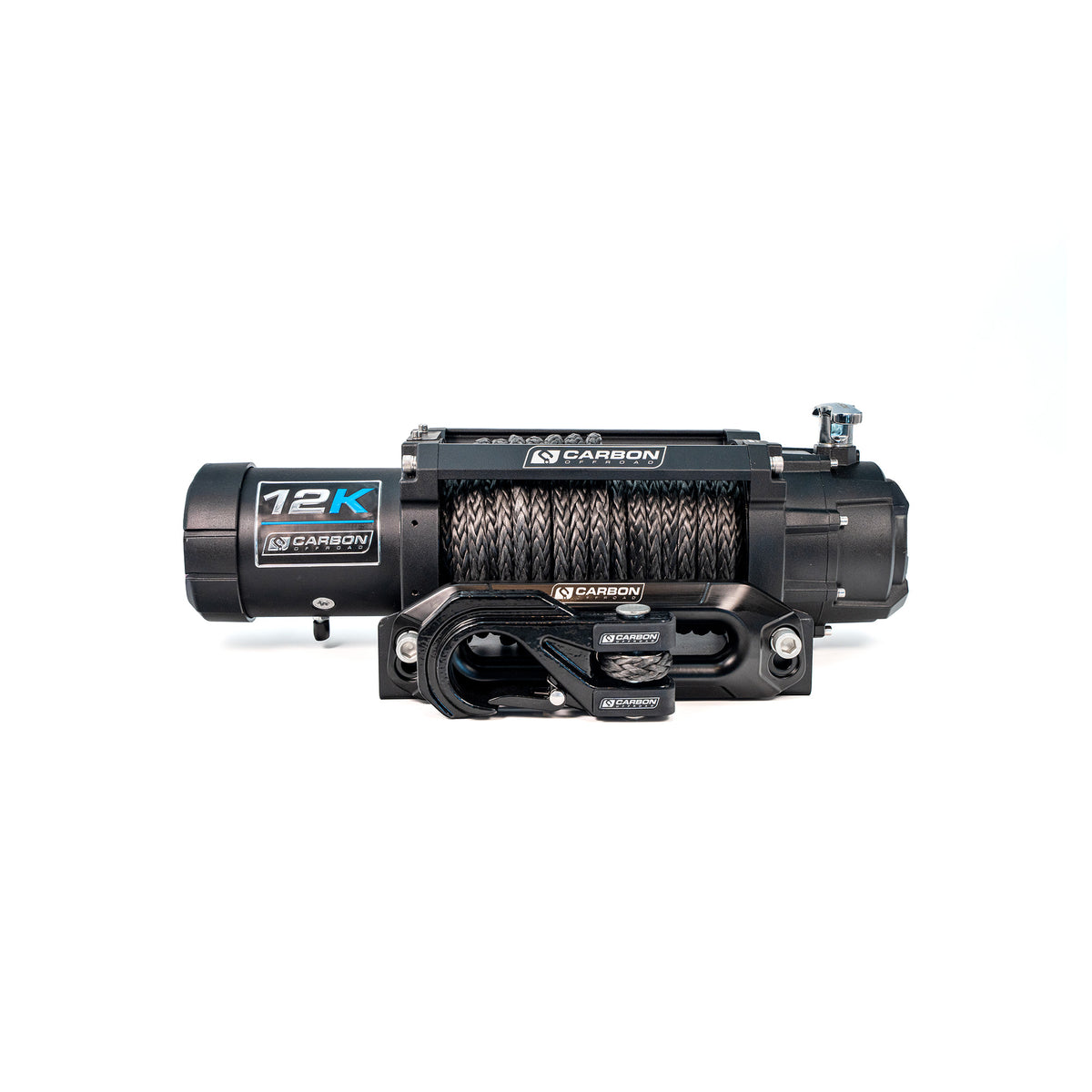

Carbon 12K - 12000lb Winch With Black Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the black hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Pink Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the Pink hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K 24V - 12000lb Winch with Black Hook V3
$749.00
This is a listing for a 24 volt Carbon Winch. Please confirm you need 24 volt before placing your order.
Please note this item is a custom build and my take up to 14 days to dispatch.
Carbon Winch 12k 12000lb Electric 24V 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
If you ask us nicely, we will also change out the black hook for the colour of your choice (has to be in stock) at or before the time of dispatch only.
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Orange Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the Orange hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Purple Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the purple hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Blue Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the blue hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Sandy Taupe Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the sandy taupe hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad
Carbon 12K - 12000lb Winch With Yellow Hook V3
$749.00
Carbon Winch 12k 12000lb Electric 12v 4x4 WinchVersion 3 2023 Model - Now IP68 Waterproof5 Year Australian WarrantyLightest 4x4 Winch
Due to strong customer demand the Carbon Winch range has gone ALL BLACK.
Note: This product will come with the yellow hook. If you are after a different colour hook please see the other product listings :)
The all new feature packed Ver 3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier.
The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat.
IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
You want the reliability of a winch that will perform when you need it to, time after time.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.
If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.
Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
Get a winch you can trust - Get a Carbon Winch
Carbon Offroad

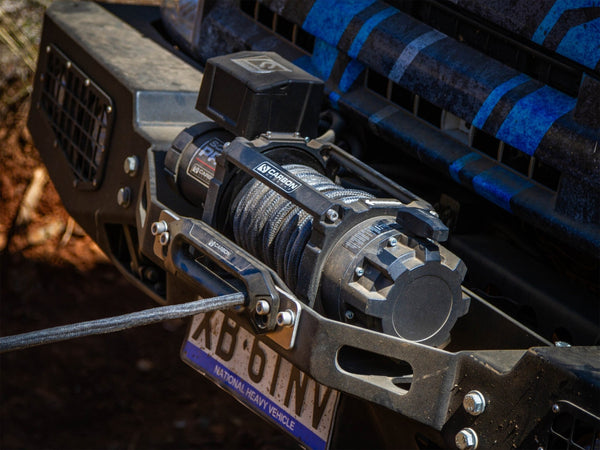

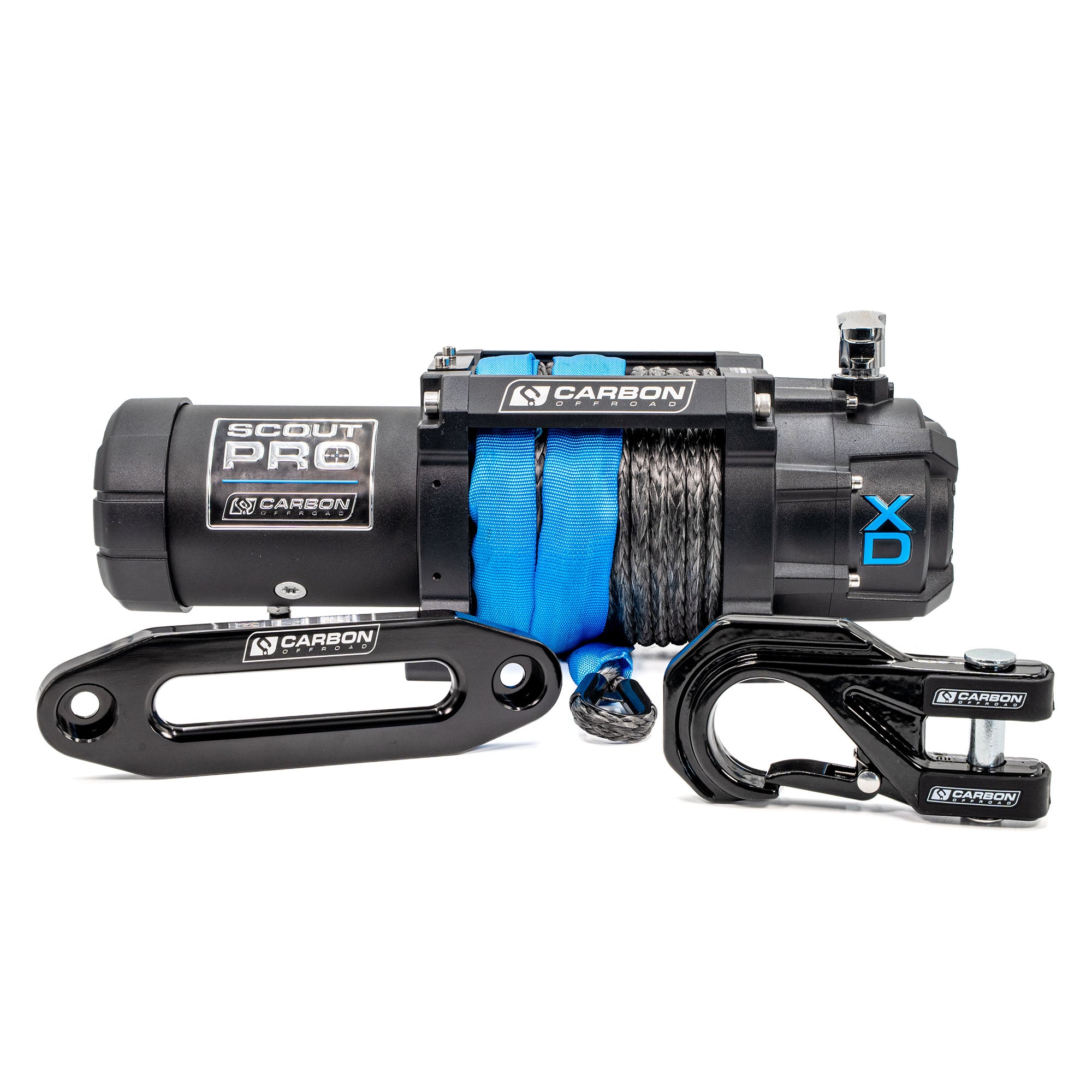

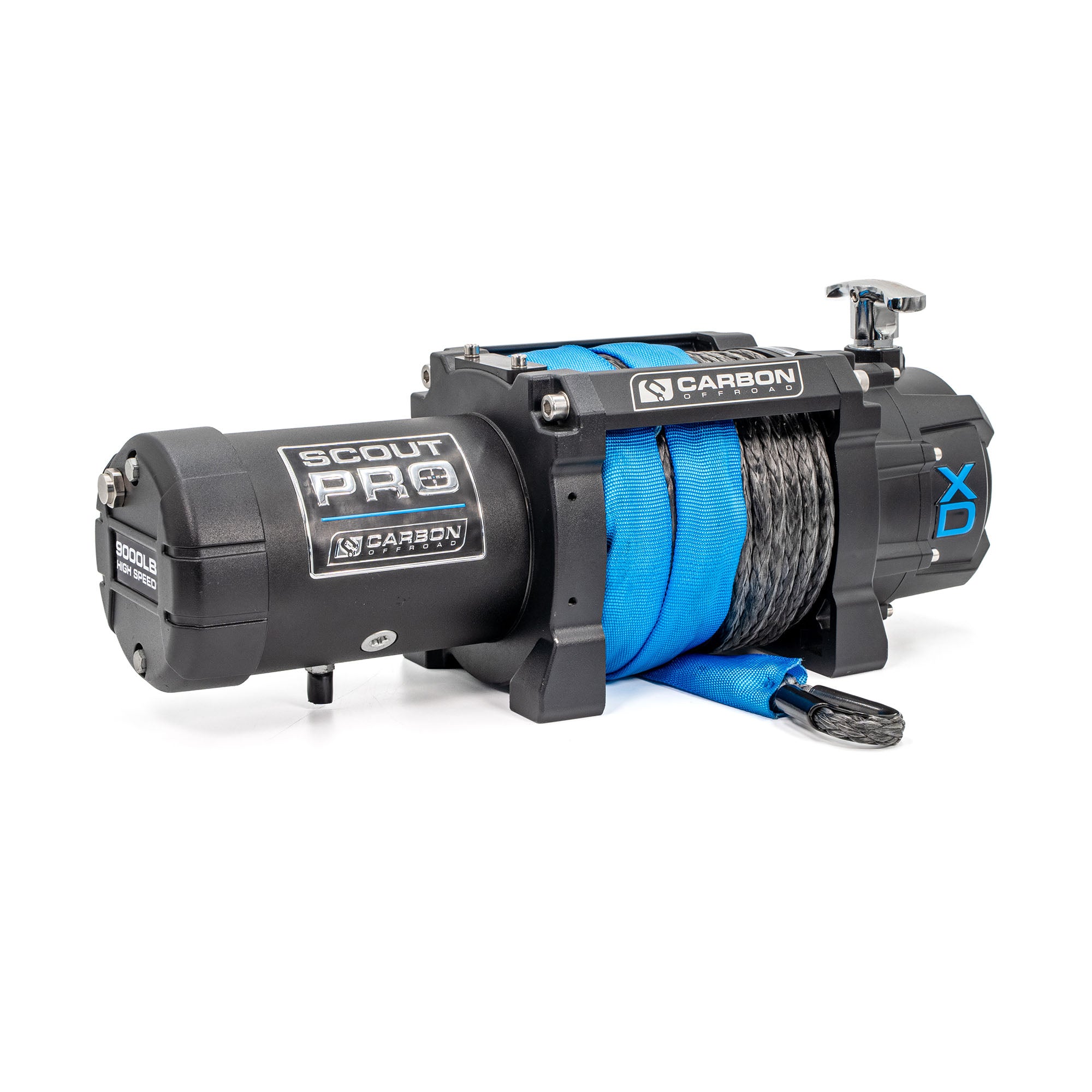

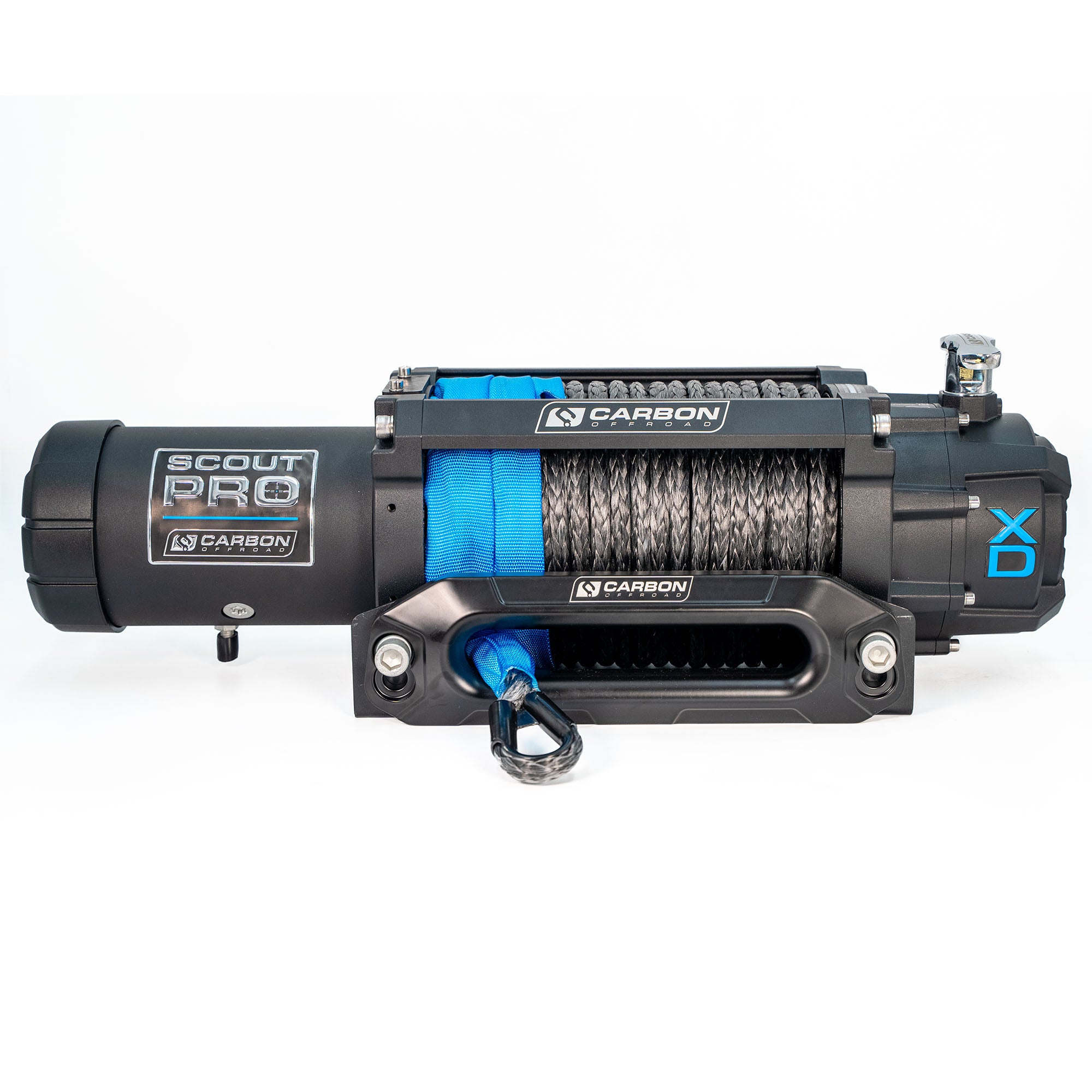

Carbon Scout Pro - 10000lb Winch V3
$749.00
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
Carbon Offroad
Carbon Scout Pro - 15000lb Winch V3 24V
$799.00
Please note this item is a custom build and my take up to 14 days to dispatch.
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 15000lb winch comes with 11mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
218:1 heavy duty performance gearbox
11mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
Installed weight of 26.7kg
CW-XD15
24V DC performance specs (first layer of drum)
Line Pull
Line Speed
Motor
Pull by layer
Lbs.(Kgs.)
FT./min(M/min.)
Current
layer/Lbs(Kgs.)
0
27.9(8.5)
34 amps
1/15,000 (6810)
2000 (910)
11.8(3.6)
60 amps
2/12,700(5765)
6000 (2720)
9.5(2.9)
80 amps
3/10,770 (4890)
10000 (4540)
6.6 (2.0)
108 amps
4/9,130(4145)
13000 (5900)
4.6 (1.4)
134 amps
15000 (6818)
3.6 (1.1)
190 amps
Carbon Offroad
Carbon Scout Pro - 15000lb Winch V3
$799.00
The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets compared to our CW-12K, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.
Did you Know: "Module" is the unit of size that indicates how big or small a gear is. It is the ratio of the reference diameter of the gear divided by the number of teeth.
The Scout Pro series winches share the same 2023 Version 3 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4x4 utes and 4x4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 15000lb winch comes with 11mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.
Carbon Winch 2023 V3 winch chassis
7.0HP Motor
218:1 heavy duty performance gearbox
11mm Synthetic Rope with HD braced rope thimble
Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit, the solenoid in this winch is rated to 100amps more than the CW-12K solenoid unit.
Installed weight of 26.7kg
CW-XD15
12V DC performance specs (first layer of drum)
Line Pull
Line Speed
Motor
Pull by layer
Lbs.(Kgs.)
FT./min(M/min.)
Current
layer/Lbs(Kgs.)
0
27.9(8.5)
65 amps
1/15,000 (6810)
2000 (910)
11.8(3.6)
120 amps
2/12,700(5765)
6000 (2720)
9.5(2.9)
160 amps
3/10,770 (4890)
10000 (4540)
6.6 (2.0)
215 amps
4/9,130(4145)
13000 (5900)
4.6 (1.4)
265 amps
15000 (6818)
3.6 (1.1)
380 amps
Carbon Offroad
Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch
$299.00
The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch
The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it's one big value when you consider the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.
SPECIFICATION / PART NUMBERS CW-3U 3000lb
Part number: CW-3U
Rated line pull: 3000lbs, (1360kg) single-line
Motor: 12V DC 1.5HP Permanent Magnet motor
Remote Control: Remote Switch, 12� (3.7m) lead.
Wireless Remote Control: Included
Geartrain: Single Stage Planetary.
Gear Ratio: 153:1
Clutch (freespooling): Split Ring Gear
Brake: Self-locking gear train ( Rated Load Holding
Drum Diameter/Length: 1.26��/2.87�� (32mm/73mm)
Synthetic Rope: 43�, 3/16�� diameter ( 13m, 4.8 diameter)
Fairlead: Roller
Mounting Bolt Pattern: 3.0�� x 4.87�� ( 76mm x 124mm )
Winch Dimensions ( L x W x H ): 12.2'' x 5.0'' x 5.0'' (310x 127 x 127mm )
Packing Dimensions( L x W x H ): 15.7��x 7.9'' x 8.7'' ( 400 x 200 x 220mm )
Shipping Weight: 10kg ( 22lbs)
Warranty : 1 year
12V DC PERFORMANCE SPECS (first layer of drum)
Line PullLbs.(Kgs.)
Line SpeedFT./min(M/min.)
MotorCurrent
Pull by layerlayer/Lbs(Kgs.)
0
20.4(6.2)
10Amps
1/3000(1360)
1000(453)
14.2(4.3)
65Amps
3/2725(1235)
2000(907)
10.9(3.3)
96Amps
3/2480(1125)
3000(1360)
7.7(2.4)
Carbon Offroad

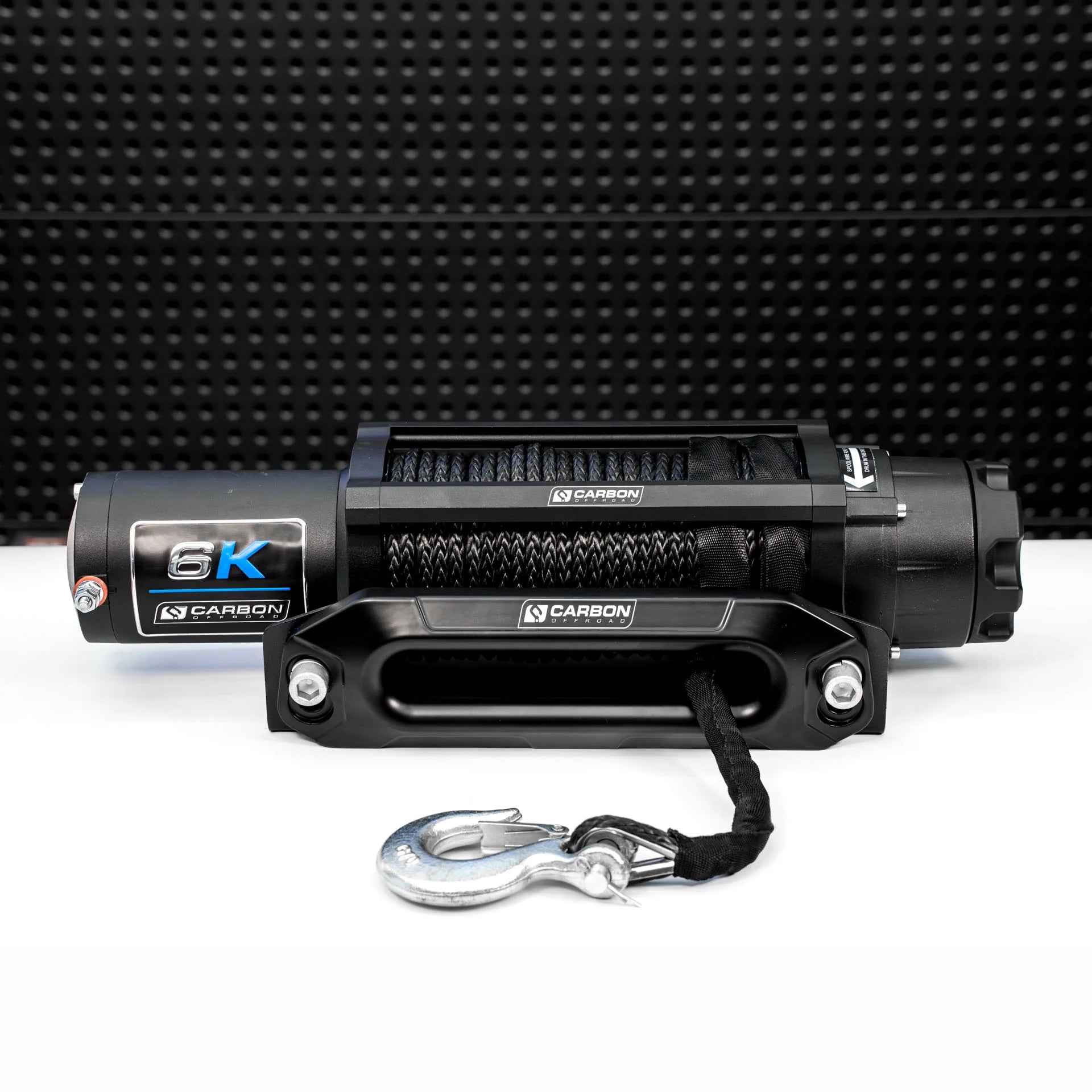

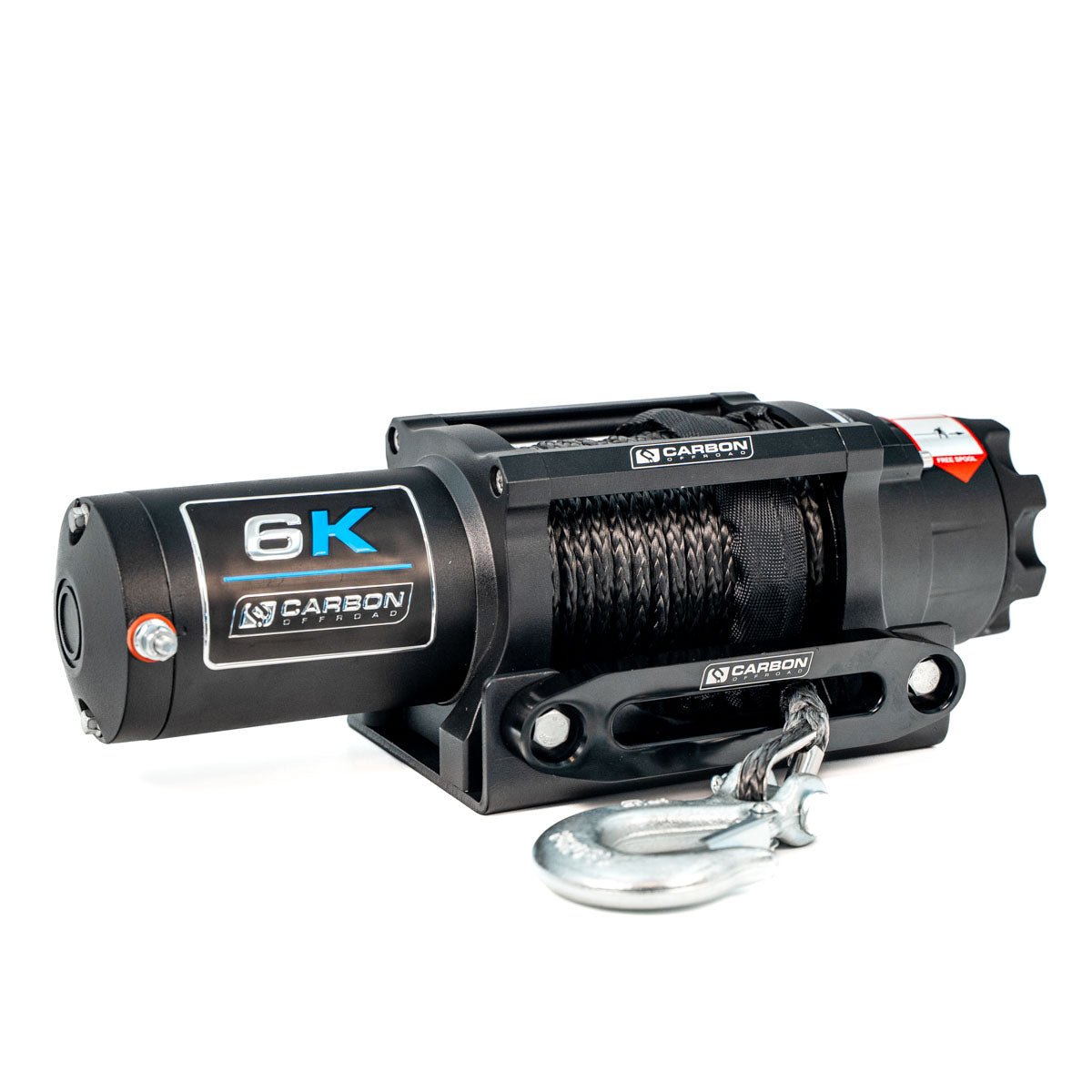

Carbon Offroad 6000lb ATV/Small 4X4 Winch
$349.00
The Carbon Offroad 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.
A small compact winch with integrated mounting plate makes mounting this winch is as simple as it can get to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Features and Benefits
Sealed motor and geartrain allows for flawless operations in extreme conditions
Permanent magnet motor provides heavy duty torque for increased pulling power
Cam action disengages gears for near silent free-spooling
Mechanical and dynamic brake offers increased control and prevents rollback
Specification for CW-XD6
Part number: CW-XD6
Rated line pull: 6,000 lbs, (2721kg) single-line
Motor: 12V DC 1.5HP motor
Geartrain: 3 Stage Planetary
Gear Ratio: 166:1
Clutch: Free spooling, Cam activated
Synthetic Rope: 42 ft (13m) x 1/4 in (6.0mm)
Fairlead: Aluminium Hawse
IP Rating: IP66 - Winch and Controls (Except remote switch)
Winch Dimensions ( L x W x H ): 13.8 x 4.5 x 4.7in (350.5 x 115 x 120mm)
Mounting Bolt Pattern: 3.0 x 6.59in (76mm x 167mm)
Packing Dimensions( L x W x H ): 19.7 x 12.1 x 7.28in (500 x 307 x 185mm)
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
MotorCurrent @12V
0 (0)
20.5 (6.2)
30 Amps
1000 (454)
16.1 (4.9)
83 Amps
2000 (907)
12.8 (3.9)
136 Amps
3000 (1361)
10.7 (3.3)
168 Amps
4000 (1814)
8.6 (2.6)
232 Amps
6000 (2721)
4.9 (1.5)
320 Amps
**The manual indicates that a circuit breaker is included, unfortunately this is not the case. We apologise for any confusion.**
Carbon Offroad
Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
$399.00
The Carbon Offroad Long Drum 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.
A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
Sealed motor and geartrain allows for flawless operations in extreme conditions
Permanent magnet motor provides heavy duty torque for increased pulling power
Cam action disengages gears for near silent free-spooling
Mechanical and dynamic brake offers increased control and prevents rollback
Carbon Offroad

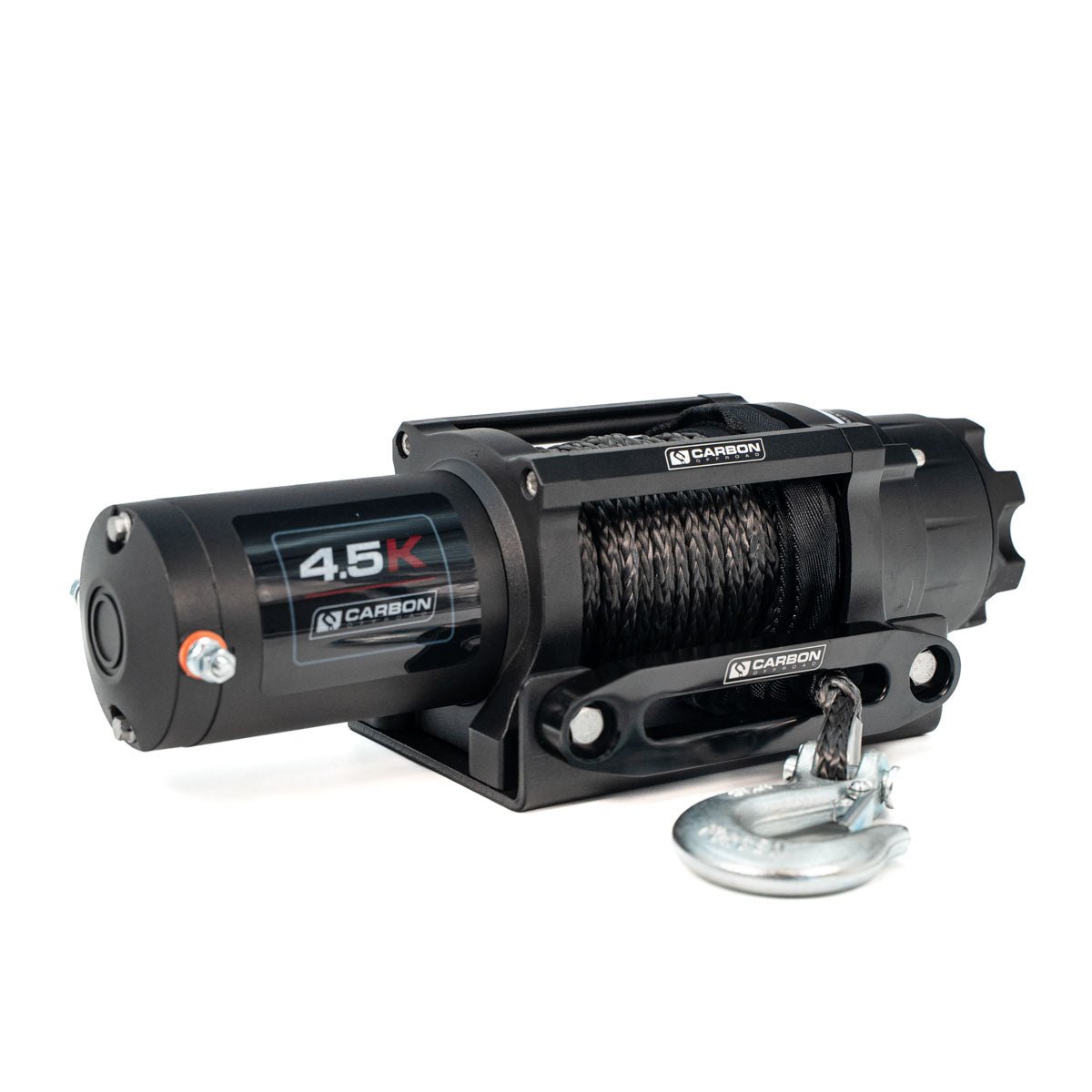

Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control
$399.00
The Carbon Offroad 4,500 lb Capacity ATV/UTV winch for big ATV, UTV and sides x sides, and car trailers. This winch has been upgraded and all stock from September 2021 onward have been re-designed to include better clutch handle operation, seals allowing use in wet conditions, better quality finish and components all for the same price.
A small compact winch with integrated mounting plate makes mounting this winch as simple as it can get to an exisitng pedestal on a trailer, or into a winch location on an ATV or Buggy.
With wireless remote control included free and a handlebar rocker switch control option, it's a very versatile winch setup.
Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinnys and open cattle gates on Livestock Truck Trailers.
A great small all rounder winch to make work easier or to get your buggy out of the bog.
FEATURES
4,500 lb (2,040 kg ) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance.
Mechanical load holding and dynamic brake for 100% braking.
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid wire rope payout
Synthetic rope
SPECIFICATION / PART NUMBERS CW-45
Part number: CW-4.5
Rated line pull: 4,500 lbs, (2040kg) single-line
Motor: 12V DC 1.9HP motor
Remote Control: Handlebar Mini-Rocker
Wireless Remote Control: included
Geartrain: 3-Stage Planetary.
Gear Ratio: 176:1
Clutch (freespooling): Split Ring Gear
Brake: Dynamic and mechanical braking
Drum Diameter/Length: 2.5��/4.4�� (60.5mm/112mm)
Synthetic Rope: 43�, 1/4�� diameter ( 13m, 6.35 diameter)
Fairlead: Aluminium Hawse
Mounting Bolt Pattern: 3.0�� x 6.59�� ( 76mm x 167mm )
Winch Dimensions ( L x W x H ): 14.9'' x 4.7'' x 4.5'' (379x 120 x 115mm )
Packing Dimensions( L x W x H ): 19.7x 10.6'' x 6.3'' ( 500 x 270 x 160mm )
Shipping Weight: 12.2kg
12V DC PERFORMANCE SPECS (first layer of drum)
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
MotorCurrent
Pull by layerlayer/Lbs(Kgs.)
0
20.4(6.2)
31 Amps
1/4500(2040)
1000
14.2(4.3)
65Amps
2/3750(1700)
2000
10.9(3.3)
96Amps
3/3510(1595)
3000
7.7(2.4)
125Amps
4/3300(1500)
4500
4.9(1.5)
175.Amps
Subscribe to our newsletter
Keep up to date with the latest from the team at Carbon Offroad
BLOG AND ARTICLES
@carbonoffroad_australia
