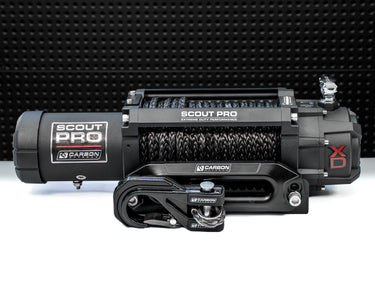

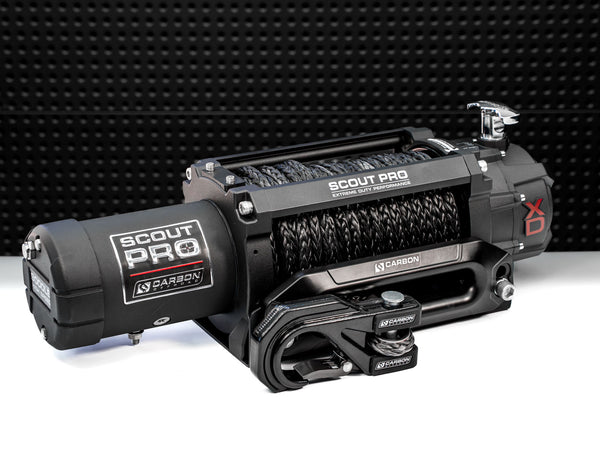

Got a bar rated to 10K? Stay within spec and retain your warranty with the Carbon Scout Pro XD10. The Carbon Offroad Scout Pro XD10 is a 12V electric recovery winch rated at 10,000 lb, designed for regular off-road recovery work. Part of the Scout Pro Extreme Duty Performance Series, it is intended for vehicles operating in harsh Australian conditions where faster line speed and controlled recovery are required. The Scout Pro 10K is designed for vehicles with bars rated to 10,000 lb, keeping recovery loads within specification while delivering increased line speed for efficient recoveries. Features • 10,000 lb (4,536 kg) rated electric winch• 12V DC operation• 6 HP series-wound electric motor• 180:1 gear ratio• Rotating ring gear clutch• Chrome freespool clutch handle with etched Carbon Offroad logo• Synthetic UHMWPE rope fitted (10 mm x 24 m)• Checker-knurled winch drum• Matte black powder coat finish• 316 stainless steel bolts, nuts, spring washers, and flat washers• IP68 rated dustproof and waterproof construction• Scout Pro Extreme Duty Performance Series construction• Supplied CNC aluminium fairlead Specifications Rated Pull: 10,000 lb (4,536 kg) Motor: 6 HP series-wound Gear Ratio: 180:1 Rope: 78 ft (24 m) synthetic UHMWPE Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm) Drum Dimensions: 2.50 in x 8.82 in (63.5 mm x 224 mm) Winch Dimensions: 21.1 in x 6.2 in x 7.4 in (535 mm x 158 mm x 187 mm) Control: Wired and wireless remote operation Contents 1 x Carbon Offroad Scout Pro XD10 10,000 lb Winch1 x Synthetic winch rope (10 mm x 24 m)1 x Winch rope thimble1 x CNC aluminium fairlead1 x Carbon Offroad MegaPro winch hook1 x Winch mounting bolt kit (mounting bolts, nuts, washers, fairlead bolts)1 x Wired remote control1 x Wireless remote control1 x Isolator switch

The Scout Pro 15K bridges the gap between standard 12K winches and truck-grade brutes. With 15,000lb (6,804kg) pulling capacity, a 7HP motor, and oversized gearsets, it’s built for heavily loaded overland rigs, RAM 1500s, 79 Series Land Cruisers, and slide-on camper haulers that push beyond a 12K’s comfort zone. 15,000lb (6,804kg) Rated Pull – Ideal for RAM 1500, 79 Series, Land Cruiser wagons, and heavy overland rigs 7HP Series-Wound Motor – Provides dependable torque for heavy pulls 218:1 Gear Ratio – Balanced for strength and line speed 78ft (24m) Synthetic Rope – High-strength, lightweight UHMWPE Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm) Drum Dimensions – 2.50in x 8.82in (63.5mm x 224mm) Winch Dimensions – 21.9in x 6.2in x 7.4in (556.5mm x 158mm x 187mm) IP68 Rated – Dustproof and waterproof for harsh conditions Forged Rope Thimble & MegaPro Hook – Available in 10 color options Precision Alloy Fairlead – Forged, engraved, and machined for durability Wired + Wireless Remotes – Operate from the cab or at the winch

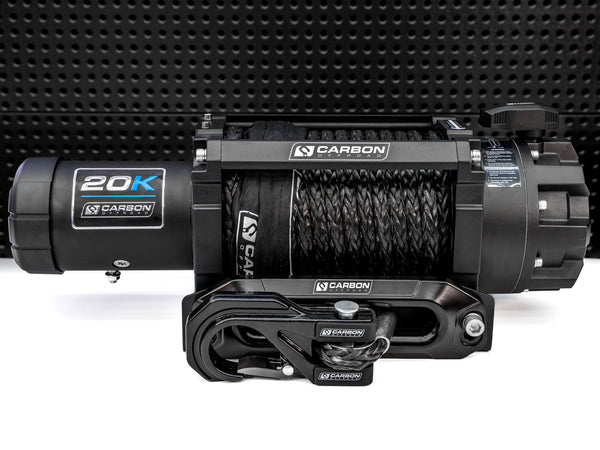

The Scout Pro 20K is built for serious recovery on heavy-duty 12V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power. 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries 7HP Series-Wound Motor – Delivers high torque for confident pulling 354:1 Gear Ratio – Optimized for controlled, powerful winching 82ft (25m) Synthetic Rope – Strong, lightweight, and easy to handle Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm) Drum Dimensions – 3.46in x 8.82in (88mm x 224mm) Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm) IP68 Rated – Fully sealed against dust and water Wired + Wireless Remotes – Flexible operation options Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes Automatic Load-Holding Brake – Prevents rollback and overheating Winch weight with synthetic rope attached – 66.14lb (30kg) Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead – 81.6lb (37kg)

The Scout Pro 20K is built for serious recovery on heavy-duty 24V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power. 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries 7HP Series-Wound Motor – Delivers high torque for confident pulling 354:1 Gear Ratio – Optimized for controlled, powerful winching 82ft (25m) Synthetic Rope – Strong, lightweight, and easy to handle Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm) Drum Dimensions – 3.46in x 8.82in (88mm x 224mm) Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm) IP68 Rated – Fully sealed against dust and water Wired + Wireless Remotes – Flexible operation options Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes Automatic Load-Holding Brake – Prevents rollback and overheating Winch weight with synthetic rope attached – 66.14lb (30kg) Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead – 81.6lb (37kg)

Carbon Offroad Scout Pro RS Series: Built for Speed The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you’re looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class. The RS Series Breakdown High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load. Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance. Line Capacity: Comes standard with 42m (137ft) of 8mm Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions. Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment. The Bottom Line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings. Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 42m (5/16" x 137ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") Drum Diameter x Length 63mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Chassis Carbon Offroad Version 3 (V3) Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit   Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A   Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)

The Carbon Offroad Scout Pro RS9-S (Short Drum): Pure Race Power Maximum Muscle. Minimum Footprint. When you’re piloting a race buggy, UTV, or specialized ATV, every millimeter and every gram counts. The Scout Pro RS9-S is the short-drum evolution of our high-speed series—designed specifically for tight spaces where you refuse to compromise on recovery speed or pulling power. The RS9-S Advantage Don’t let the compact size fool you. This is the same 8.0HP powerhouse found in our full-size rigs, shortened down for elite racing applications. With a performance-tuned 80:1 gear ratio, the RS9-S delivers the fastest line speeds in the UTV/Buggy class. Built on our ultra-lightweight chassis, it comes standard with 24m (80ft) of 8mm Spectra™ Fiber synthetic rope. It’s the ultimate "insurance policy" for competitors who need to winch fast, win big, and keep their front end light and flickable. Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 24m (5/16" x 80ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 385mm x 115mm x 120mm (15.16" x 4.53" x 4.7") Drum Diameter x Length 63mm x 122mm (2.5" x 4.8") Mounting Bolt Pattern 164mm x 114.3mm (6.46" x 4.5") Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit Winch Weight 22kg (48.4lb)   Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A   Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)   Builder & Racer Note The RS9-S features a shortened drum and chassis to fit narrow mounting locations common in race buggies and UTVs. Despite its compact 385mm (15.16 inch) length, it retains the full-sized 8.0HP motor. Ensure your mounting plate or winch cradle is rated for 9,000lb (4,080kg) loads, as this unit packs significantly more punch than standard UTV-class winches.

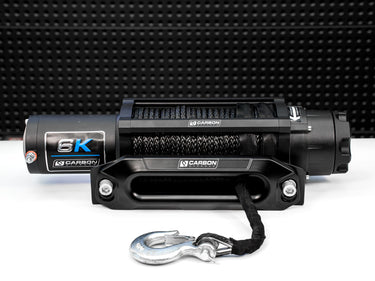

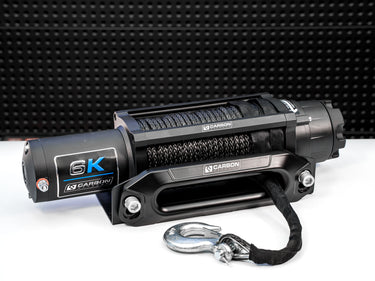

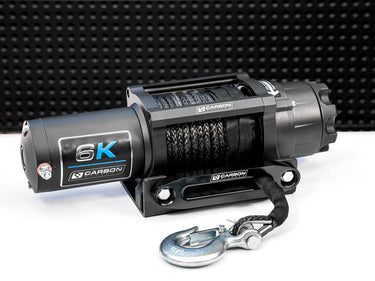

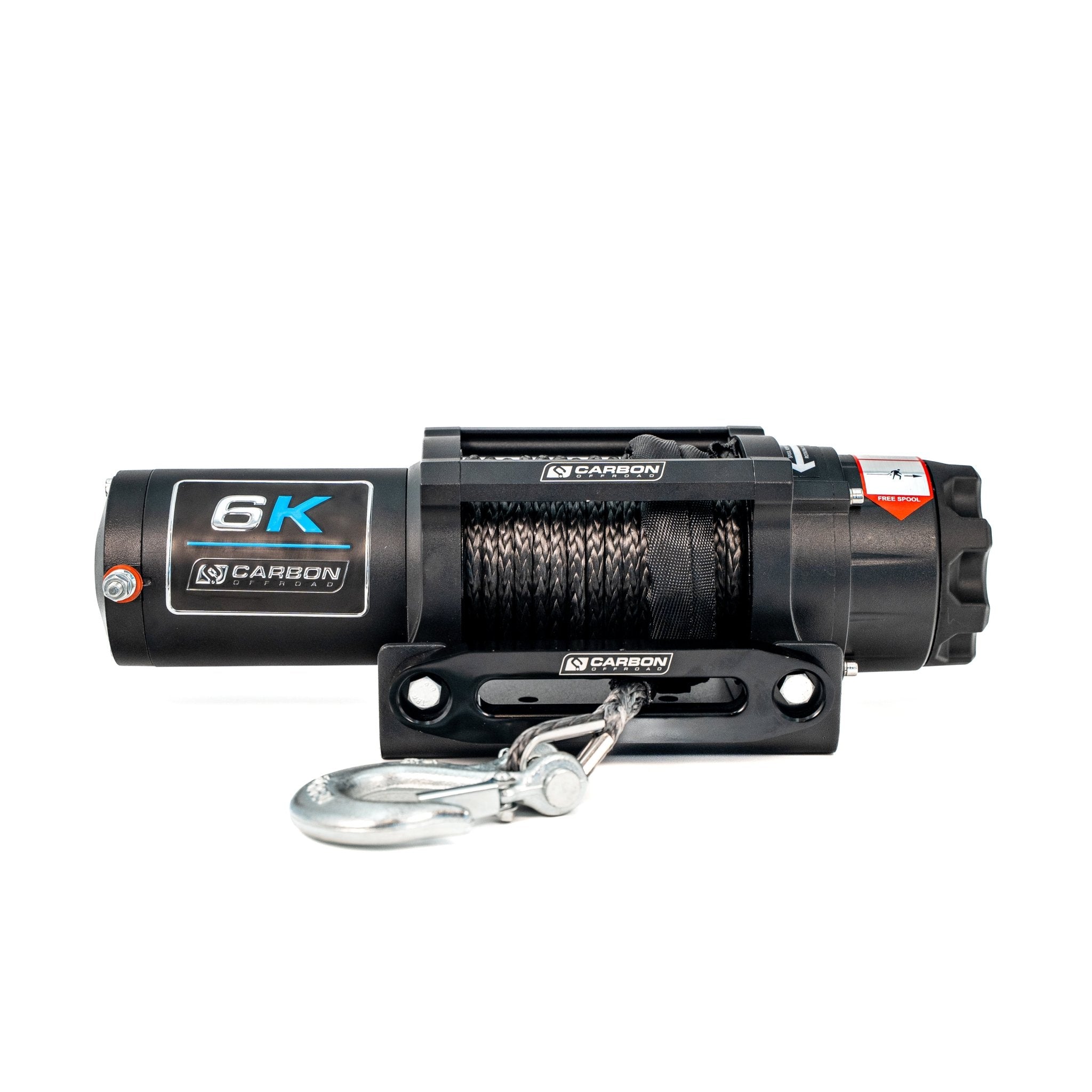

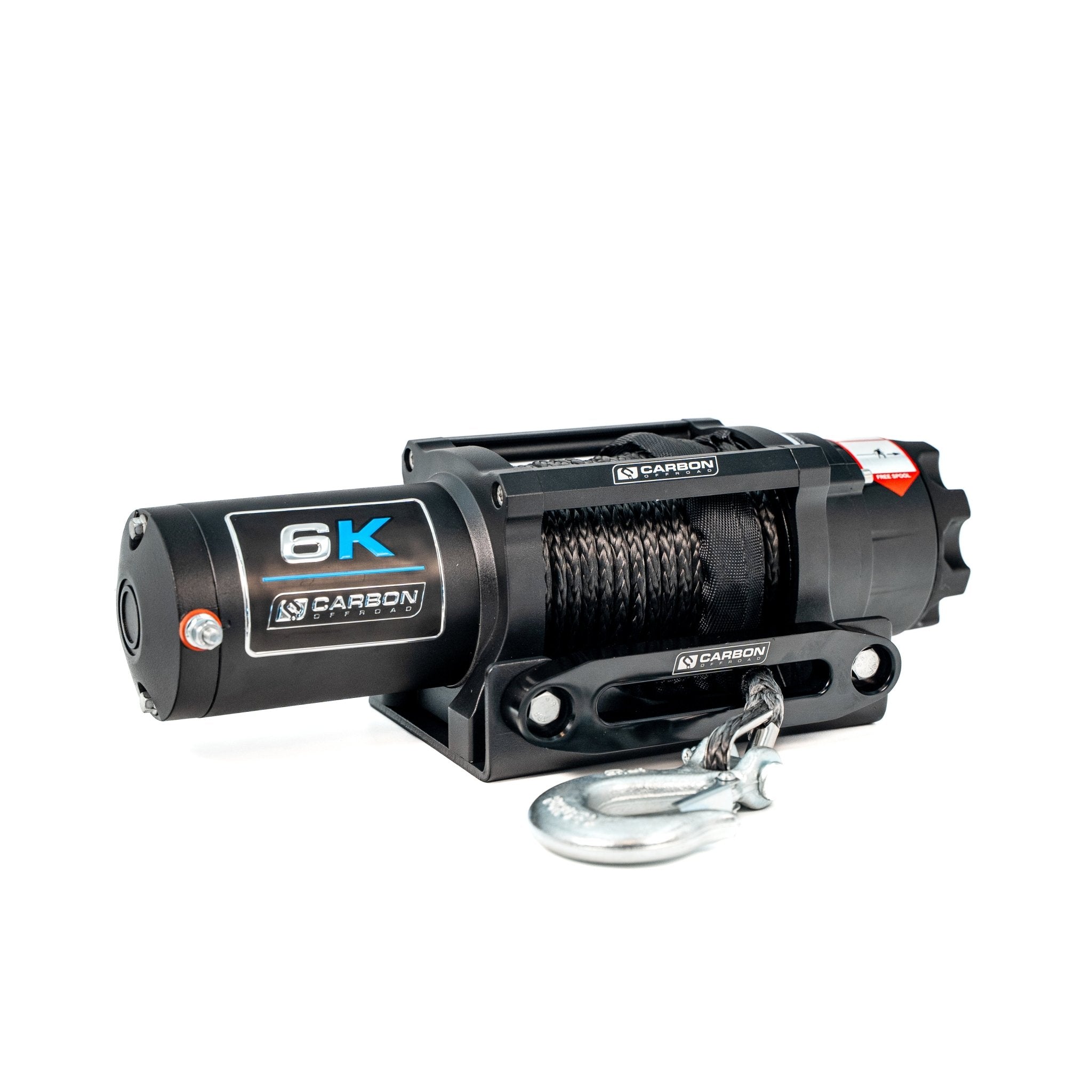

The Carbon 6K packs serious pulling performance into a compact frame, delivering 6,000lb (2,725kg) of capacity with a powerful 2.5HP motor. Perfect for ATVs, UTVs, and light 4x4s tackling farm work, tight forest trails, or deep mud, it’s built for dependable recovery in challenging conditions. 6,000lb (2,725kg) Rated Pull – Serious recovery for ATVs, UTVs, and light 4x4s 2.5HP Motor – Delivers dependable torque in a compact design 147:1 Gear Ratio – Balanced for strength and control 46ft (14m) Synthetic Rope – Lightweight, high-strength UHMWPE Mounting Bolt Pattern – 6.46in x 2.99in (164mm x 76mm) Drum Dimensions – 2.01in x 4.80in (51mm x 122mm) Winch Dimensions – 15.16in x 4.53in x 4.69in (385mm x 115mm x 119mm) IP68 Rated winch and solenoid (excludes remote control and switch) Handlebar Mini-Rocker + Wireless Remote – Versatile control

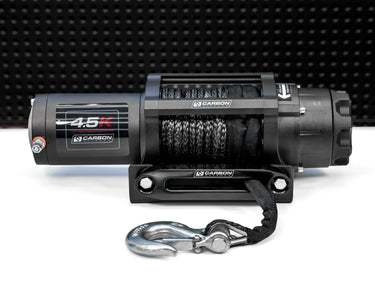

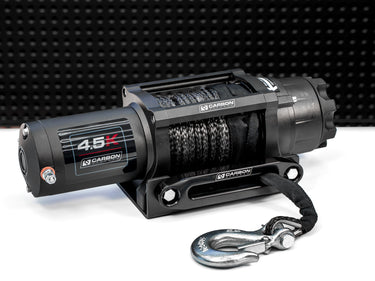

Built for heavier side-by-sides and utility vehicles, the ATV 4.5K offers 4,500lb capacity and a compact, rugged build. Designed for ATVs, UTVs, side-by-sides, car trailers and equipment transport; this winch is ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers. 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use 1.9HP Motor – Compact with reliable pulling power 176:1 Gear Ratio – Strong, controlled operation 43ft (13m) Synthetic Rope – Lightweight and durable Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm) Drum Dimensions – 1.26in x 2.87in (32mm x 73mm) Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm) IP66 Rated winch and solenoid (excludes remote control and switch) Wired + Wireless Remotes – Flexible control options  12V DC PERFORMANCE SPECS (first layer of drum)   Line Pull Lbs.(Kgs.) Line Speed FT./min(M/min.) MotorCurrent Pull by layerlayer/Lbs(Kgs.) 0  20.4(6.2) 31 Amps 1/4500(2040) 1000 14.2(4.3) 65Amps 2/3750(1700) 2000 10.9(3.3) 96Amps 3/3510(1595) 3000 7.7(2.4) 125Amps 4/3300(1500) 4500 4.9(1.5) 175.Amps

Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t. With 6,000lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly. 6,000lb (2,725kg) Rated Pull – Perfect for marine, trailer, and utility use 2.5HP Motor – Reliable, compact performance 147:1 Gear Ratio – Balanced strength and control 85ft (26m) Synthetic Rope – Extended reach for versatile recovery Mounting Bolt Pattern – 10in x 2.99in (254mm x 76mm) Drum Dimensions – 2.01in x 8.19in (51mm x 208mm) Winch Dimensions – 18.62in x 4.92in x 4.72in (473mm x 125mm x 120mm) IP68 Rated winch and solenoid (excludes remote control and switch) Handlebar Mini-Rocker + Wireless Remote – Multiple control options Please note this kit does not include the winch cradle in the pictures.
