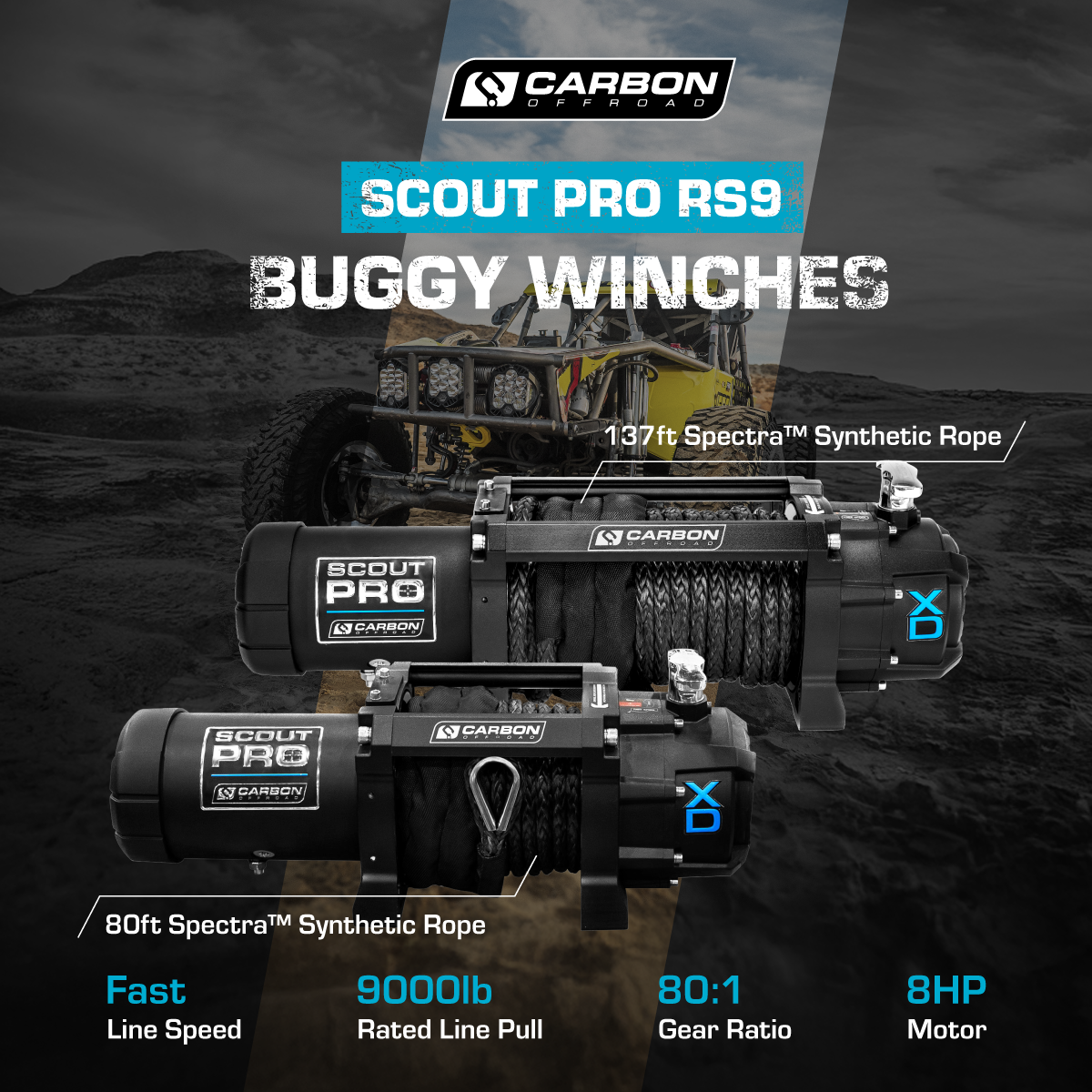

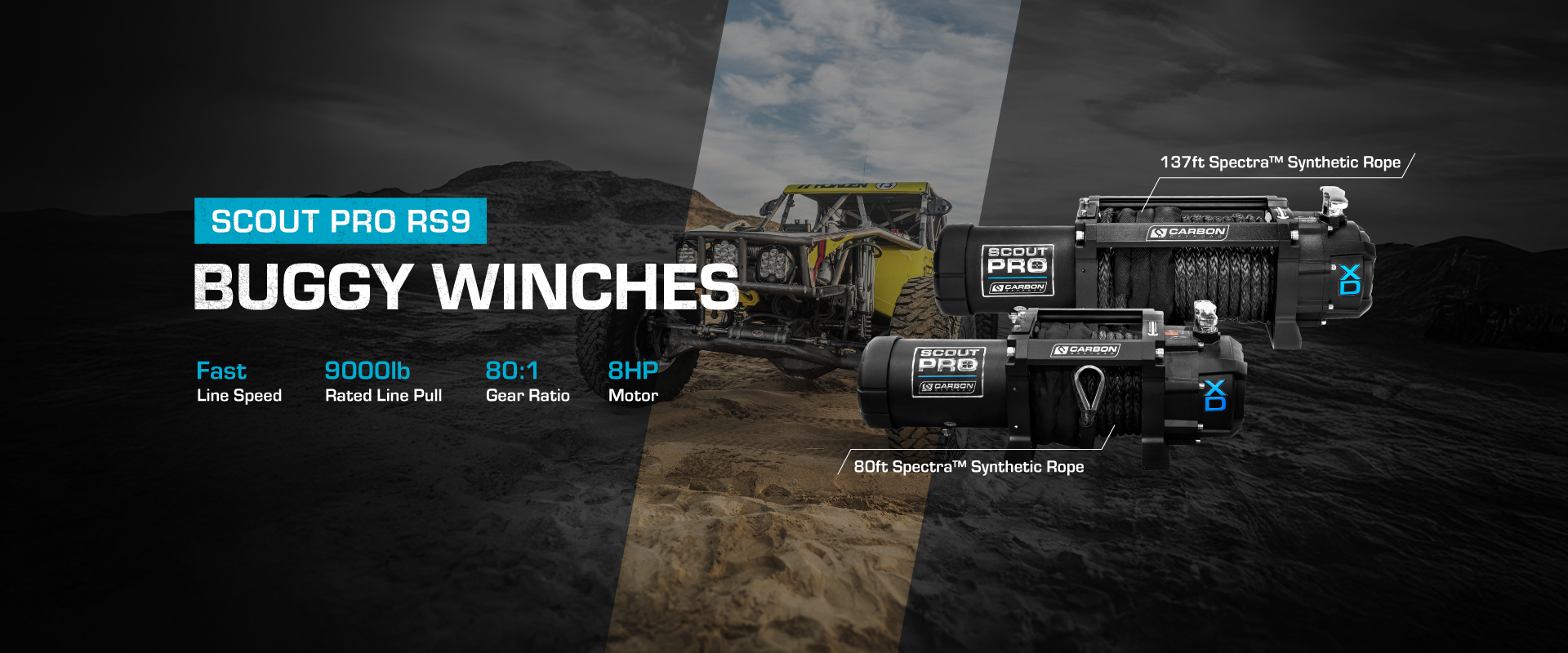

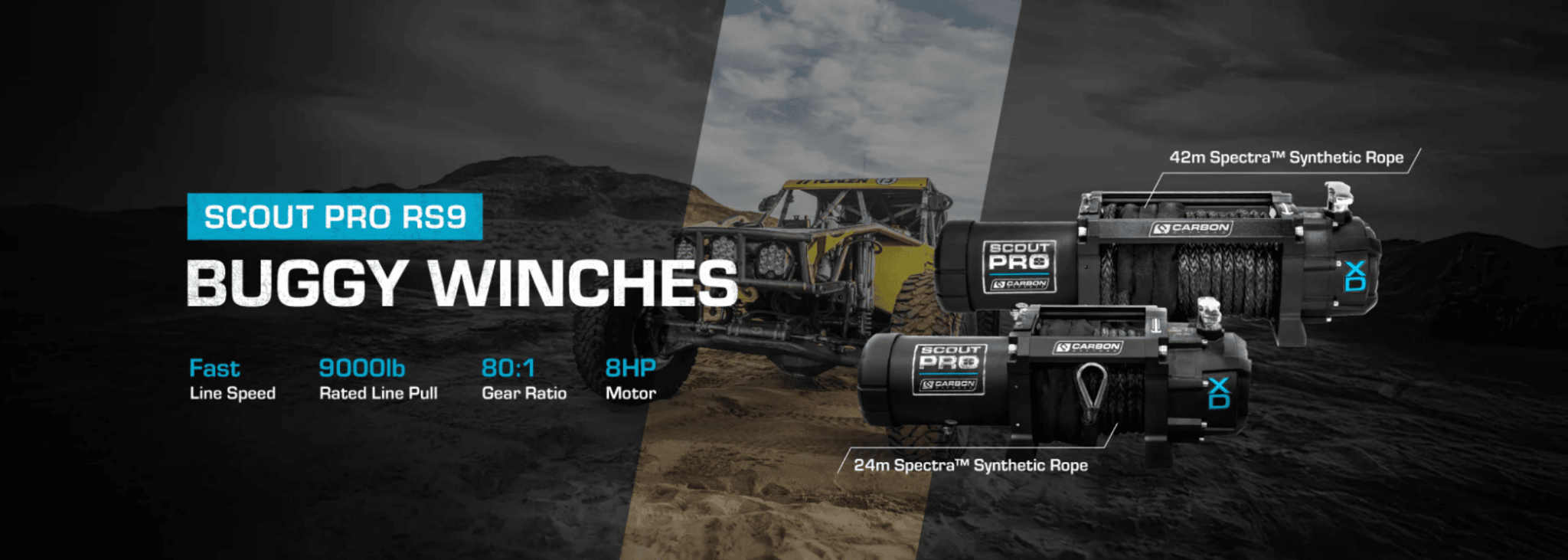

Carbon Offroad Scout Pro RS Series: Built for Speed The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you’re looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class. The RS Series Breakdown High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load. Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance. Line Capacity: Comes standard with 42m (137ft) of 8mm Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions. Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment. The Bottom Line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings. Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 42m (5/16" x 137ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") Drum Diameter x Length 63mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Chassis Carbon Offroad Version 3 (V3) Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit   Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A   Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)

The Carbon Offroad Scout Pro RS9-S (Short Drum): Pure Race Power Maximum Muscle. Minimum Footprint. When you’re piloting a race buggy, UTV, or specialized ATV, every millimeter and every gram counts. The Scout Pro RS9-S is the short-drum evolution of our high-speed series—designed specifically for tight spaces where you refuse to compromise on recovery speed or pulling power. The RS9-S Advantage Don’t let the compact size fool you. This is the same 8.0HP powerhouse found in our full-size rigs, shortened down for elite racing applications. With a performance-tuned 80:1 gear ratio, the RS9-S delivers the fastest line speeds in the UTV/Buggy class. Built on our ultra-lightweight chassis, it comes standard with 24m (80ft) of 8mm Spectra™ Fiber synthetic rope. It’s the ultimate "insurance policy" for competitors who need to winch fast, win big, and keep their front end light and flickable. Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 24m (5/16" x 80ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 385mm x 115mm x 120mm (15.16" x 4.53" x 4.7") Drum Diameter x Length 63mm x 122mm (2.5" x 4.8") Mounting Bolt Pattern 164mm x 114.3mm (6.46" x 4.5") Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit Winch Weight 22kg (48.4lb)   Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A   Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)   Builder & Racer Note The RS9-S features a shortened drum and chassis to fit narrow mounting locations common in race buggies and UTVs. Despite its compact 385mm (15.16 inch) length, it retains the full-sized 8.0HP motor. Ensure your mounting plate or winch cradle is rated for 9,000lb (4,080kg) loads, as this unit packs significantly more punch than standard UTV-class winches.
