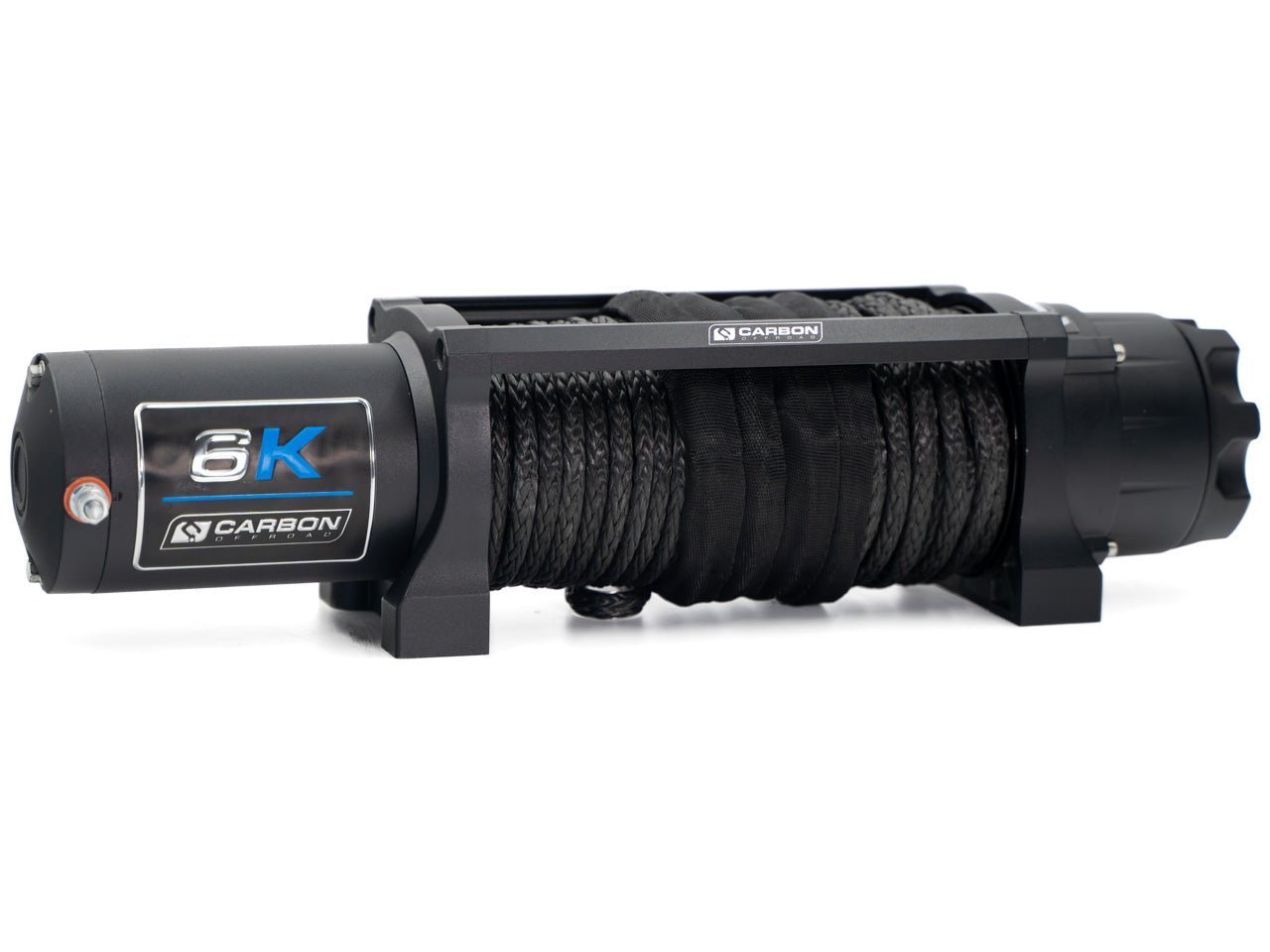

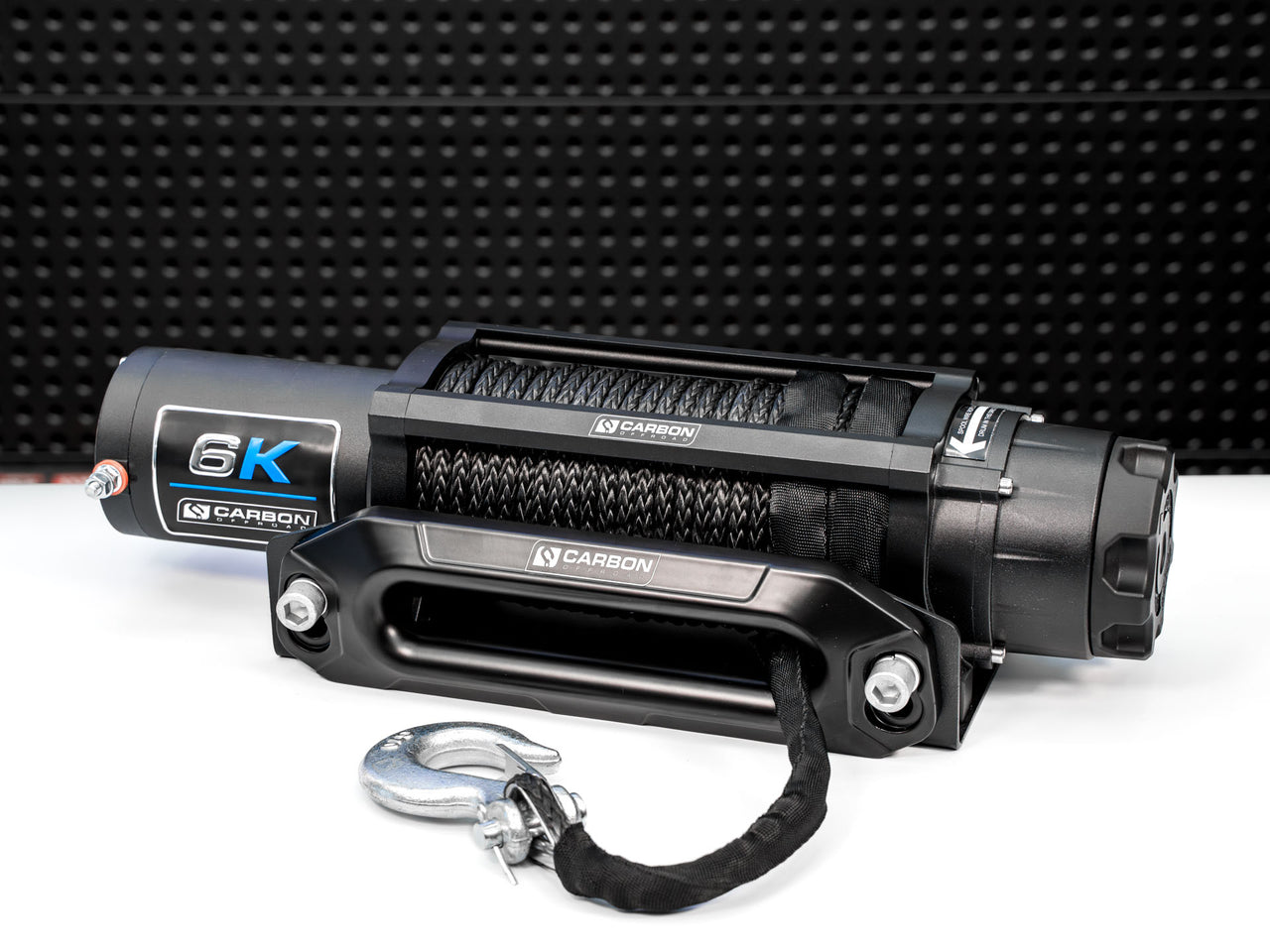

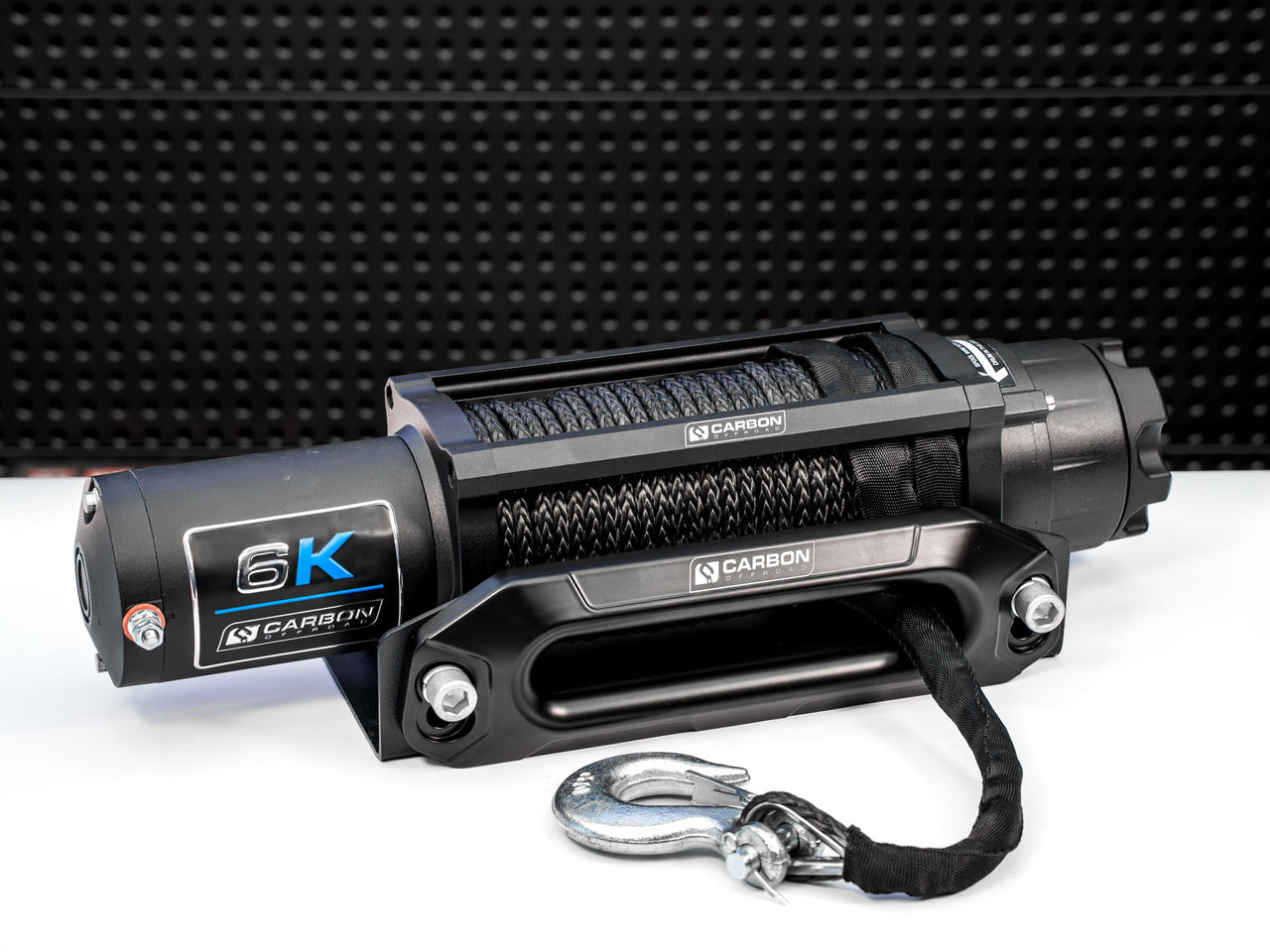

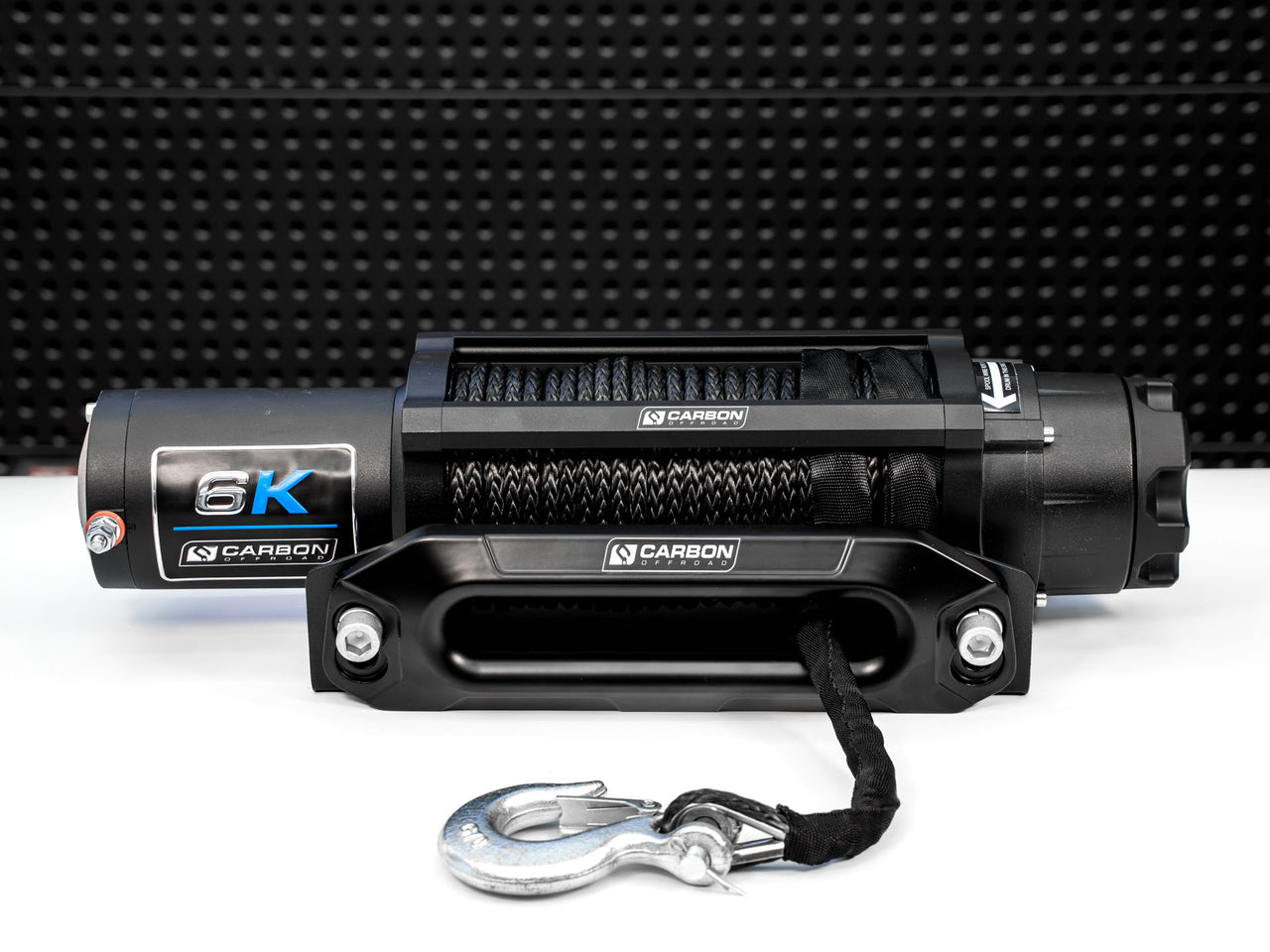

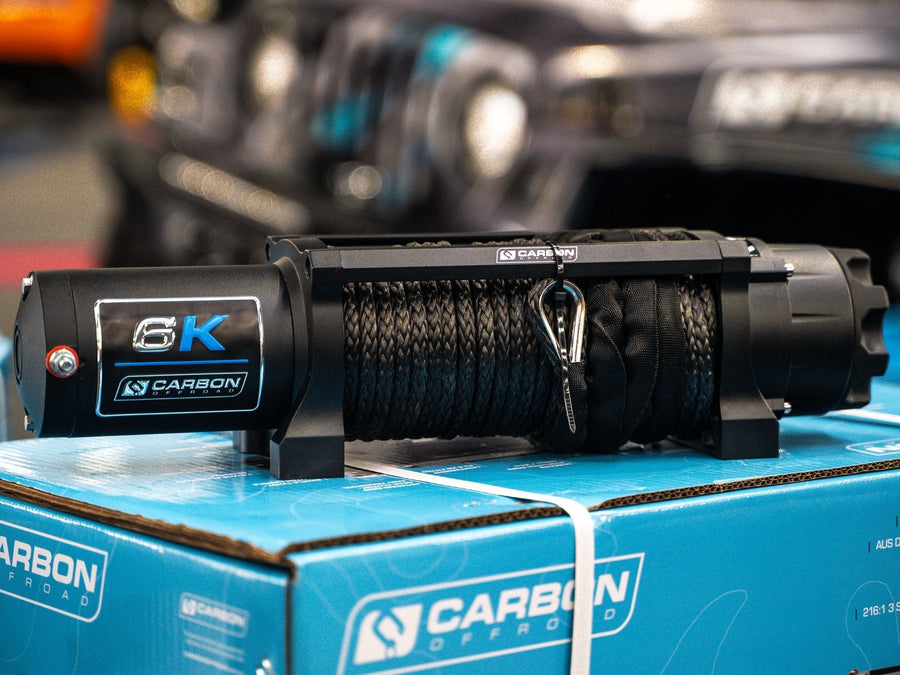

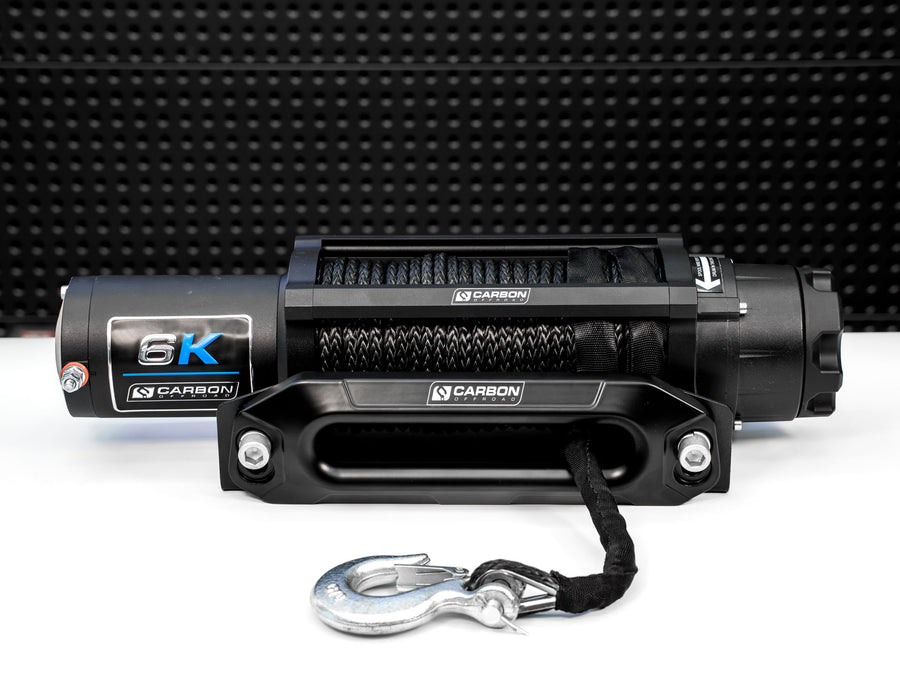

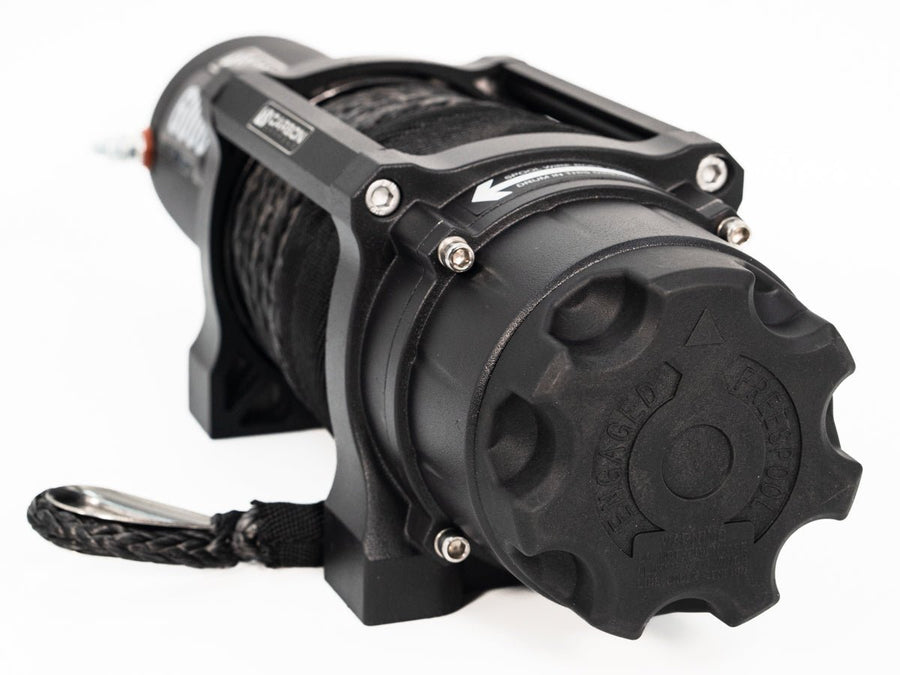

Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch

$399.00
Thumbnail for Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch Thumbnail for Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch

SKU: CW-XD6L

Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch

$399.00
LEFT IN STOCK

Quality Assured by Carbon Staff

Same Day Dispatch Order Before 2pm

Your Order Packed With Care

The Carbon Offroad Long Drum 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.

A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.

  • Sealed motor and geartrain allows for flawless operations in extreme conditions

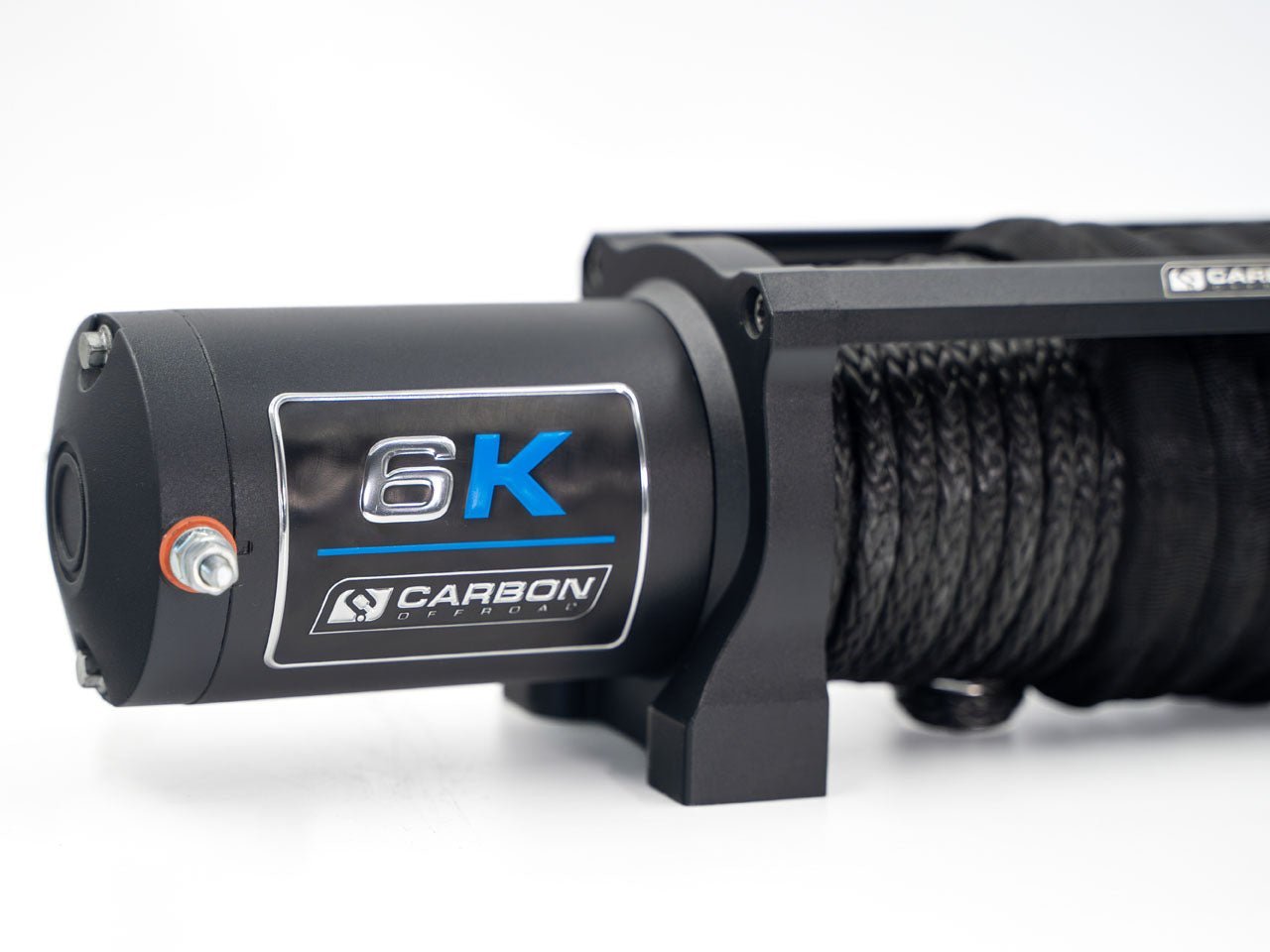

  • Permanent magnet motor provides heavy duty torque for increased pulling power
  • Cam action disengages gears for near silent free-spooling
  • Mechanical and dynamic brake offers increased control and prevents rollback
Technical Features Performance Specs Dimensions Warranty
  • Part number: CW-XD6L
  • Rated line pull: 6000 lbs, (2725kg) single-line
  • Motor: 12V DC 2.5 HP permanent magnet
  • Remote Control: Handlebar Mini-Rocker
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 147:1
  • Clutch: Roller disc full load automatic
  • Brake: Automatic brake in the motor bracket
  • Aluminium hawse
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty

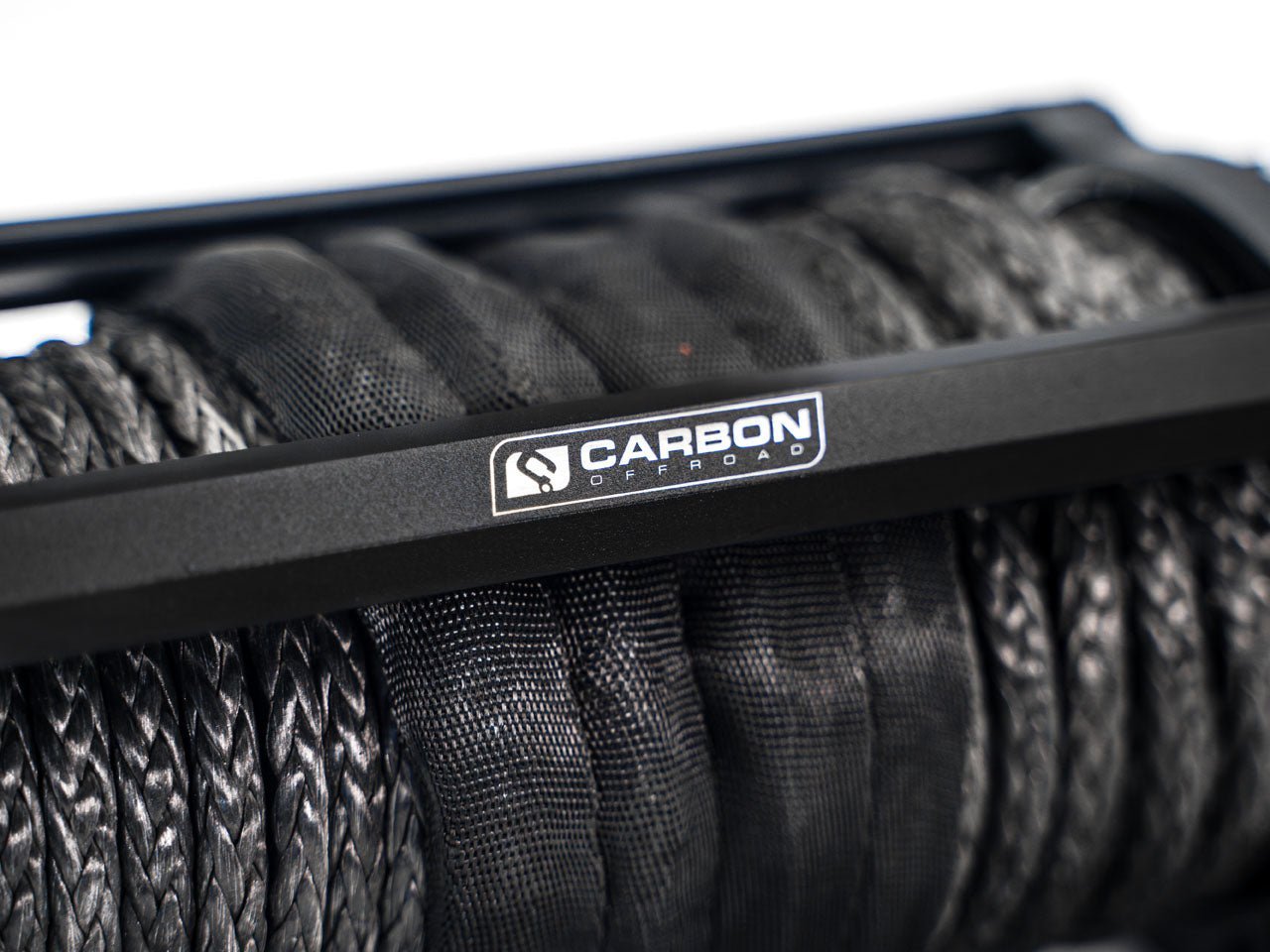

  • Synthetic Rope: 24m x 6.5mm diameter

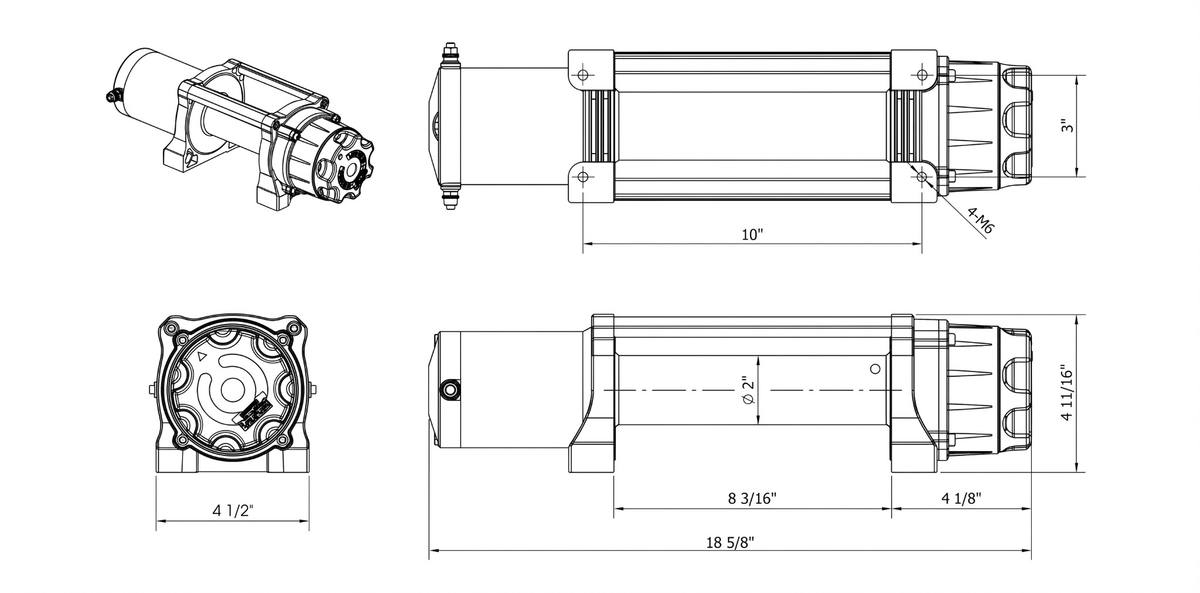

  • Drum Diameter/Length: 51mm x 208mm
  • Mounting Bolt Pattern: 254mm x 76mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 473 x 125 x 120mm
  • Packing Dimensions (L x W x H): 530 x 170 x 230mm
  • Winch weight with synthetic rope attached: 8.3kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
Performance Specs (First Layer of Drum)
**Performance Specs (First Layer of Drum)**
Line Pull (lbs (kg)) Line Speed (ft/min (m/min)) Motor Current (amps) Pull By Layer (layer/lbs (kg))
0 31.8 (12.8) 60 amps 1/10000 (4536)
2000 (907) 15.1 (4.6) 120 amps 2/8200 (3720)
4000 (1814) 12.8 (3.9) 190 amps 3/6840 (3103)
6000 (2722) 10.8 (3.3) 255 amps 4/5820 (2640)
8000 (3630) 9.2 (2.8) 320 amps
10000 (4536) 7.9 (2.4) 380 amps
