Compact and Versatile 6000lb Winch The Carbon Offroad 6000lb Winch is the perfect recovery and utility solution for ATVs, small 4WDs (like the Suzuki Jimny), caravans, trailers, and boats. Overview A small, compact winch with an integrated mounting plate makes installation as simple as it gets. Easily mount it to an existing pedestal on a trailer or into a winch location on a small-form-factor bull bar. With both wireless and wired remote controls included for free, it's a highly versatile setup. It is perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers. It is a great all-rounder winch to make work easier or to get you out of the bog. Features Extreme Durability: Sealed motor and geartrain (IP68 rated) allow for flawless operation in extreme, wet, and dusty conditions. Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for a massive 6000 lbs (2725kg) single-line rated pull. Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling. Secure Control: Mechanical and dynamic automatic braking inside the motor bracket offers increased control and reliably prevents rollback. Premium Rope Setup: Spooled with 16m of 6.5mm synthetic rope and routed through a sleek aluminium hawse fairlead. Contents 1 x Carbon Offroad 6000lb Winch (CW-XD6)1 x Synthetic Rope (16m x 6.5mm diameter)1 x Aluminium Hawse Fairlead1 x Handlebar Mini-Rocker Switch1 x Wireless Remote Control1 x Integrated Mounting Plate & Bolt Kit Note: The manual indicates that a circuit breaker is included; unfortunately, this is not the case. We apologize for any confusion.   Feature Specification Metric (Imperial) Part Number CW-XD6 Rated Line Pull 6000 lbs single-line Motor 12V DC 2.5 HP permanent magnet (24V available) Geartrain 3-Stage Planetary Gear Ratio 147:1 Clutch Roller disc full load automatic Brake Automatic brake in the motor bracket IP Rating IP68 for winch and solenoid (excludes remotes) Synthetic Rope 16m x 6.5mm (52.5 ft x 1/4") Drum Dimensions 51mm x 122mm (2.0" x 4.8") Mounting Bolt Pattern 167mm x 76mm (6.6" x 3.0") Recommended Battery 650 CCA minimum for winching Winch Dimensions (L x W x H) 385 x 115 x 119mm (15.2" x 4.5" x 4.7") Packing Dimensions (L x W x H) 530 x 170 x 230mm (20.9" x 6.7" x 9.1") Winch Weight (Bare) 8.3kg (18.3 lbs) with synthetic rope attached Total Kit Weight 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead Warranty Lifetime Mechanical / 5 Year Electrical   12V DC Performance Specs Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs) 0 13.8 (4.2) 15 1 / 6000 (2725) 2000 (907) 9.5 (2.9) 125 2 / 5350 (2430) 4000 (1814) 7.2 (2.2) 190 3 / 4780 (2170) 6000 (2722) 4.6 (1.4) 240 4 / 4270 (1940)

The Carbon Offroad Long Drum 6000lb ATV / Small 4x4 Winch is a nimble workhorse created to reach where short-drum winches can’t. Overview With 6,000 lbs of pulling capacity and a generous 26m (85.3 ft) synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired and wireless remotes, and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites and weekend getaways running smoothly. Features Extreme Durability: Sealed motor and geartrain (IP68 rated) allows for flawless operation in extreme, wet, and dusty conditions. Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for increased pulling power. Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling. Secure Control: Mechanical and dynamic automatic braking offers increased control and reliably prevents rollback. Extended Rope Reach: The long drum design accommodates an impressive 26m (85.3 ft) of synthetic rope, giving you more options in tricky recovery scenarios. Contents 1 x Carbon Offroad Long Drum 6000lb Winch (CW-XD6L)1 x Synthetic Rope (26m x 6.5mm diameter)1 x Aluminium Hawse Fairlead1 x Handlebar Mini-Rocker Switch1 x Wireless Remote Control1 x Control Box complete with cables & mounting bolts Note: Please note this kit does not include the winch cradle shown in the pictures.   Feature Specification Metric (Imperial) Part Number CW-XD6L Rated Line Pull 6000 lbs (2725 kg) single-line Motor 12V DC 2.5 HP permanent magnet Geartrain 3-Stage Planetary Gear Ratio 147:1 Clutch Roller disc full load automatic Brake Automatic brake in the motor bracket IP Rating IP68 for winch and solenoid (excludes remotes) Synthetic Rope 26m x 6.5mm (85.3 ft x 1/4") Drum Dimensions 51mm x 208mm (2.0" x 8.2") Mounting Bolt Pattern 254mm x 76mm (10.0" x 3.0") Recommended Battery 650 CCA minimum for winching Winch Dimensions (L x W x H) 473 x 125 x 120mm (18.6" x 4.9" x 4.7") Packing Dimensions (L x W x H) 530 x 170 x 230mm (20.9" x 6.7" x 9.1") Winch Weight (Bare) 8.3kg (18.3 lbs) with synthetic rope attached Total Kit Weight 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead Warranty Lifetime Mechanical / 5 Year Electrical   12V DC Performance Specs Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs) 0 13.8 (4.2) 15 1 / 6000 (2725) 2000 (907) 9.5 (2.9) 125 2 / 5350 (2430) 4000 (1814) 7.2 (2.2) 190 3 / 4780 (2170) 6000 (2722) 4.6 (1.4) 240 4 / 4270 (1940)

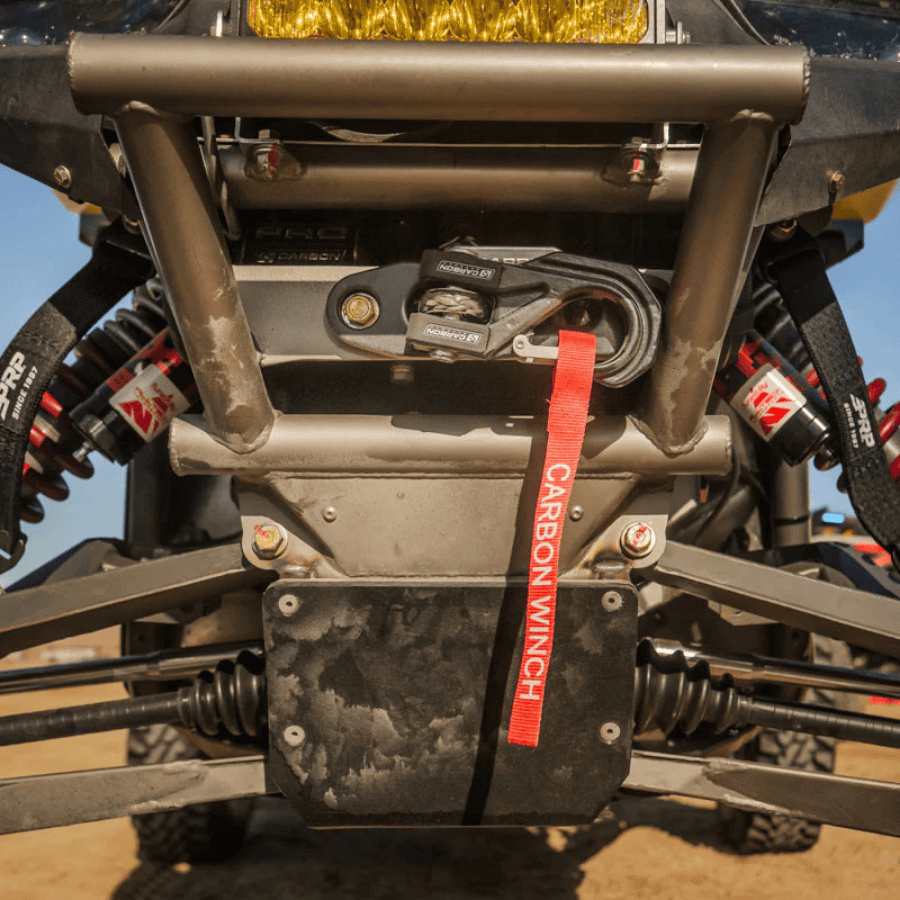

Compact, Powerful, and Versatile Winch Upgrade your off-road adventures and heavy-duty tasks with the Carbon Offroad 4,500 lb Capacity Winch, specifically designed for ATVs, UTVs, side-by-sides, car trailers, and equipment transport. Overview This rugged, compact, and high-performance winch is a must-have for anyone looking to tackle tough terrains or simplify heavy lifting. Since September 2021, this winch has been redesigned for superior durability and ease of use, featuring improved clutch handle operation for smoother control, enhanced sealing for wet and rugged conditions, and upgraded components for long-lasting performance. It comes standard with an integrated mounting plate for quick and simple installation, easily securing to an existing pedestal or designated winch mount on your trailer, ATV, or buggy. It is ideal for loading heavy equipment into vans, retrieving stuck ATVs, pulling boats onto trailers, and even opening cattle gates on livestock trucks. Features Reliable Pulling Power: Features a 4,500 lb single-line pull driven by a highly efficient, sealed 12V DC 1.9 HP permanent magnet motor. Maximum Convenience: Includes both a free wireless remote control for effortless operation and a handlebar mini-rocker switch for direct, hands-on control from your ATV. Heavy-Duty Geartrain: Equipped with a full metal 3-stage planetary gear train (176:1 ratio) for greater pulling force, reinforced by tie bars for ultimate stability. Power In & Out: Offers reliable power in and out operation supported by dynamic and mechanical load-holding braking. Premium Synthetic Setup: Spooled with high-strength, lightweight synthetic rope and paired with a sleek CNC billet alloy black anodised Hawse fairlead to reduce friction. Contents 1 x Carbon CW-45 4500lb Winch1 x Synthetic Rope (43 ft x 1/4" / 13m x 6.35mm)1 x CNC Billet Alloy Black Anodised Fairlead1 x Handlebar Mini-Rocker Switch1 x Wireless Remote Control1 x Integrated Mounting Plate & Hardware Set   Feature Specification Metric (Imperial) Model CW-45 Rated Line Pull 4,500 lbs (2,040 kg) single-line Motor 12V DC, 1.9 HP permanent magnet motor Geartrain 3-Stage Planetary (176:1 ratio) Brake System Dynamic & Mechanical Synthetic Rope 13m x 6.35mm (43' x 1/4") Fairlead CNC billet alloy black anodised Mounting Bolt Pattern 76mm x 167mm (3.0" x 6.59") Winch Dimensions (L x W x H) 379mm x 120mm x 115mm (14.9" x 4.7" x 4.5") Shipping Weight 12.2 kg (26.9 lbs)   12V DC Performance Specs Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs) 0 20.4 (6.2) 31 1 / 4500 (2040) 1000 (454) 14.2 (4.3) 65 2 / 3750 (1700) 2000 (907) 10.9 (3.3) 96 3 / 3510 (1595) 3000 (1360) 7.7 (2.4) 125 4 / 3300 (1500) 4500 (2040) 4.9 (1.5) 175 -
