CW-RS9-BLK
$1,399.00
Shipping calculated at checkout.
Fast Dispatch
Ships from Utah
Expert Product Support
Secure Checkout
Quantity

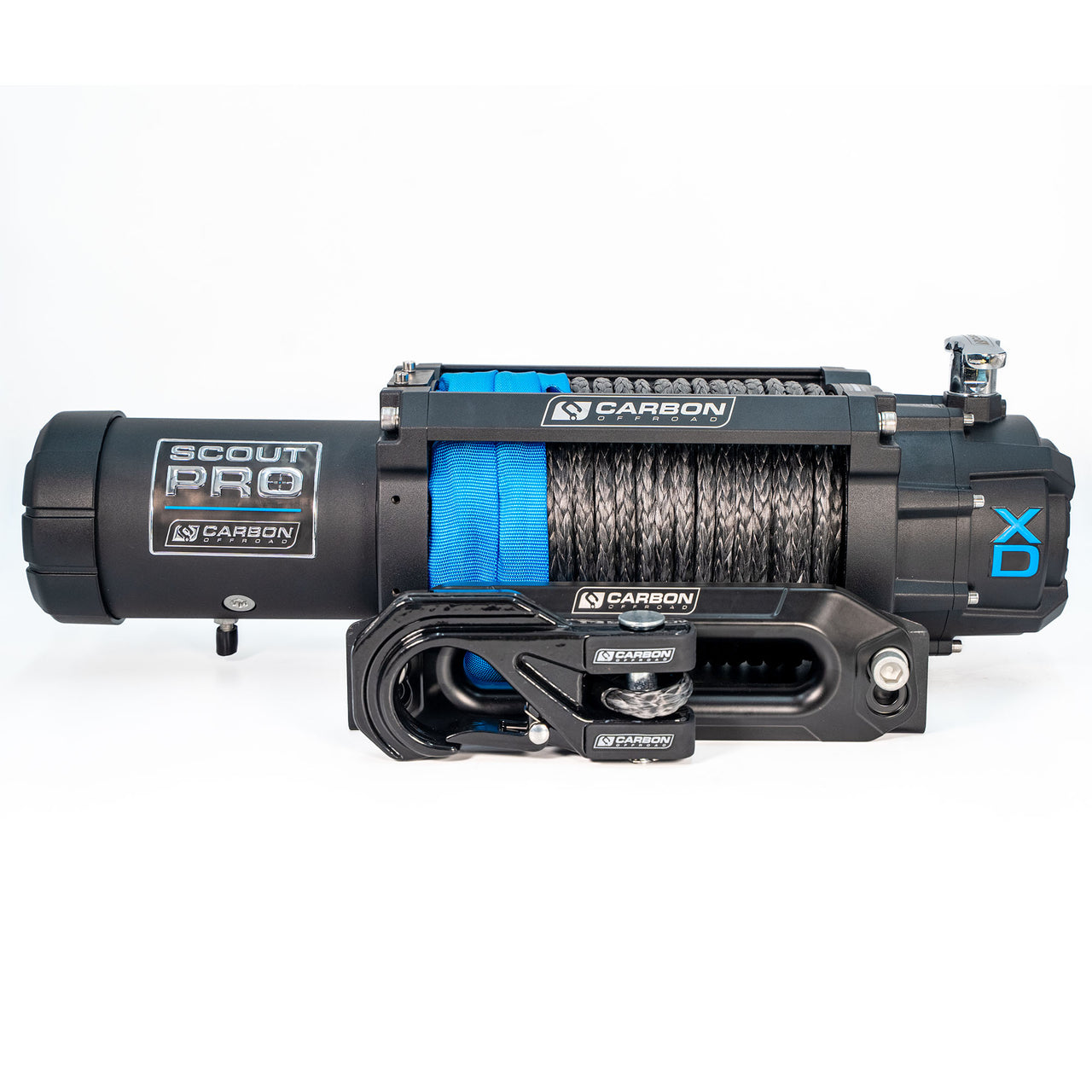

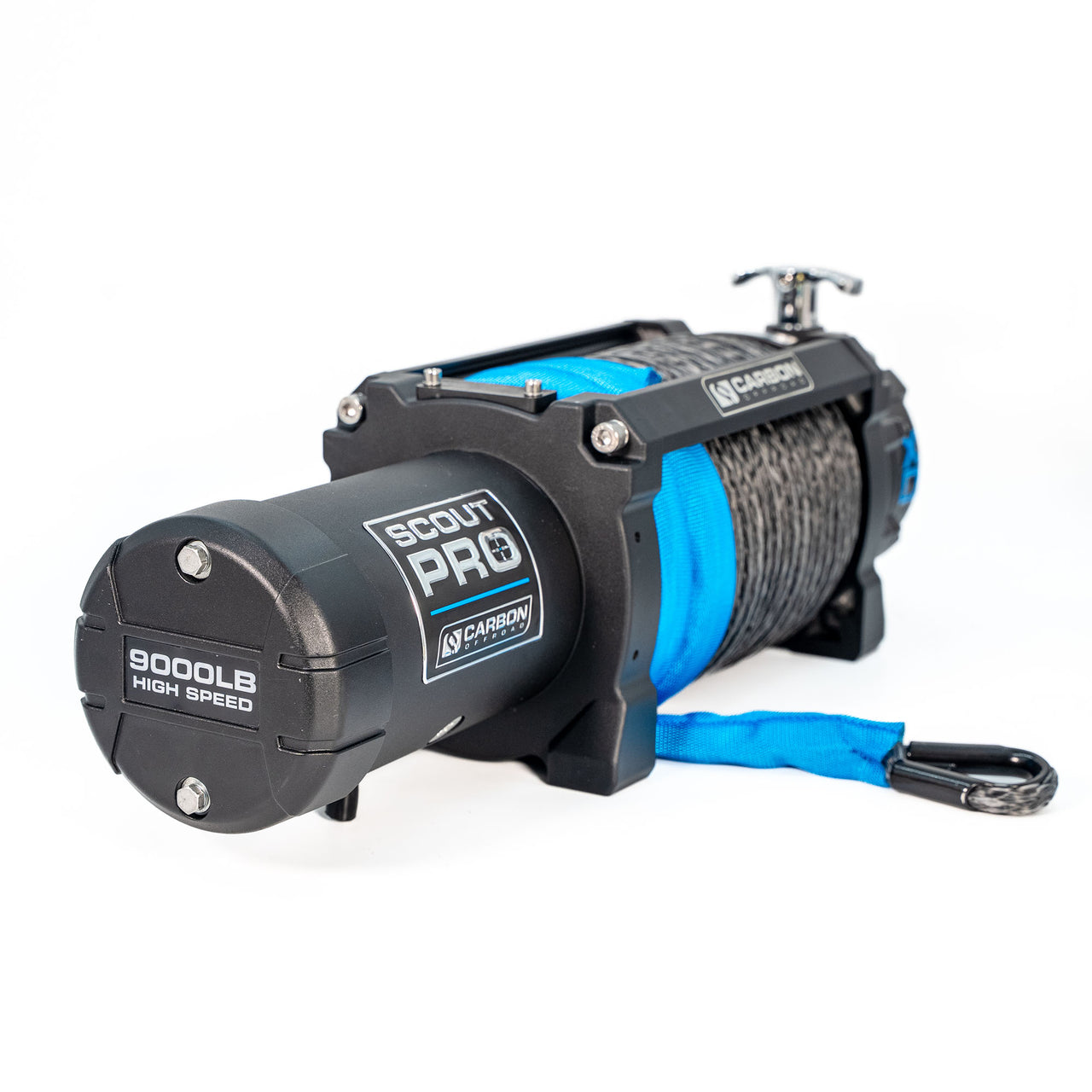

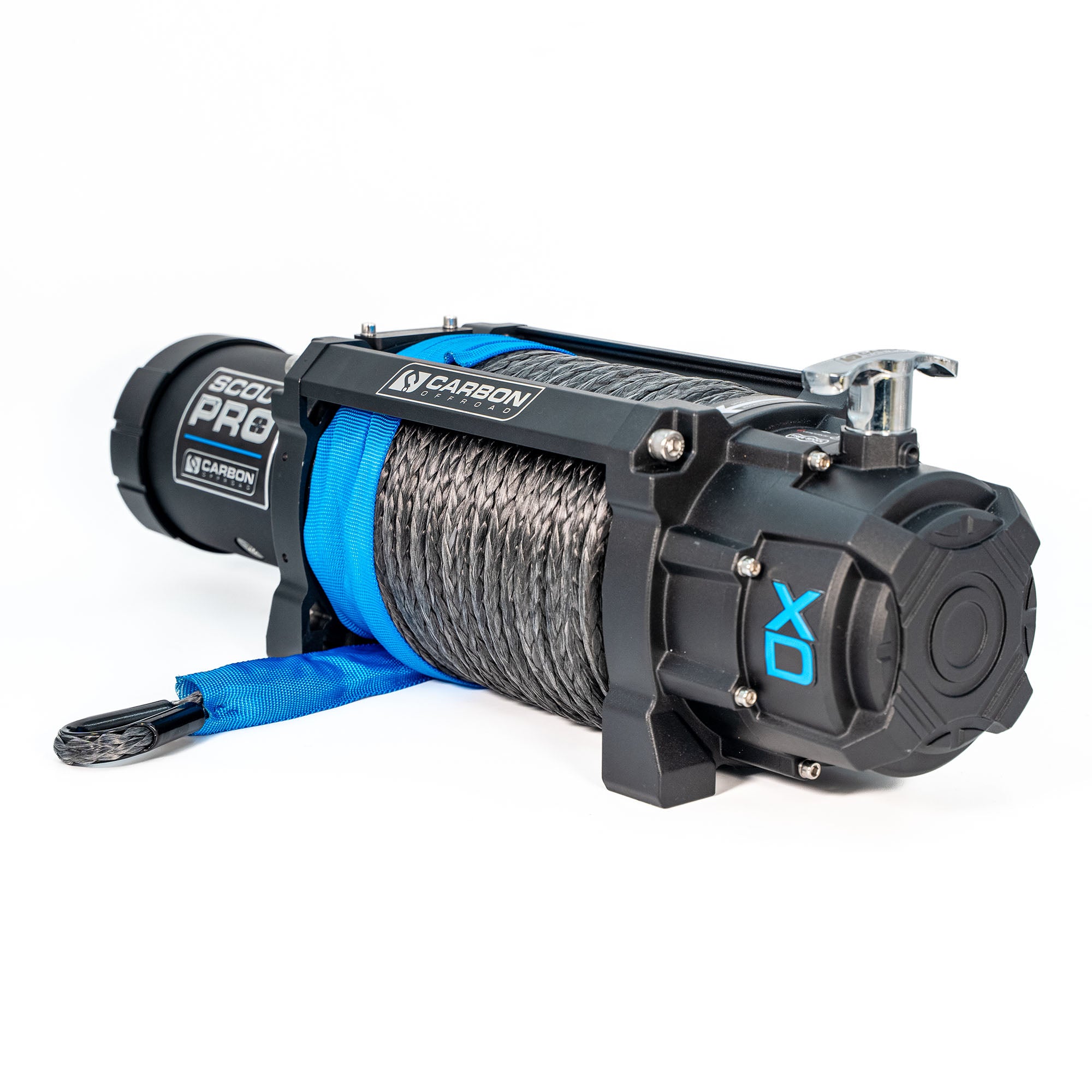

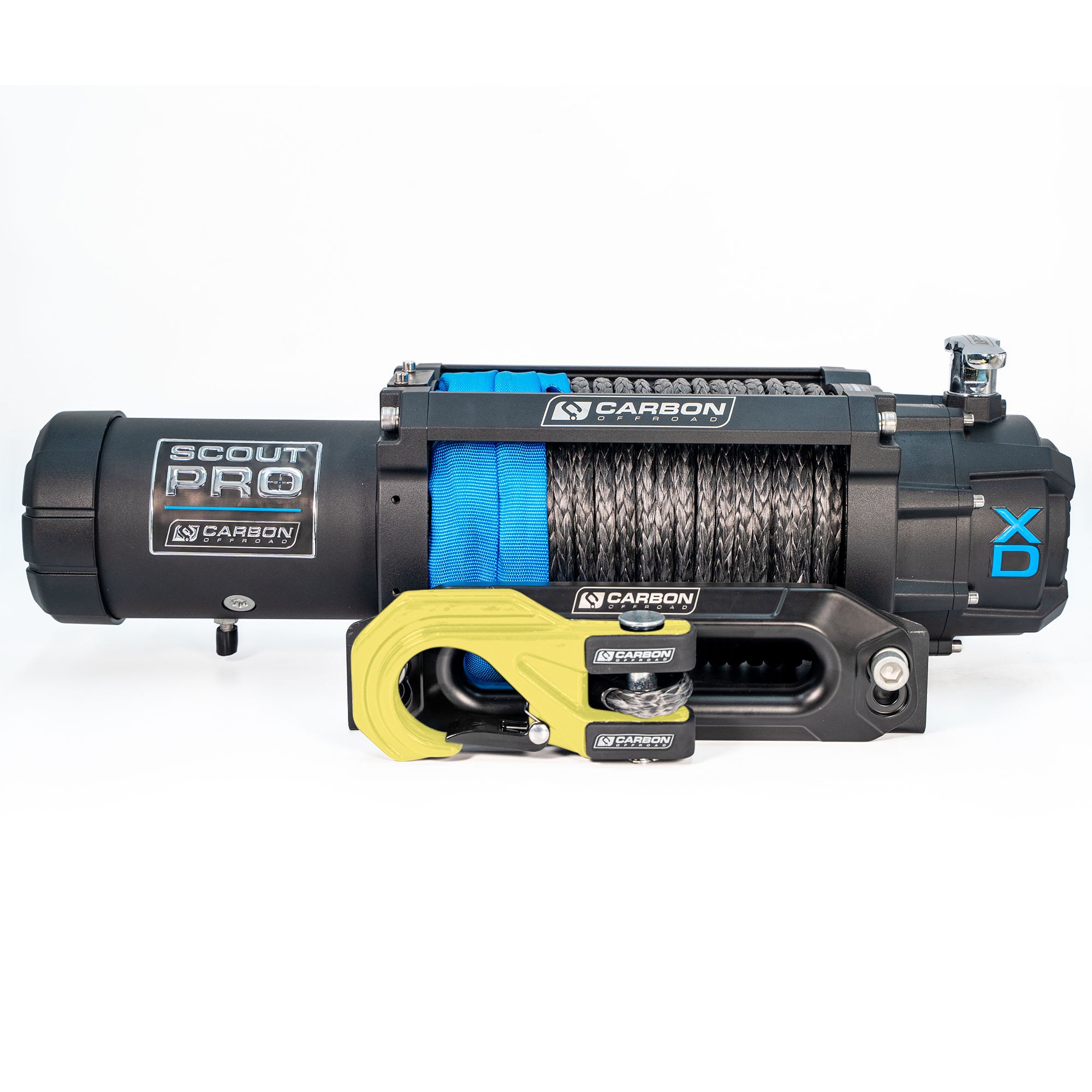

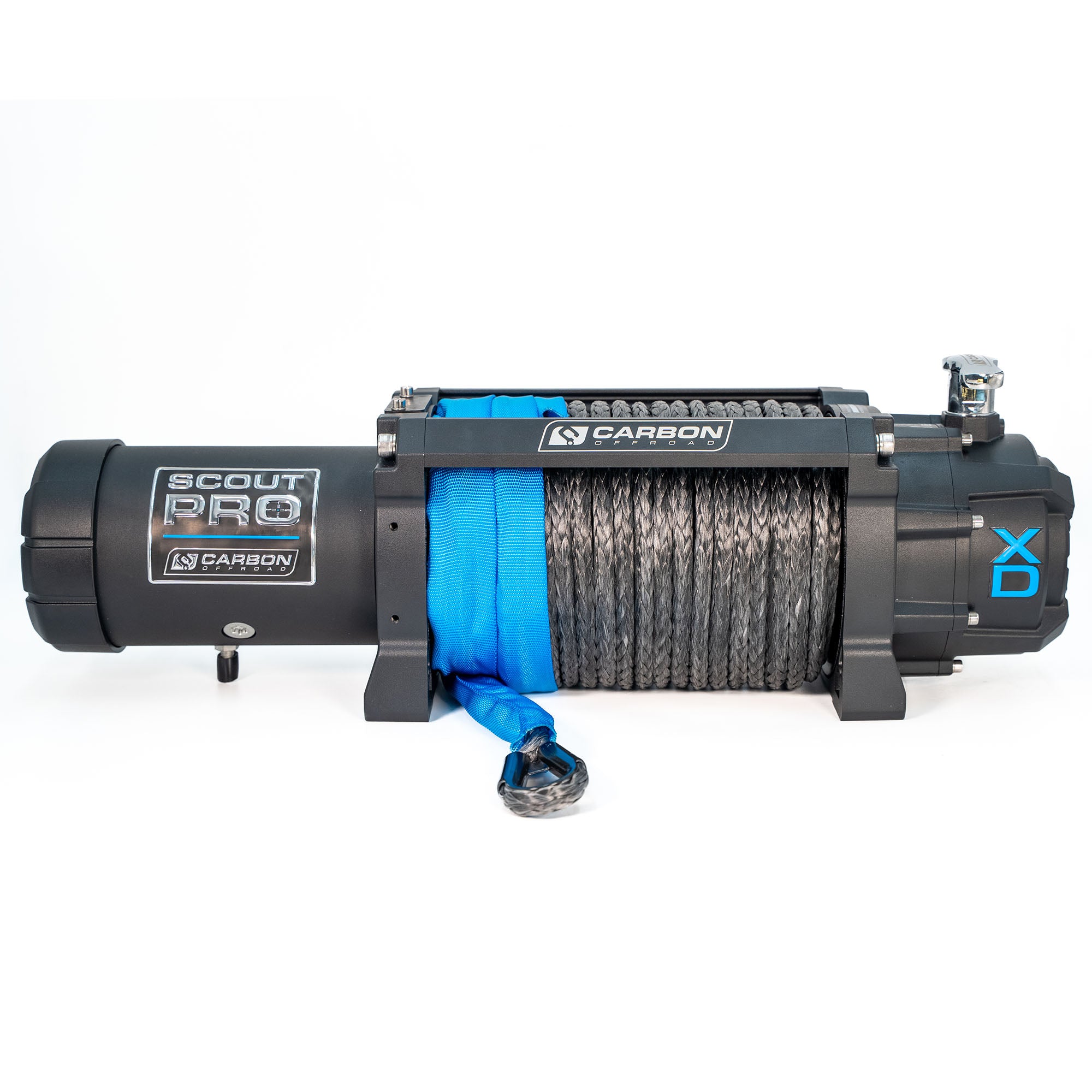

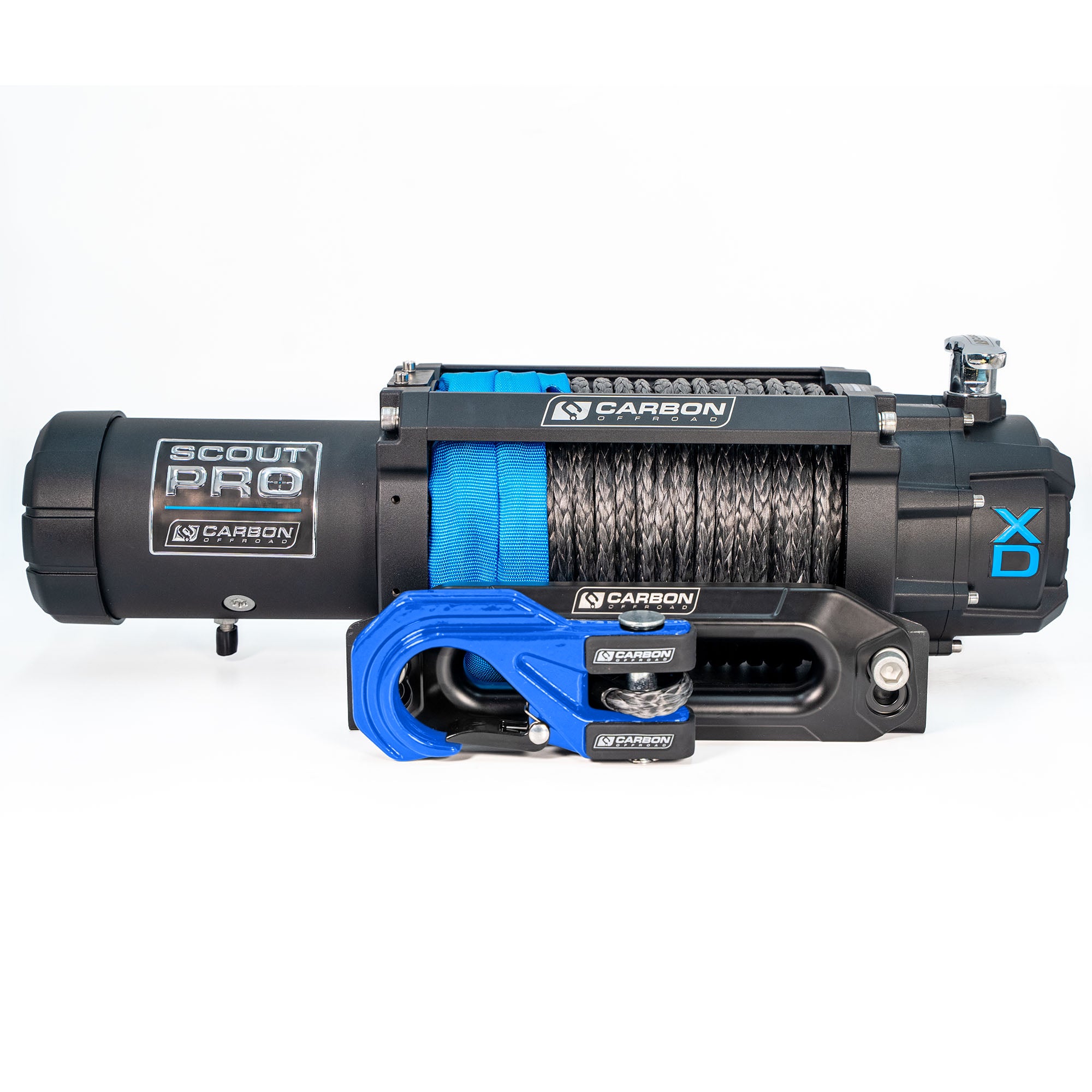

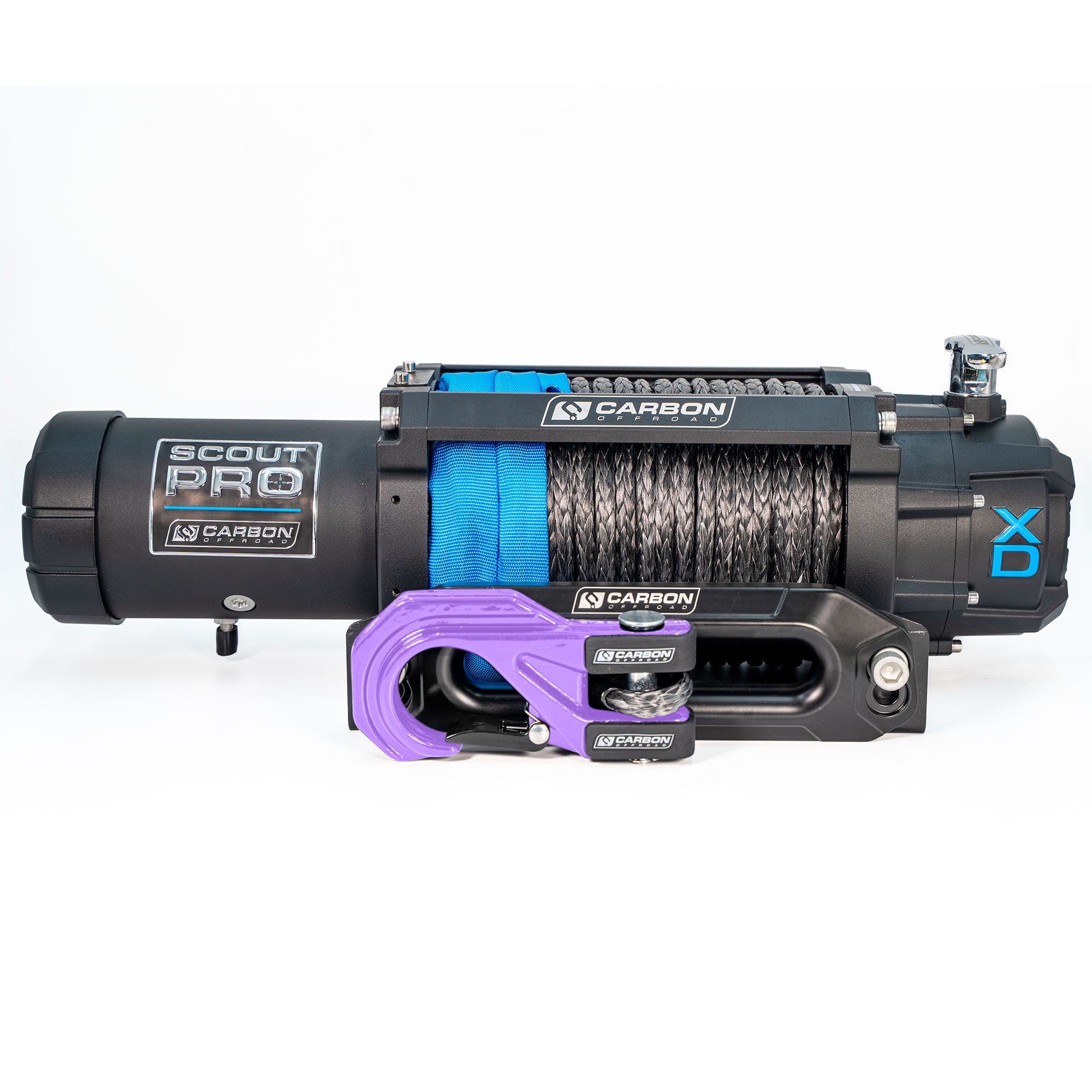

Carbon Offroad - RS9 9000lb Winch
BLACK
$1,399.00
Built for Speed
The Carbon Offroad RS9 High Speed Winch Kit features an 8.0HP series-wound motor and a performance-tuned 80:1 gear ratio for unmatched recovery speed.
The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you're looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class. The bottom line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
The RS Series Breakdown
- High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load.
- Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance.

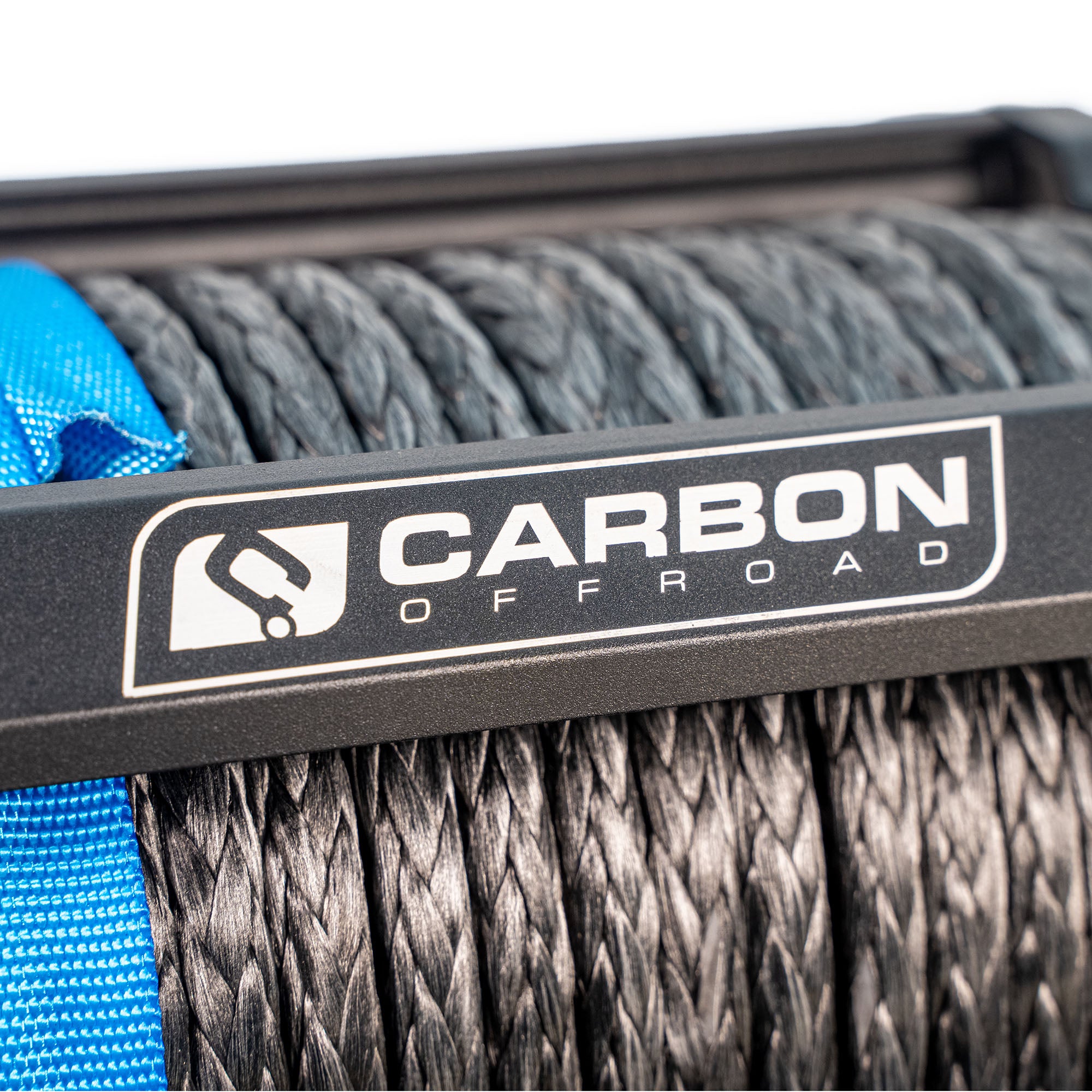

- Line Capacity: Comes standard with 42m (137ft) of 8mm (5/16") Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions.

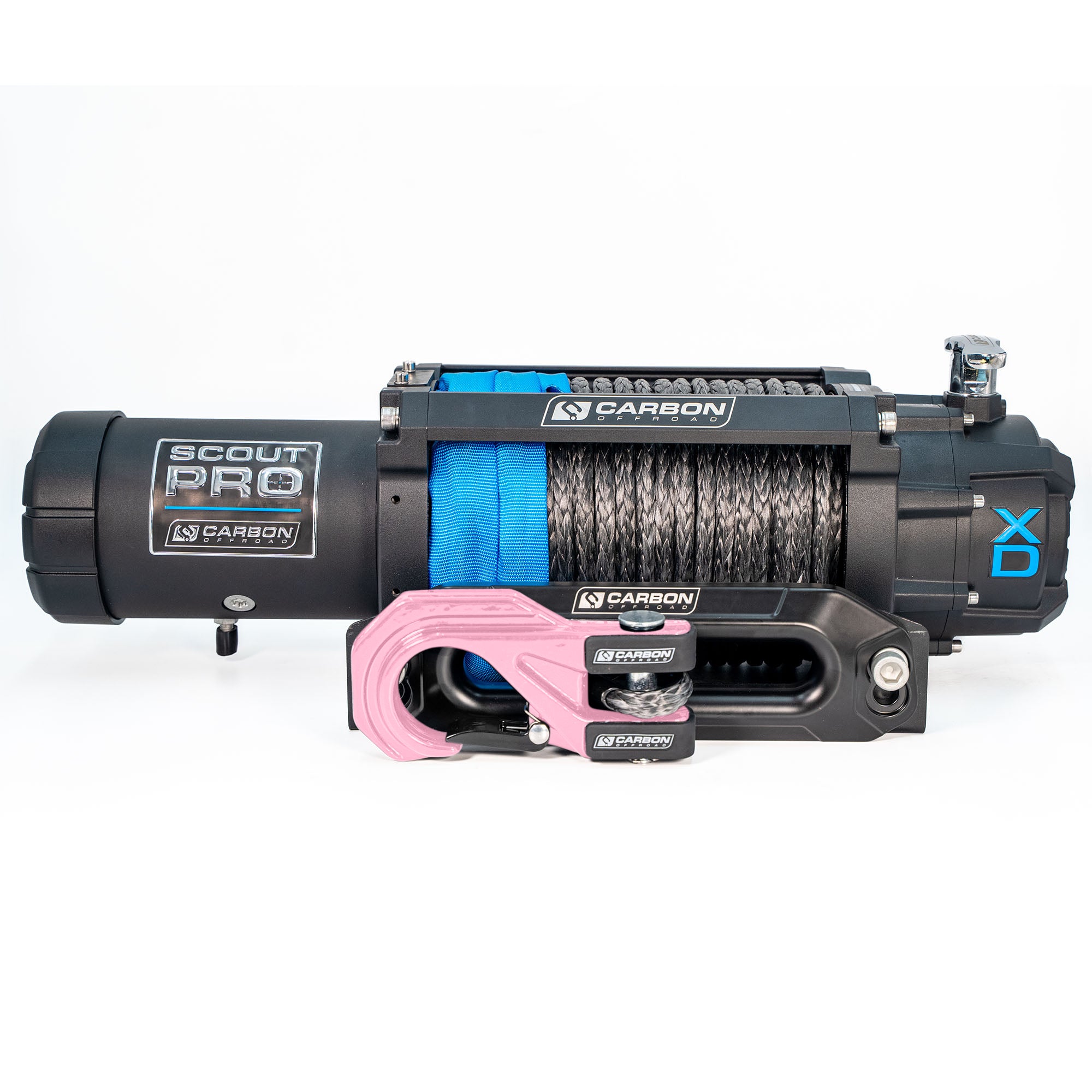

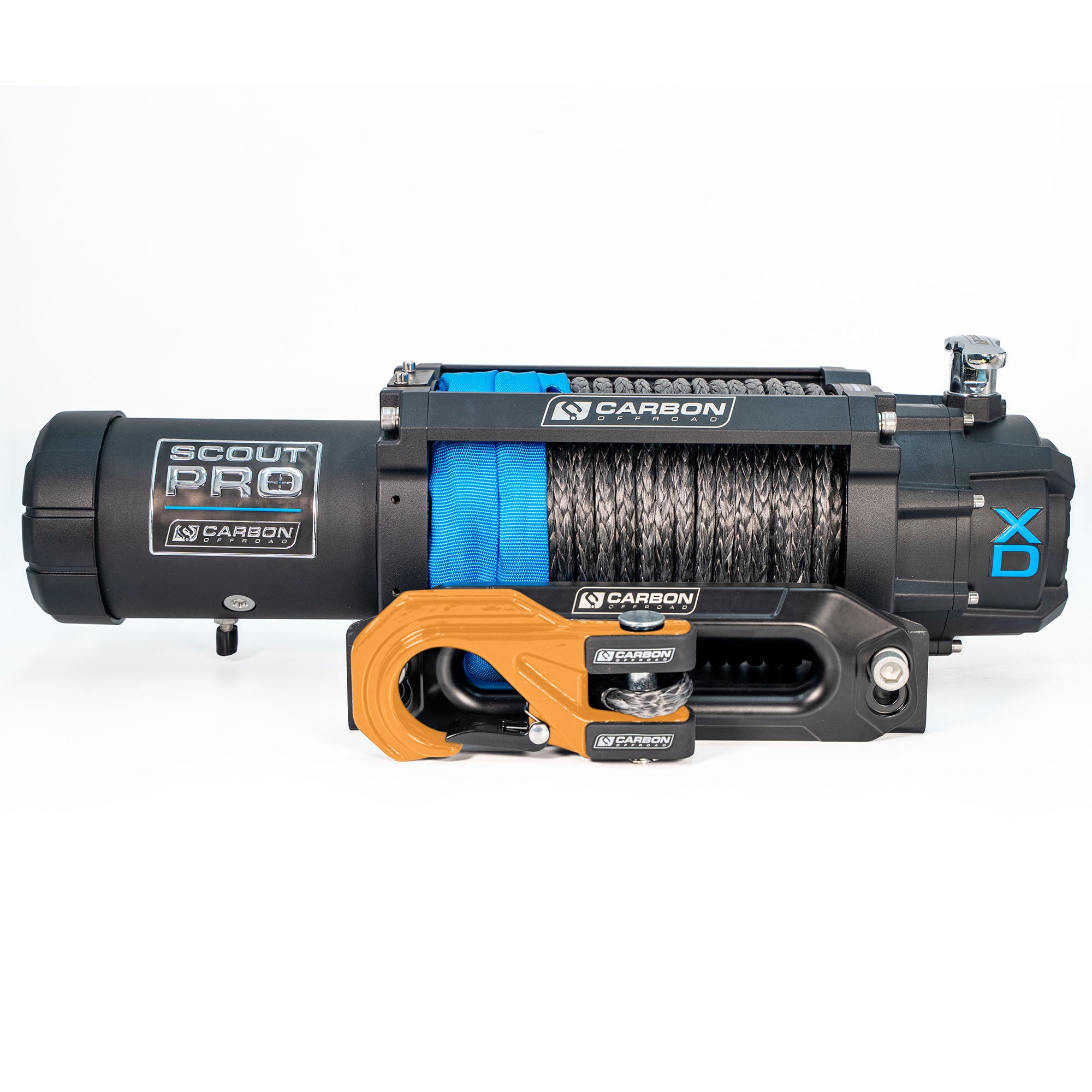

- Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment.
Contents
1 x Carbon Offroad RS9 Winch
1 x 42m (137ft) Spectra™ Fiber Synthetic Rope
1 x MegaPro Hook

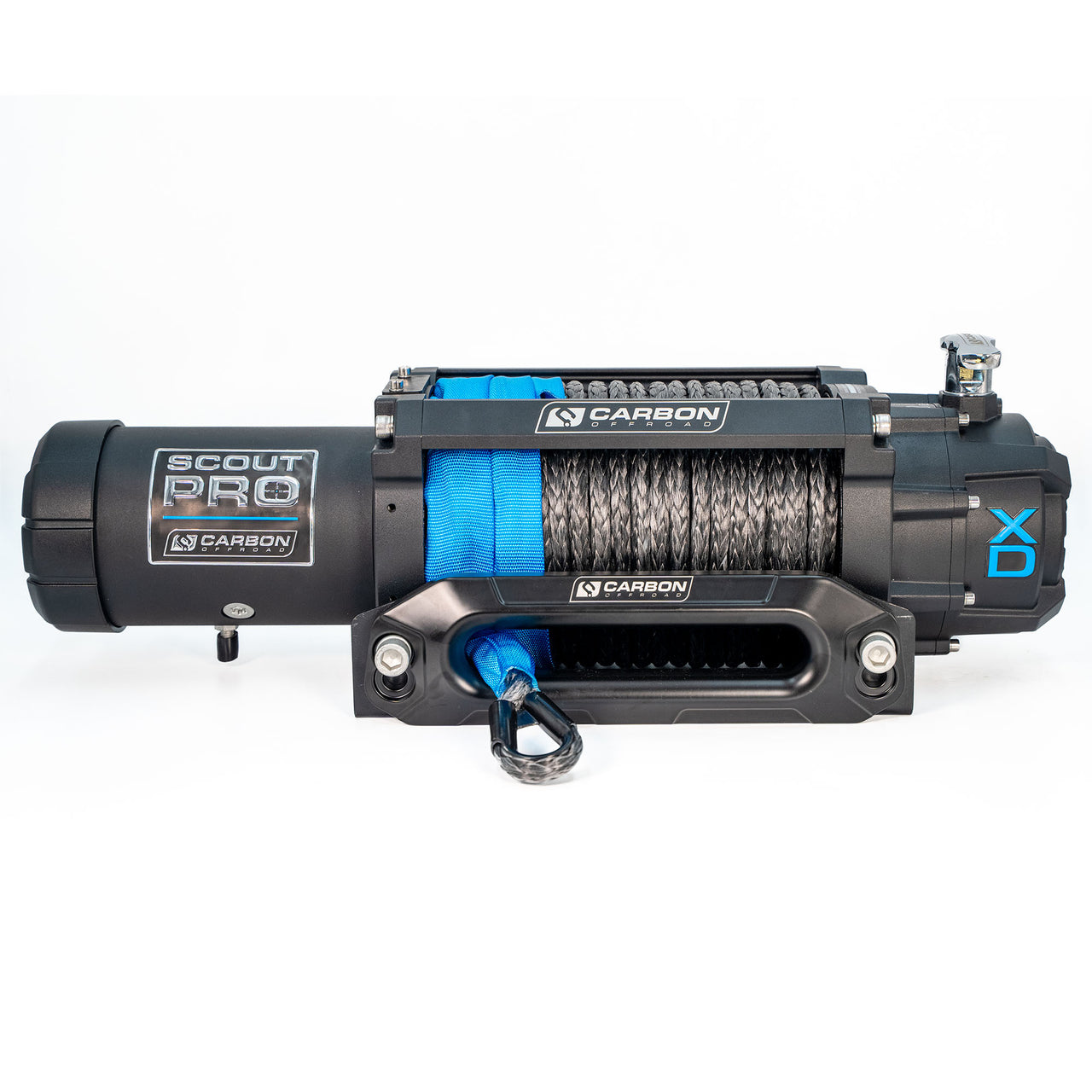

1 x Fairlead
1 x Wiring Accessory Kit.
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 4080kg (9000lbs) |
| Motor | 8.0HP 12V Series-Wound |

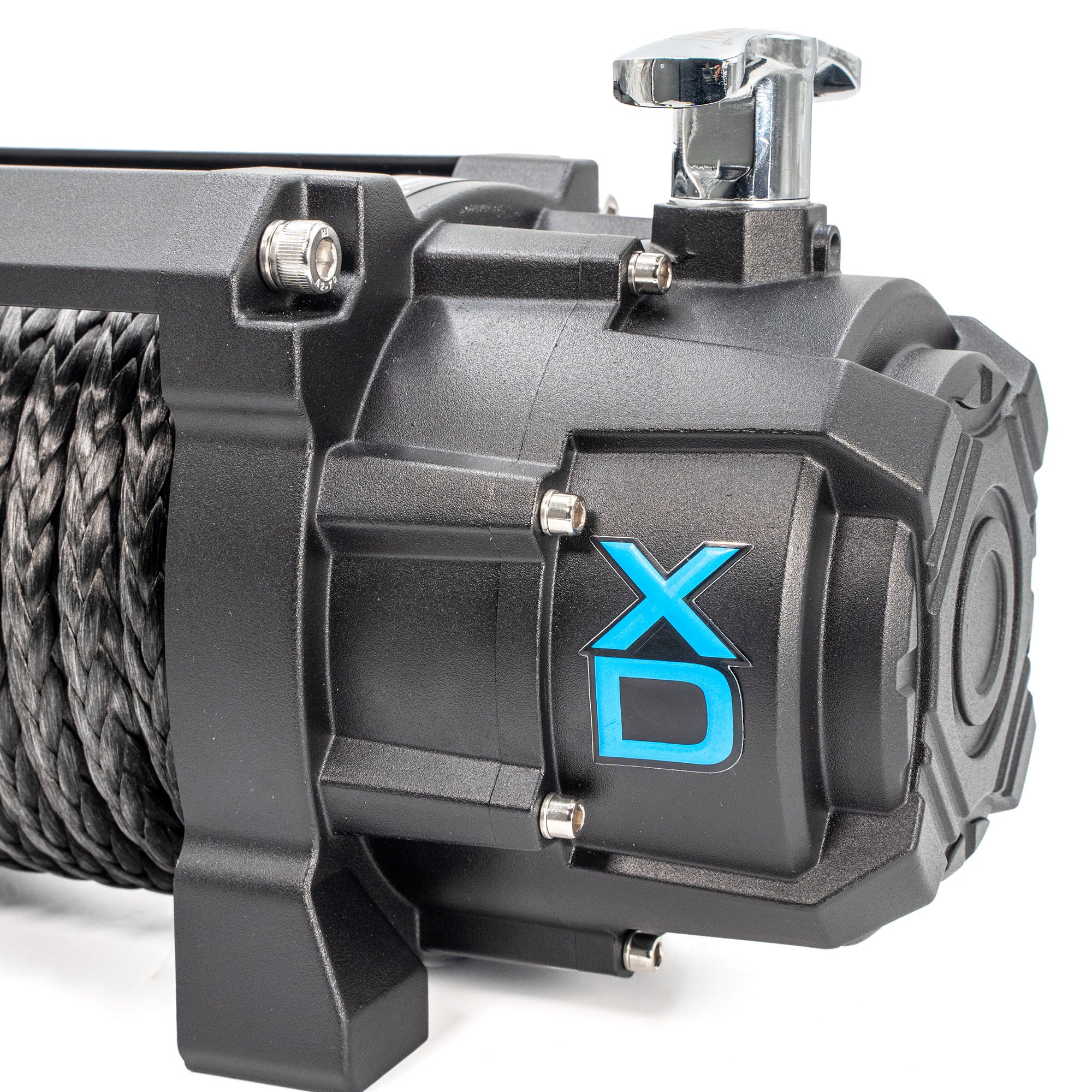

| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 42m (5/16" x 137ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |

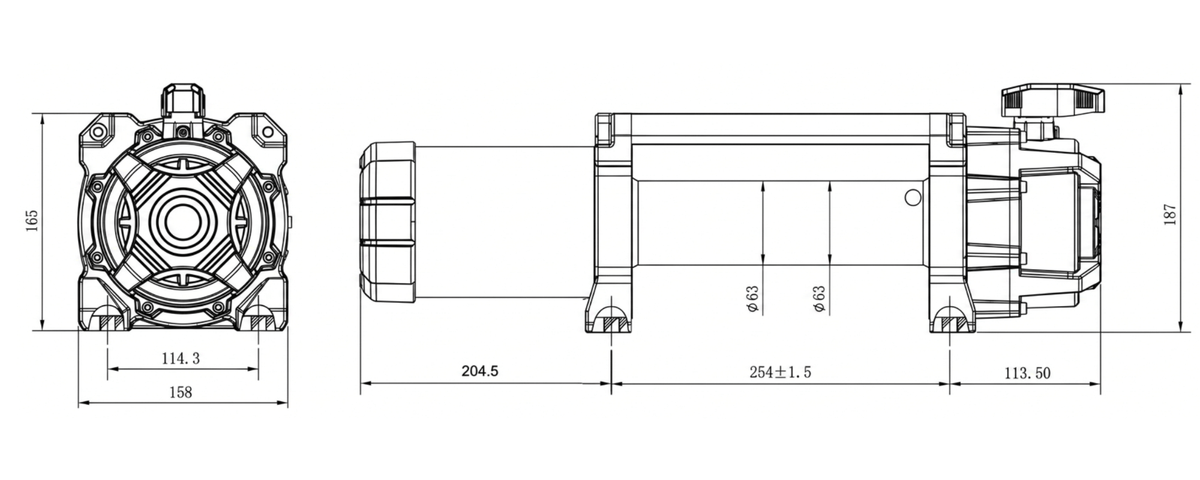

| Winch Dimensions (L x W x H) | 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") |
| Drum Dimensions (Diameter x Length) | 63mm x 224mm (2.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
| Chassis | Carbon Offroad Version 3 (V3) |
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current |
|---|---|---|
| 0kg (0lbs) | 24.2m/min (79.4fpm) | 55A |
| 1816kg (4000lbs) | 5.6m/min (18.4fpm) | 180A |
| 3180kg (7000lbs) | 4.2m/min (13.8fpm) | 310A |
| 4090kg (9000lbs) | 2.6m/min (8.5fpm) | 440A |
| Layer | Rated Line Pull Metric (Imperial) |
|---|---|
| 1 | 4090kg (9000lbs) |
| 2 | 3524kg (7760lbs) |
| 3 | 3040kg (6690lbs) |
| 4 | 2615kg (5760lbs) |
Speed & Performance Breakdown
12V DC Performance Specs
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current | Rated Line Pull Position Metric (Imperial) |
|---|---|---|---|
| 0kg (0lbs) | 24.2m/min (79.4fpm) | 55A | 1 / 4090kg (9000lbs) |
| 1816kg (4000lbs) | 5.6m/min (18.4fpm) | 180A | 2 / 3524kg (7760lbs) |
| 3180kg (7000lbs) | 4.2m/min (13.8fpm) | 310A | 3 / 3040kg (6690lbs) |
| 4090kg (9000lbs) | 2.6m/min (8.5fpm) | 440A | 4 / 2615kg (5760lbs) |
