Got a bar rated to 10K? Stay within spec and retain your warranty with the Carbon Scout Pro XD10.

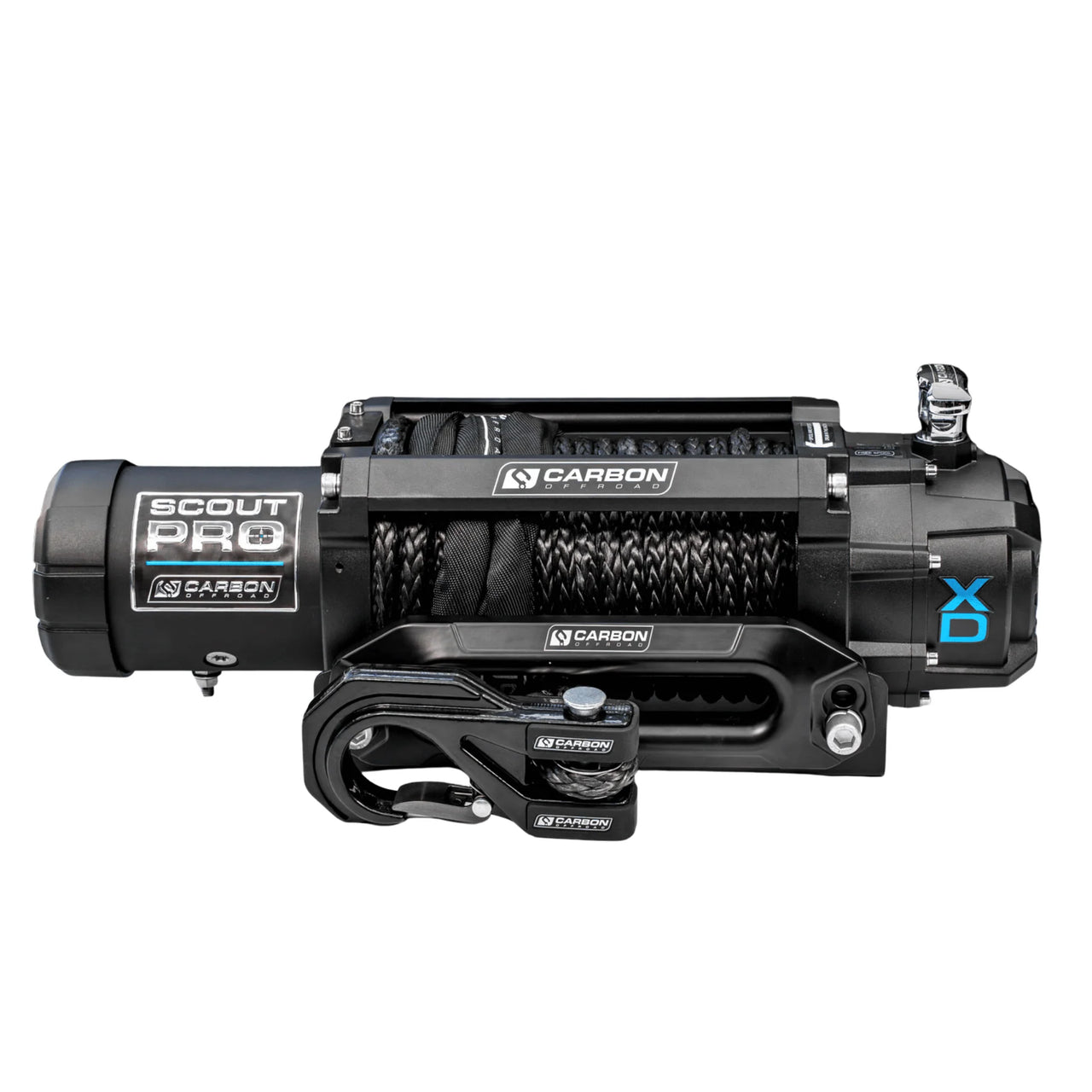

The Carbon Offroad Scout Pro XD10 is a 12V electric recovery winch rated at 10,000 lb, designed for regular off-road recovery work. Part of the Scout Pro Extreme Duty Performance Series, it is intended for vehicles operating in harsh Australian conditions where faster line speed and controlled recovery are required.
The Scout Pro 10K is designed for vehicles with bars rated to 10,000 lb, keeping recovery loads within specification while delivering increased line speed for efficient recoveries.
Features
• 10,000 lb (4,536 kg) rated electric winch
• 12V DC operation
• 6 HP series-wound electric motor
• 180:1 gear ratio
• Rotating ring gear clutch

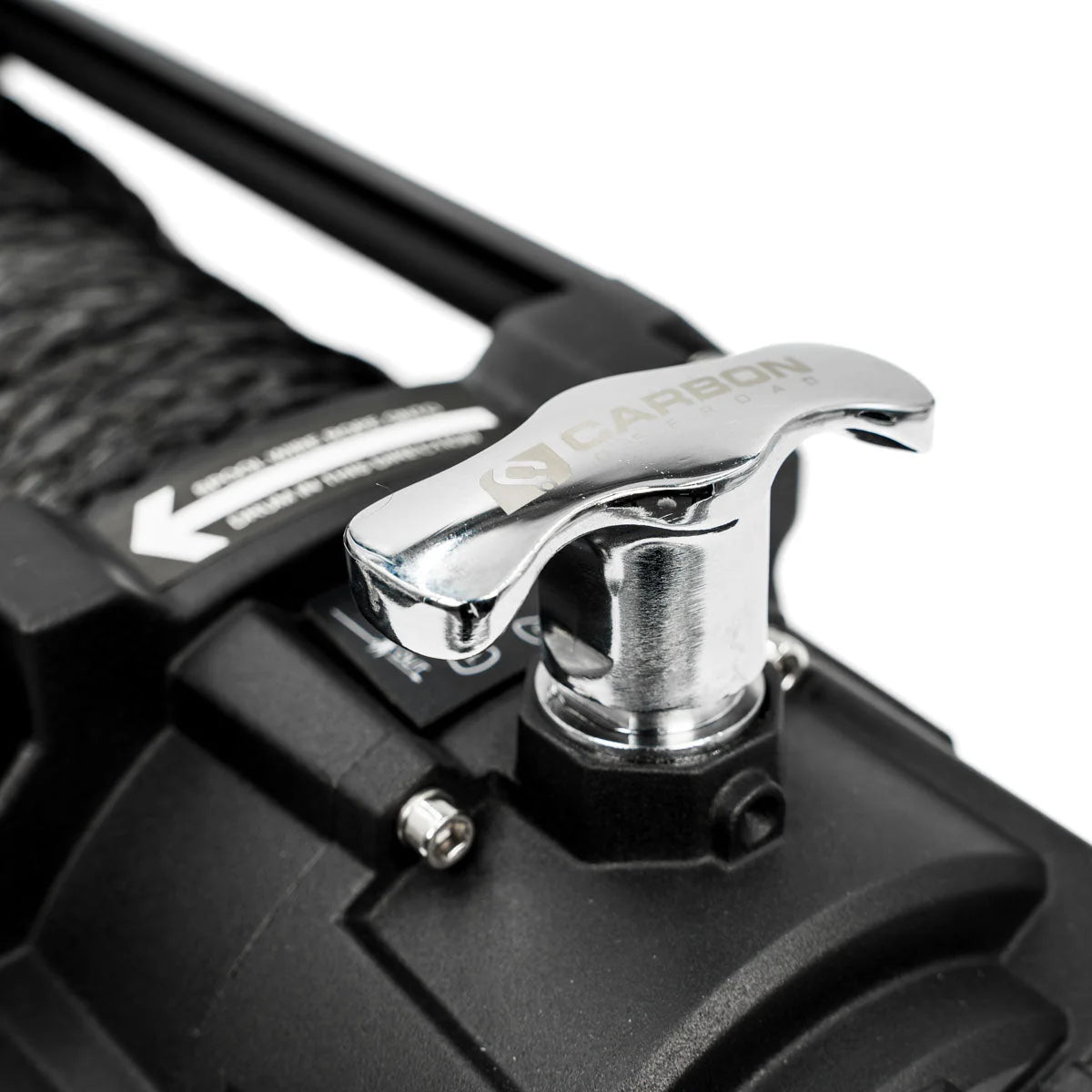

• Chrome freespool clutch handle with etched Carbon Offroad logo

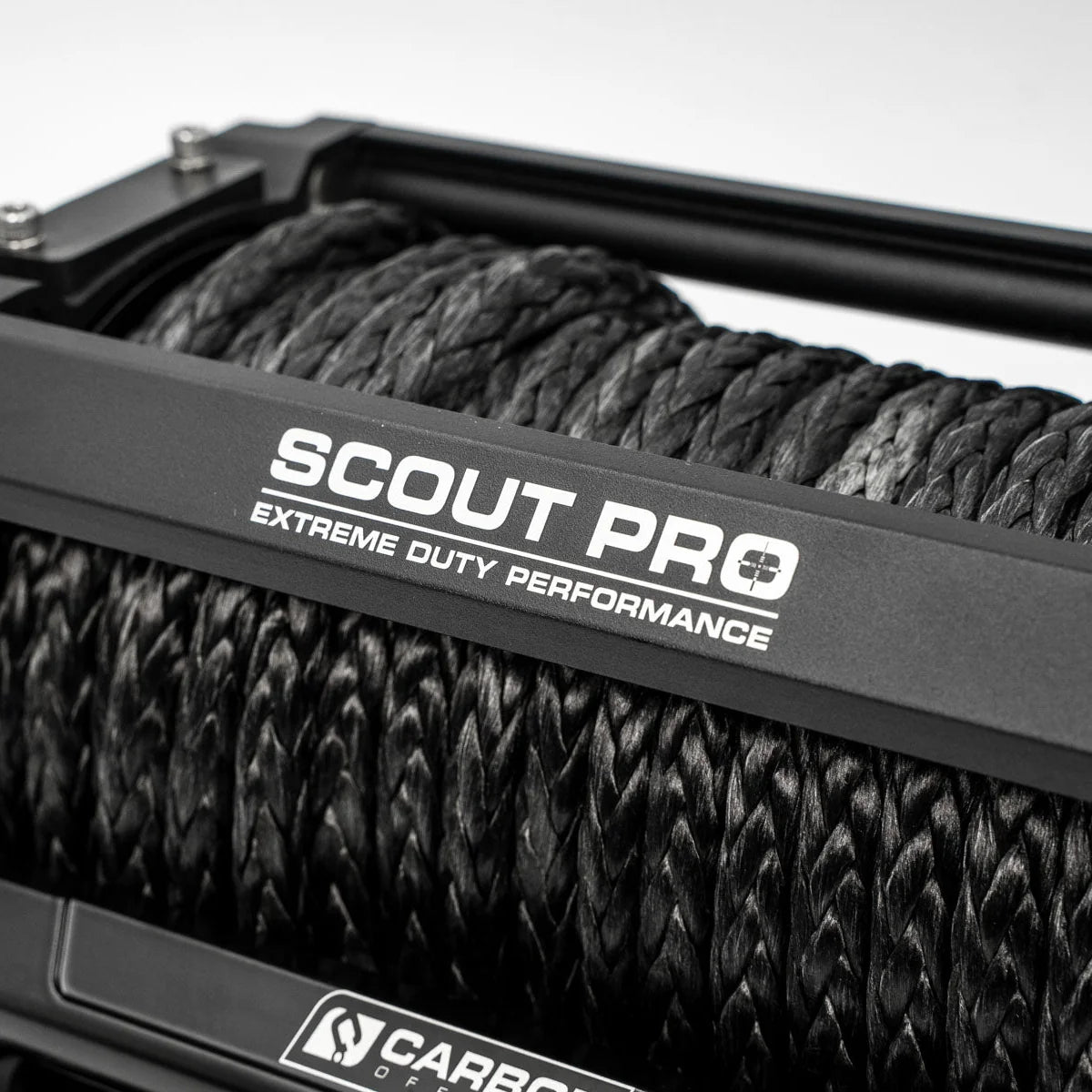

• Synthetic UHMWPE rope fitted (10 mm x 24 m)
• Checker-knurled winch drum
• Matte black powder coat finish
• 316 stainless steel bolts, nuts, spring washers, and flat washers
• IP68 rated dustproof and waterproof construction
• Scout Pro Extreme Duty Performance Series construction
• Supplied CNC aluminium fairlead
Specifications
-
Rated Pull: 10,000 lb (4,536 kg)
-
Motor: 6 HP series-wound
-
Gear Ratio: 180:1
-
Rope: 78 ft (24 m) synthetic UHMWPE
-
Mounting Bolt Pattern: 10 in x 4.5 in (254 mm x 114.3 mm)
-
Drum Dimensions: 2.50 in x 8.82 in (63.5 mm x 224 mm)
-
Winch Dimensions: 21.1 in x 6.2 in x 7.4 in (535 mm x 158 mm x 187 mm)
-
Control: Wired and wireless remote operation
Contents
1 x Carbon Offroad Scout Pro XD10 10,000 lb Winch
1 x Synthetic winch rope (10 mm x 24 m)
1 x Winch rope thimble
1 x CNC aluminium fairlead
1 x Carbon Offroad MegaPro winch hook
1 x Winch mounting bolt kit (mounting bolts, nuts, washers, fairlead bolts)
1 x Wired remote control
1 x Wireless remote control
1 x Isolator switch
