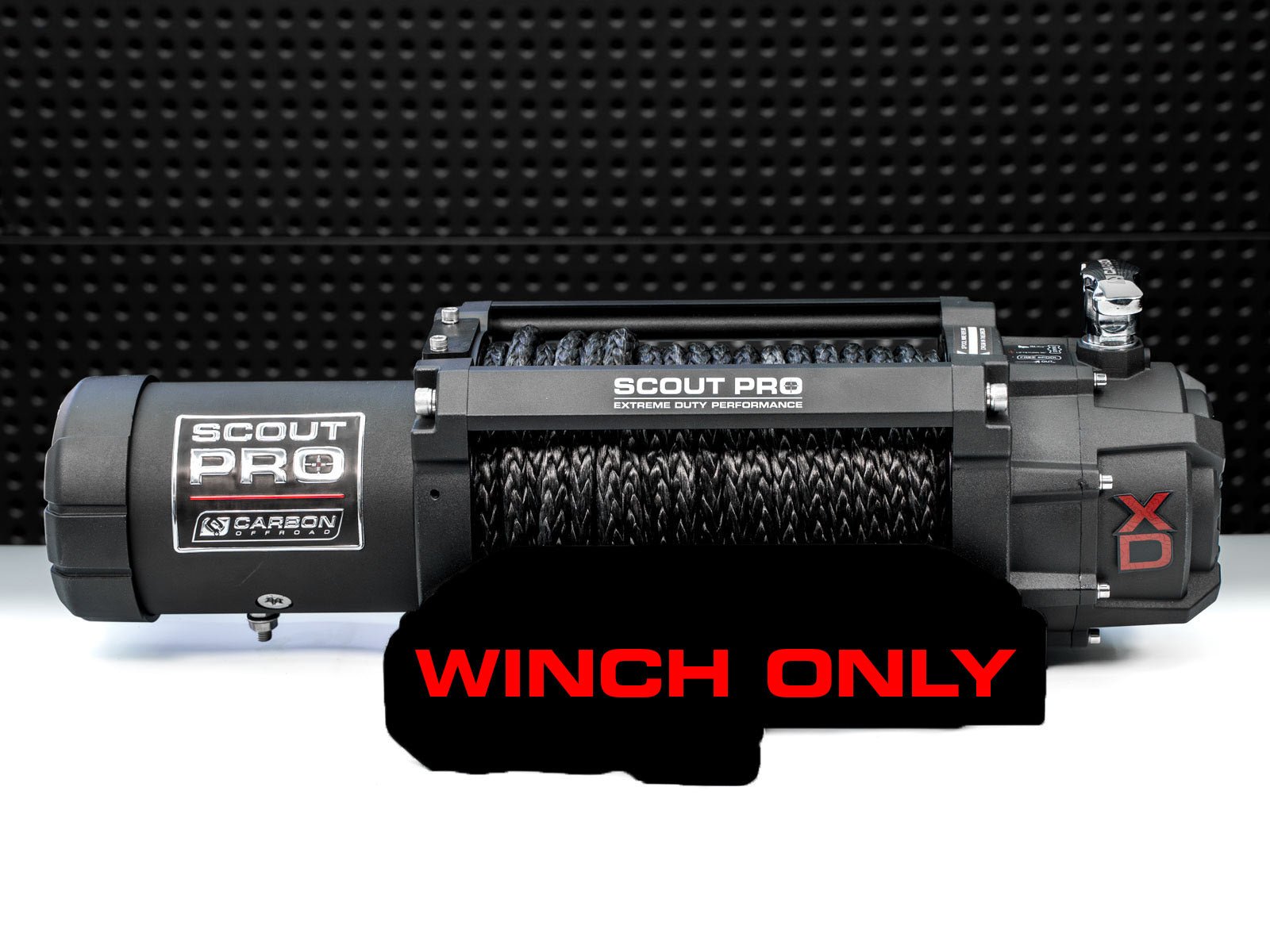

[This is a winch only listing]
The Scout Pro 15K bridges the gap between standard 12K winches and truck-grade brutes. With 15,000lb (6,804kg) pulling capacity, a 7HP motor, and oversized gearsets, it’s built for heavily loaded overland rigs, RAM 1500s, 79 Series LandCruisers, and slide-on camper haulers that push beyond a 12K’s comfort zone.
-
15,000lb (6,804kg) Rated Pull – Ideal for RAM 1500, 79 Series, LandCruiser wagons, and heavy overland rigs
-
7HP Series-Wound Motor – Provides dependable torque for heavy pulls
-
218:1 Gear Ratio – Balanced for strength and line speed
-
78ft (24m) Synthetic Rope – High-strength, lightweight UHMWPE
-
Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm)
-
Drum Dimensions – 2.50in x 8.82in (63.5mm x 224mm)
-
Winch Dimensions – 21.9in x 6.2in x 7.4in (556.5mm x 158mm x 187mm)
-
IP68 Rated – Dustproof and waterproof for harsh conditions
| CW-XD15-V3WO |
|
|
|
| 12V DC performance specs (first layer of drum) |
|
|
|
| Line Pull |
Line Speed |
Motor |
Pull by layer |
| Lbs.(Kgs.) |
FT./min(M/min.) |
Current |
layer/Lbs(Kgs.) |
| 0 |
27.9(8.5) |
65 amps |
1/15,000 (6810) |
| 2000 (910) |
11.8(3.6) |
120 amps |
2/12,700(5765) |
| 6000 (2720) |
9.5(2.9) |
160 amps |
3/10,770 (4890) |
| 10000 (4540) |
6.6 (2.0) |
215 amps |
4/9,130(4145) |
| 13000 (5900) |
4.6 (1.4) |
265 amps |
|
| 15000 (6818) |
3.6 (1.1) |
380 amps |
|
