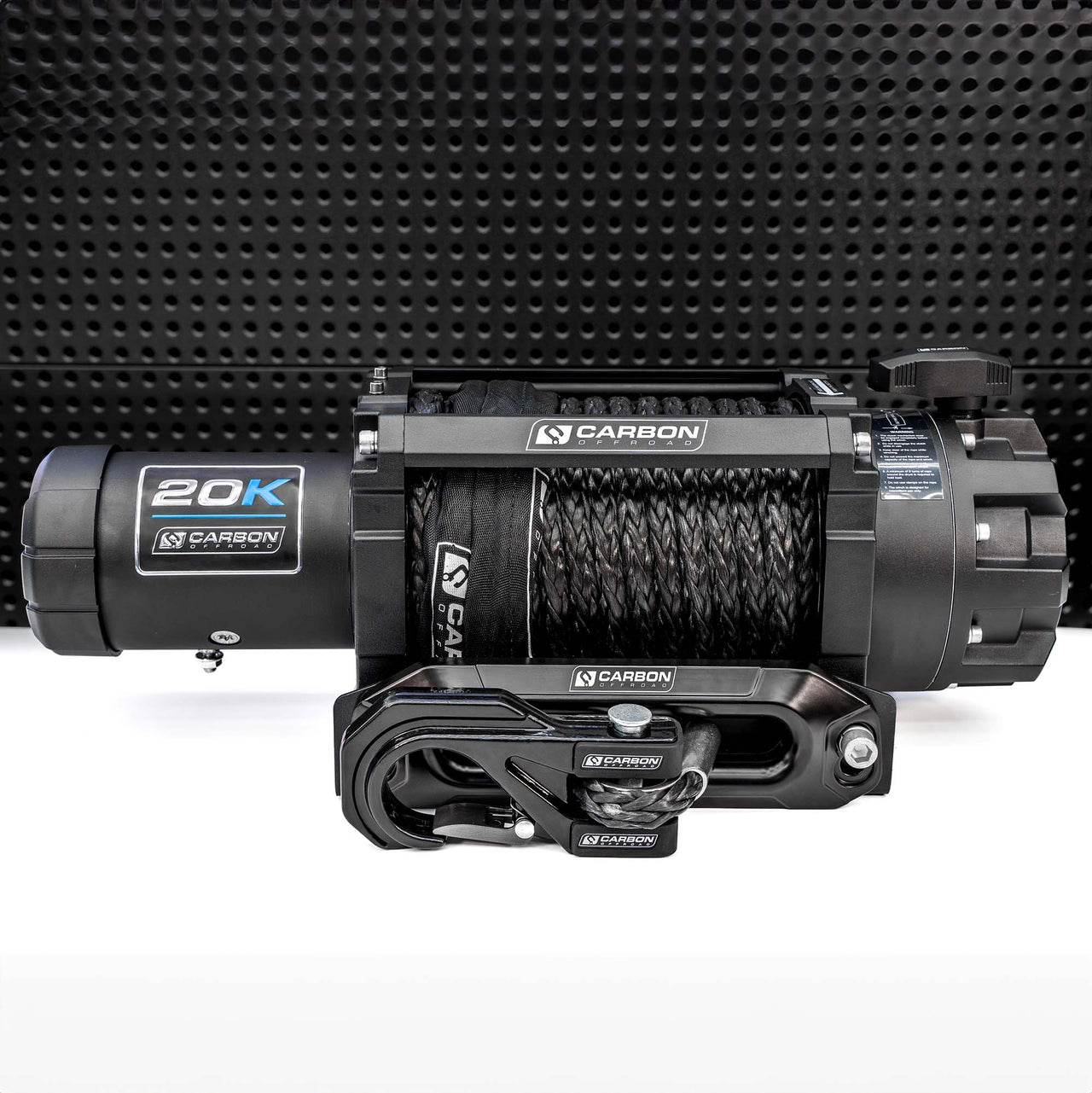

Carbon Scout Pro - 20000lb Extreme Duty Truck Winch

SKU: CW-XD20BLK

$1,499.00

Scout Pro 20K Winch – A heavy-duty 20,000lb recovery winch with a powerful 7HP series-wound motor, 354:1 gearing, and 82ft synthetic rope. IP68-rated and built for oversized trailers, expedition trucks, and brutal off-road conditions, it includes wired and wireless remotes, automatic load-holding brake, and a rotating ring gear clutch for dependable, controlled power on the toughest recoveries.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Carbon Offroad Mega Pro Winch Hook (Choose Your Colour)

Quality Assured by Carbon Staff

Your Order Packed With Care
Technical Features Dimensions Warranty

The Scout Pro 20K is built for serious recovery on heavy-duty 12V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power.

  • 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries
  • 7HP Series-Wound Motor – Delivers high torque for confident pulling
  • 354:1 Gear Ratio – Optimized for controlled, powerful winching
  • 82ft (25m) Synthetic Rope – Strong, lightweight, and easy to handle
  • Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm)
  • Drum Dimensions – 3.46in x 8.82in (88mm x 224mm)
  • Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm)
  • IP68 Rated – Fully sealed against dust and water
  • Wired + Wireless Remotes – Flexible operation options
  • Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes
  • Automatic Load-Holding Brake – Prevents rollback and overheating
  • Winch weight with synthetic rope attached – 66.14lb (30kg)
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead – 81.6lb (37kg)

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details

The Scout Pro 20K is built for serious recovery on heavy-duty 12V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power.

  • 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries
  • 7HP Series-Wound Motor – Delivers high torque for confident pulling
  • 354:1 Gear Ratio – Optimized for controlled, powerful winching
  • 82ft (25m) Synthetic Rope – Strong, lightweight, and easy to handle
  • Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm)
  • Drum Dimensions – 3.46in x 8.82in (88mm x 224mm)
  • Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm)
  • IP68 Rated – Fully sealed against dust and water
  • Wired + Wireless Remotes – Flexible operation options
  • Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes
  • Automatic Load-Holding Brake – Prevents rollback and overheating
  • Winch weight with synthetic rope attached – 66.14lb (30kg)
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead – 81.6lb (37kg)

12 Volt DC Performance Specs

Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs)
0  26.2(8.0) 70 1/20000(9072)
4000(1814) 10.8(3.3) 145 2/16140(7321)
8000(3629) 8.5(2.6) 230 3/13520(6133)
12000(5443) 6.2(1.9) 310 4/11660(5289)
16000(7257) 4.6(1.4) 390 -
20000(9072) 3.3(1.0) 460 -

Installation & User Guide

Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.

Download Guide
