Carbon Offroad - RS9-S 9000lb Short Drum Winch Winch Only

$999.00
Thumbnail for Carbon Offroad - RS9 - S 9000lb Short Drum Winch - Carbon Offroad USA
Carbon Offroad - RS9 - S 9000lb Short Drum Winch - Carbon Offroad USA
Carbon Offroad - RS9 - S 9000lb Short Drum Winch - Carbon Offroad USA

Carbon Offroad - RS9-S 9000lb Short Drum Winch Winch Only

SKU: CW-RS9-S-WO

$999.00

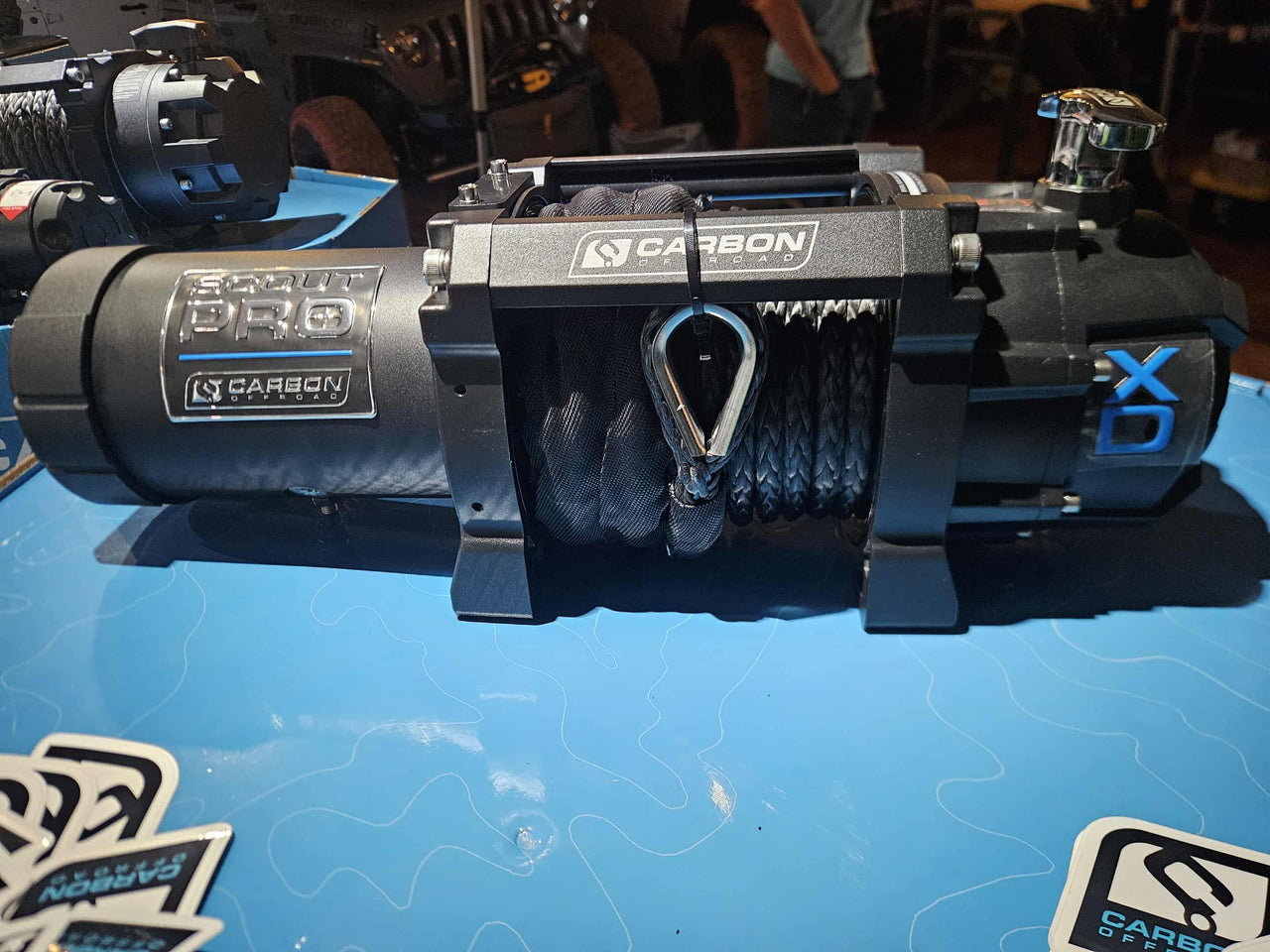

The Carbon Scout Pro RS9 Winch is a high-speed 9000lb performance winch engineered for racing and rapid recovery. Featuring a powerful 8.0HP motor, 80:1 heavy-duty gearbox, and 8mm synthetic rope with a Mega-Pro braced thimble, it’s built on the proven 2023 V3 chassis for strength and reliability. Supplied with premium accessories including the Mega-Pro Fairlead, the RS9 delivers top-tier performance straight out of the box.

Deep Hydration Fast Shipping + Order tracking
Youthful Glow 100% Australian Owned
Clear Skin Free Extended Warranty

Quality Assured by Carbon Staff

Your Order Packed With Care

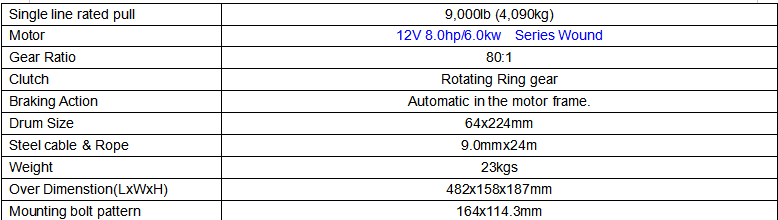

Technical Features Warranty
  • Part number: CW-RS9-S
  • Rated line pull: 9000 lbs, (6803kg) single-line
  • Motor: 12V DC 8 HP series wound motor
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 80:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Spectre™ Rope: 0.315in × 944.9in (8mm x 24m)
  • Drum Diameter/Length: 2.5in x 8.8in (63.5mm x 224mm)
  • Mounting Bolt Pattern: 6.46in x 4.5in (164mm x 114.3mm)
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 19in x 6.2in x 7.4in (482 x 158 x 187mm)
  • Packing Dimensions (L x W x H): 23in x 7.5in x 8.5in (585 x 190 x 215mm)
  • Winch weight: 50lbs (23kg)

Warranty, Service & Support

We stand behind the quality and performance of our products. All Carbon Offroad winches come with comprehensive warranty coverage and ongoing customer support. Whether you need service assistance, warranty claims, or product advice, our team is here to help.

View Warranty Details
  • Part number: CW-RS9-S
  • Rated line pull: 9000 lbs, (6803kg) single-line
  • Motor: 12V DC 8 HP series wound motor
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 80:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Spectre™ Rope: 0.315in × 944.9in (8mm x 24m)
  • Drum Diameter/Length: 2.5in x 8.8in (63.5mm x 224mm)
  • Mounting Bolt Pattern: 6.46in x 4.5in (164mm x 114.3mm)
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 19in x 6.2in x 7.4in (482 x 158 x 187mm)
  • Packing Dimensions (L x W x H): 23in x 7.5in x 8.5in (585 x 190 x 215mm)
  • Winch weight: 50lbs (23kg)

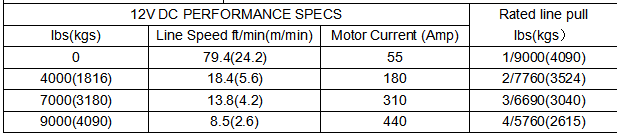

12V DC Performance Specs

Line Pull lbs(kgs) Line Speed ft/min(m/min) Motor Current (Amps) Rated line pull lbs(kgs)
0 79.4(24.2) 55 1/9000(4090)
4000(1816) 18.4(5.6) 180 2/7760(3524)
7000(3180) 13.8(4.2) 310 3/6690(3040)
9000(4090) 8.5(2.6) 440 4/5760(2615)

Installation & User Guide

Get the most out of your Scout Pro winch with our step-by-step installation and user guide. Learn how to install, operate, and maintain your winch safely and effectively.

Download Guide

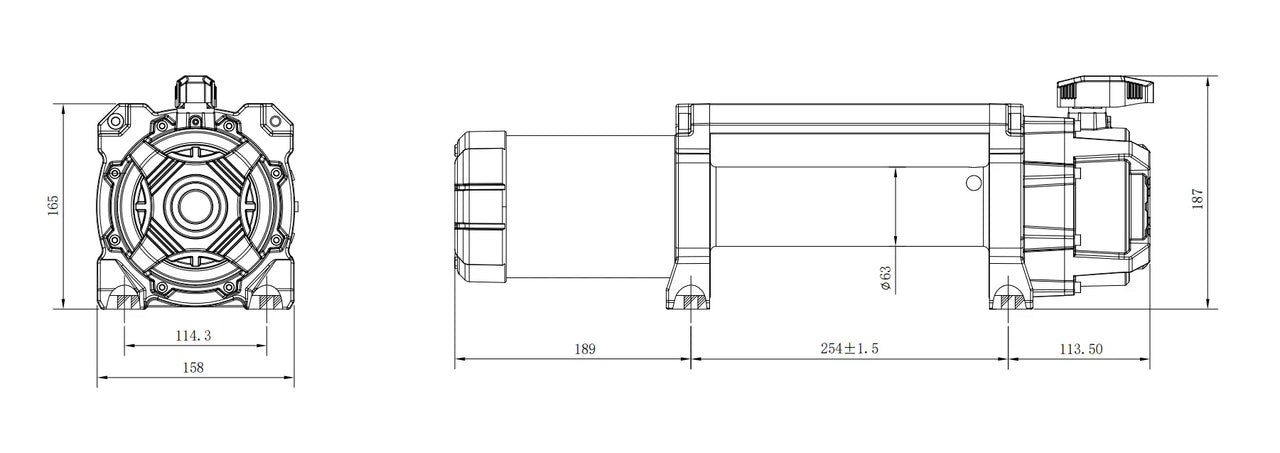

Winch Dimensions

Click Here for a Winch Dimension Comparison Chart
