Extreme Duty Recovery Power The Carbon Offroad Scout Pro XD10 is a 12V, 4536kg (10000lbs) electric recovery winch built to handle regular, heavy-duty offroad recovery work. Overview Engineered for the Outback. Got a bull bar rated to 10K? Stay within spec and retain your warranty with the Carbon XD10. As part of the Scout Pro Extreme Duty Performance Series, it is designed specifically to suit heavier vehicles operating in harsh Australian conditions. You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches. Features Extreme Duty Construction: Built to the exacting standards of the Scout Pro Extreme Duty Performance Series for maximum reliability, featuring a matte black powder coat finish and 316 stainless steel hardware. Reliable Clutch System: Features a rotating ring gear clutch operated by a stylish chrome freespool clutch handle with an etched Carbon Offroad logo. Optimised Winch Drum: The checker-knurled winch drum provides superior grip for the synthetic rope under heavy loads. MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior rope protection. Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty. Contents 1 x Carbon Offroad Scout Pro XD10 10000lb Winch (CW-XD10)1 x Synthetic Winch Rope (24m x 10mm, black)1 x Winch Rope Thimble1 x MegaPro CNC Aluminium Fairlead1 x Carbon Offroad MegaPro Winch Hook1 x Wired Remote Control (3.7m lead)1 x Wireless Remote Control1 x Isolator Switch1 x Winch Mounting Bolt Kit (mounting bolts, nuts, washers, fairlead bolts)   Feature Specification Metric (Imperial) Part Number CW-XD10 Rated Line Pull 4536kg (10000lbs) single-line Motor 12V DC 6.0 HP series wound (24V option available) Geartrain 3-Stage Planetary Gear Ratio 180:1 Clutch Rotating ring gear clutch Brake Automatic brake in the motor bracket Synthetic Rope 24m x 10mm (78.7ft x 3/8") Fairlead MegaPro CNC billet type 3 hard anodised Hardware 316 stainless steel Drum Dimensions 63mm x 224mm (2.48" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10.0" x 4.5") Recommended Battery 650 CCA minimum for winching Winch Dimensions (L x W x H) 538 x 158 x 187mm (21.2" x 6.2" x 7.4") Packing Dimensions (L x W x H) 580 x 200 x 220mm (22.8" x 7.9" x 8.7") Winch Weight (Bare) 19.0kg (41.9 lbs) with synthetic rope attached Total Kit Weight 26.7kg (58.9 lbs) including control box, cables, bolts & fairlead   12V DC Performance Specs Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs) 0 31.8 (10.6) 60 1 / 10000 (4540) 4000 (1814) 10.8 (3.8) 190 2 / 8200 (3720) 6000 (2722) 8.5 (3.2) 250 3 / 6840 (3103) 8000 (3630) 6.2 (2.6) - 4 / 5820 (2640) 10000 (4540) 4.6 (2.1) 370 -

Heavy Duty Recovery Power The Carbon Offroad CW-XD15-V3 is a heavy-duty recovery solution delivering an immense 6803kg (15000lbs) of pulling capacity via a powerful 12V DC 7.0 HP series wound motor. Overview Engineered for the Outback. Built for reliable off-road recovery, this winch utilises a 3-stage planetary geartrain with a 218:1 gear ratio and a rotating ring gear. It features an automatic brake inside the motor bracket for secure load holding during highly technical recoveries. You can also upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for seamless integration with Carbon Offroad 12K and Scout Pro winches. Features Extreme Pulling Capacity: Delivers 6803kg (15000lbs) of single-line pull, perfect for heavily loaded 4WDs and extreme off-road scenarios. Dual Control Options: Comes standard with a wired remote (featuring a 3.6m / 11.8ft lead) and a wireless remote for flexible, safe operation. Reliable Braking: An automatic brake in the motor bracket ensures absolute control and prevents rollback under heavy loads. MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior synthetic rope protection. Comprehensive Warranty: Backed by a Lifetime Mechanical Warranty, a 5-Year Electrical Warranty, and a 5-Year Water Ingress Protection Warranty. Contents 1 x Carbon Offroad CW-XD15-V3 Winch1 x Synthetic Rope (11mm x 24m / 7/16" x 78.7ft)1 x Carbon Offroad MegaPro Fairlead1 x Control Box Complete with Cables1 x Wired Remote Control (3.6m / 11.8ft lead)1 x Wireless Remote Control1 x Mounting Bolts Kit   Feature Specification Metric (Imperial) Part Number CW-XD15-V3 Rated Line Pull 6803kg (15000lbs) single-line Motor 12V DC 7.0 HP series wound Geartrain 3-Stage Planetary Gear Ratio 218:1 Brake Automatic brake in the motor bracket Synthetic Rope 11mm x 24m (7/16" x 78.7ft) Fairlead MegaPro CNC billet type 3 hard anodised Drum Dimensions 63.5mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10.0" x 4.5") Recommended Battery 650 CCA minimum for winching Winch Dimensions (L x W x H) 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4") Packing Dimensions (L x W x H) 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7") Installed Weight 26.7kg (58.9 lbs)   12V DC Performance Specs Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs) 0 27.9 (8.5) 65 1 / 15000 (6810) 2000 (910) 11.8 (3.6) 120 2 / 12700 (5765) 6000 (2720) 9.5 (2.9) 160 3 / 10770 (4890) 10000 (4540) 6.6 (2.0) 215 4 / 9130 (4145) 13000 (5900) 4.6 (1.4) 265 - 15000 (6818) 3.6 (1.1) 380 -

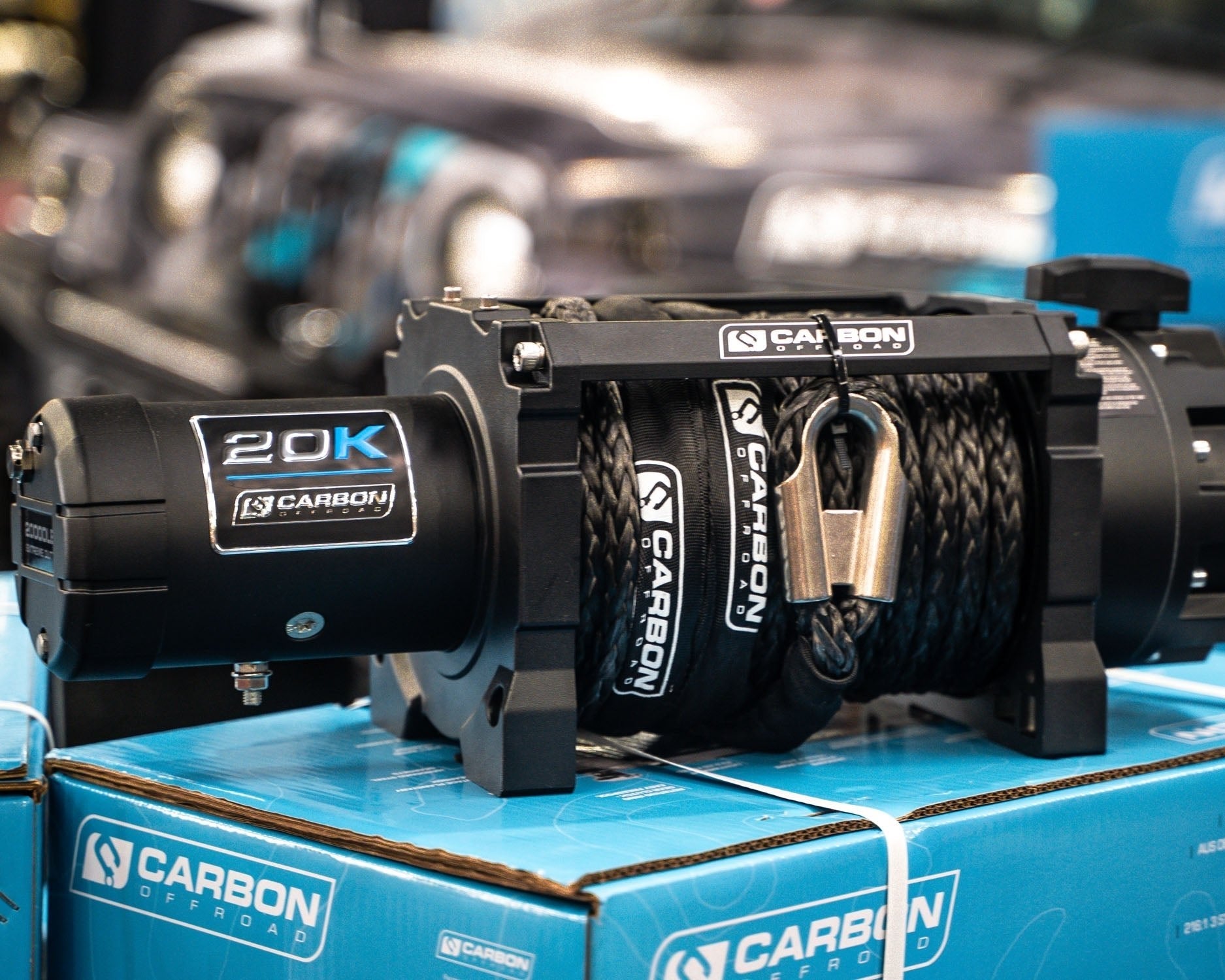

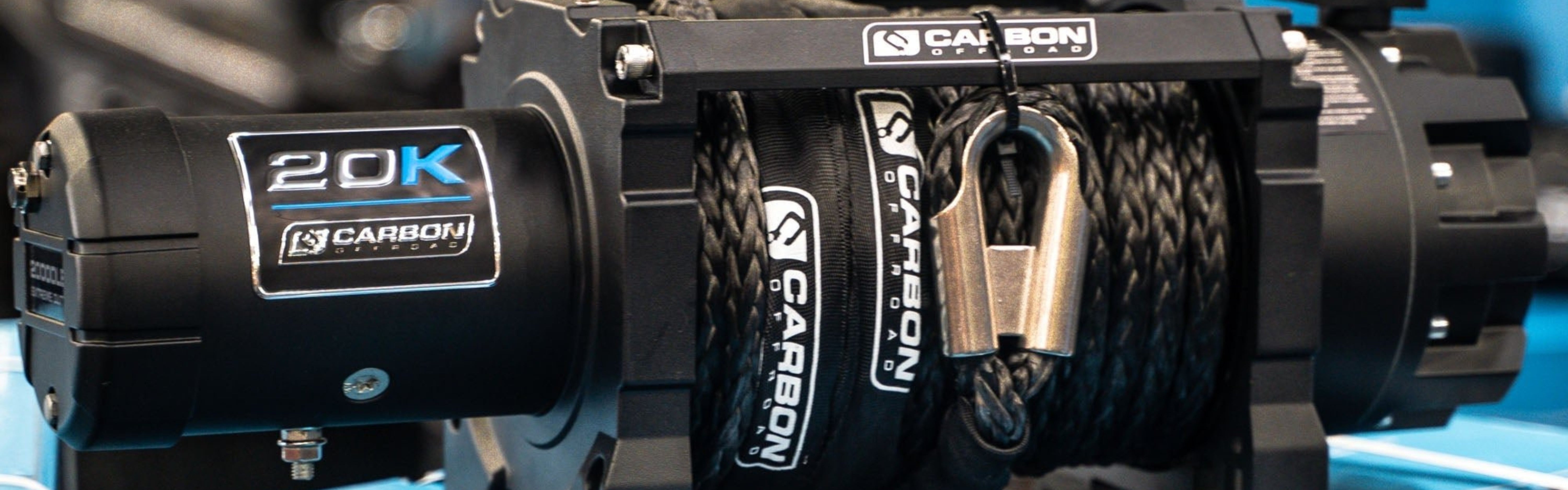

Extreme Duty Recovery Power The Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch is engineered to deliver reliable performance in demanding off-road and recovery environments, featuring a massive 7HP series-wound motor and an ultra-low 354:1 three-stage planetary gearbox. Overview The Carbon Offroad Scout 20K is a high-capacity recovery powerhouse. With a rated pulling capacity of 9072kg (20000lbs), the CW-XD20 is specifically suited to hauling heavy trailers, recovering large commercial vehicles, and operating in extreme terrain where consistent, unstoppable pulling power is required. For ultimate convenience, you can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for seamless integration with the Scout Pro series. Features Colossal Pulling Capacity: Delivers a massive 9072kg (20000lbs) single-line pull for heavy-duty trucks and industrial recovery. Proportional Braking: The automatic brake system integrated within the motor frame applies force based on the load, significantly reducing heat buildup on the drum. MegaPro Premium Components: Includes the multi-position CNC billet type 3 hard anodised fairlead for maximum protection of your high-capacity synthetic rope. Rotating Ring Gear Clutch: Provides easy switching between freespool and engaged modes for rapid deployment. Weatherproof Electronics: Features a 600A sealed solenoid and an IP68 rating for protection against water ingress and dust. Unmatched Warranty: Backed by a Lifetime Mechanical Warranty and 5-Year Electrical and Water Ingress Protection. Contents 1 x Carbon Offroad Scout Pro 20K Truck Winch1 x Synthetic Rope (25m x 13mm / 82ft x 0.5")1 x MEGAPRO CNC Billet Fairlead1 x 600A Sealed Solenoid & Control Box1 x Wired Remote Control (3.6m / 11.8ft lead)1 x Wireless Remote Control1 x Mounting Hardware Kit   Feature Specification Metric (Imperial) Part Number CW-XD20 Rated Line Pull 9072kg (20000lbs) single-line Motor 12V DC 7HP Series Wound Gear Ratio 354:1 3-Stage Planetary Synthetic Rope 25m x 13mm (82ft x 0.5") Drum Dimensions (D x L) 88mm x 224mm (3.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Winch Dimensions (L x W x H) 579mm x 192mm x 224mm (22.8" x 7.6" x 8.8") Recommended Battery 650 CCA minimum Installed Weight 31.7kg (69.9lbs) Total Kit Weight 37.2kg (82.0lbs)   12V DC Performance Specs Line Pull lbs (kgs) Line Speed ft/min (m/min) Motor Current (Amps) Rated Line Pull Position lbs (kgs) 0 26.2 (8.0) 70 1 / 20000 (9072) 4000 (1814) 10.8 (3.3) 145 2 / 16140 (7321) 8000 (3629) 8.5 (2.6) 230 3 / 13520 (6133) 12000 (5443) 6.2 (1.9) 310 4 / 11660 (5289) 16000 (7257) 4.6 (1.4) 390 - 20000 (9072) 3.3 (1.0) 460 -

Extreme Duty Recovery Power Introducing the Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch, engineered to deliver exceptional performance and reliability in the most demanding environments. Are you ready to take your offroad adventures to the next level? Look no further than the Carbon Offroad Scout 20K, a powerhouse designed to tackle the toughest challenges with ease. With a massive 9072kg (20000lbs) of pulling capacity, the Carbon CW-XD20 is engineered to handle the most demanding tasks. Whether you're hauling heavy trailers, or recovering heavy vehicles or tackling extreme terrain this winch has the power to get you through. If you own a large offroad vehicle, this is the winch you've been waiting for. With its unmatched power, durability and safety features, it is the perfect tool to conquer any terrain and make your offroad adventures unforgettable. Compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches. Technical Features Powerful Performance: The series-wound motor generates 7HP. Reliable and Durable: The three-stage planetary gearbox provides unmatched durability and reliability, even under the harshest conditions. Enhanced Safety: The automatic brake system within the motor frame eliminates the risk of overheating and ensures maximum safety by applying consistent, proportional braking force to the rope based on the load. Easy Operation: The rotating ring gear clutch allows for effortless switching between freespool and engaged modes. Versatile Control: Wired and wireless remote control options offer convenient and flexible operation. Robust Construction: The 600A sealed solenoid guarantees reliable and long lasting performance. Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead. Contents 1 x Carbon Offroad Scout Pro 20K Truck Winch 24V 1 x Wired Remote Control (3.6m / 11.8ft lead) 1 x Wireless Remote Control 1 x Synthetic Rope 1 x MEGAPRO Fairlead   Feature Specification Metric (Imperial) Rated Line Pull 9072kg (20000lbs) Motor 24V DC 7HP Series Wound Gear Ratio 354:1 3-Stage Planetary Rope Dimensions 13mm x 25m (0.5" x 82ft) Drum Dimensions (Diameter x Length) 88mm x 224mm (3.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Winch Dimensions (L x W x H) 579mm x 192mm x 224mm (22.8" x 7.6" x 8.8") Packing Dimensions (L x W x H) 640mm x 250mm x 345mm (25.2" x 9.8" x 13.6") Weight (Winch with Rope) 30kg (66.1lbs) Weight (Complete Kit) 37kg (81.6lbs) Recommended Battery 650 CCA minimum

Built for Speed The Carbon Offroad RS9 High Speed Winch Kit features an 8.0HP series-wound motor and a performance-tuned 80:1 gear ratio for unmatched recovery speed. The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you're looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class. The bottom line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings. You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches. The RS Series Breakdown High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load. Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance. Line Capacity: Comes standard with 42m (137ft) of 8mm (5/16") Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions. Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment. Contents 1 x Carbon Offroad RS9 Winch 1 x 42m (137ft) Spectra™ Fiber Synthetic Rope 1 x MegaPro Hook 1 x Fairlead 1 x Wiring Accessory Kit.   Feature Specification Metric (Imperial) Rated Line Pull 4080kg (9000lbs) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 42m (5/16" x 137ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") Drum Dimensions (Diameter x Length) 63mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Chassis Carbon Offroad Version 3 (V3)   Line Pull Metric (Imperial) Line Speed Metric (Imperial) Motor Current 0kg (0lbs) 24.2m/min (79.4fpm) 55A 1816kg (4000lbs) 5.6m/min (18.4fpm) 180A 3180kg (7000lbs) 4.2m/min (13.8fpm) 310A 4090kg (9000lbs) 2.6m/min (8.5fpm) 440A   Layer Rated Line Pull Metric (Imperial) 1 4090kg (9000lbs) 2 3524kg (7760lbs) 3 3040kg (6690lbs) 4 2615kg (5760lbs)

The Carbon Offroad Scout Pro RS9-S (Short Drum): Pure Race Power Maximum Muscle. Minimum Footprint. When you’re piloting a race buggy, UTV, or specialized ATV, every millimeter and every gram counts. The Scout Pro RS9-S is the short-drum evolution of our high-speed series—designed specifically for tight spaces where you refuse to compromise on recovery speed or pulling power. The RS9-S Advantage Don’t let the compact size fool you. This is the same 8.0HP powerhouse found in our full-size rigs, shortened down for elite racing applications. With a performance-tuned 80:1 gear ratio, the RS9-S delivers the fastest line speeds in the UTV/Buggy class. Built on our ultra-lightweight chassis, it comes standard with 24m (80ft) of 8mm Spectra™ Fiber synthetic rope. It’s the ultimate "insurance policy" for competitors who need to winch fast, win big, and keep their front end light and flickable. Combatable with Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches. Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 24m (5/16" x 80ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 385mm x 115mm x 120mm (15.16" x 4.53" x 4.7") Drum Diameter x Length 63mm x 122mm (2.5" x 4.8") Mounting Bolt Pattern 164mm x 114.3mm (6.46" x 4.5") Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit Winch Weight 22kg (48.4lb)   Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A   Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)   Builder & Racer Note The RS9-S features a shortened drum and chassis to fit narrow mounting locations common in race buggies and UTVs. Despite its compact 385mm (15.16 inch) length, it retains the full-sized 8.0HP motor. Ensure your mounting plate or winch cradle is rated for 9,000lb (4,080kg) loads, as this unit packs significantly more punch than standard UTV-class winches.
