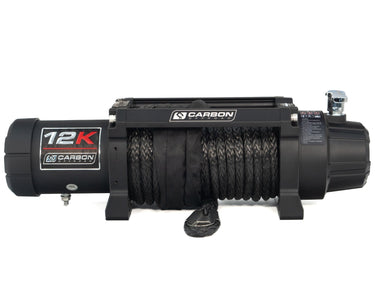

THIS ITEM IS WINCH ONLY The Carbon 12K is a lightweight, high-performance 12000lb winch designed to handle tough off-road conditions. Engineered in Australia and refined through real-world use. With a powerful 6.2HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain. Supplied as a complete kit with everything you need - wired and wireless remotes (both included), synthetic rope, CNC alloy fairlead, isolator switch, and all mounting hardware - it’s ready for installation straight out of the box. The control box offers flexible mounting options, and the multi-fit fairlead ensures compatibility with most bars. Backed by a lifetime mechanical warranty and 5-year electrical and water ingress cover, the Carbon 12K Winch delivers long-term value with no compromises. River crossings and mud runs are stress-free. This winch features a breathable membrane-style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote (both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection6 - Can withstand dust and dirt8 - Can be submerged under freshwater for 30 minutes up to 5' depth, but not during operation. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises. If you're capable with a few basic tools, installing a Carbon Winch is easy, with step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle. Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor. Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 55lb Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. Get a winch you can trust.

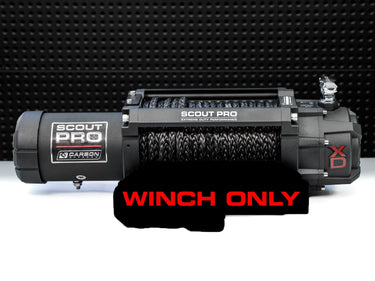

[This is a winch only listing] The Scout Pro 15K bridges the gap between standard 12K winches and truck-grade brutes. With 15,000lb (6,804kg) pulling capacity, a 7HP motor, and oversized gearsets, it’s built for heavily loaded overland rigs, RAM 1500s, 79 Series LandCruisers, and slide-on camper haulers that push beyond a 12K’s comfort zone. 15,000lb (6,804kg) Rated Pull – Ideal for RAM 1500, 79 Series, LandCruiser wagons, and heavy overland rigs 7HP Series-Wound Motor – Provides dependable torque for heavy pulls 218:1 Gear Ratio – Balanced for strength and line speed 78ft (24m) Synthetic Rope – High-strength, lightweight UHMWPE Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm) Drum Dimensions – 2.50in x 8.82in (63.5mm x 224mm) Winch Dimensions – 21.1in x 6.2in x 7.4in (535mm x 158mm x 187mm) IP68 Rated – Dustproof and waterproof for harsh conditions Forged Rope Thimble & MegaPro Hook – Available in 10 color options Precision Alloy Fairlead – Forged, engraved, and machined for durability Wired + Wireless Remotes – Operate from the cab or at the winch   CW-XD15       12V DC performance specs (first layer of drum)       Line Pull Line Speed Motor Pull by layer Lbs.(Kgs.) FT./min(M/min.) Current layer/Lbs(Kgs.) 0 27.9(8.5)  65 amps  1/15,000 (6810) 2000 (910)  11.8(3.6)  120 amps  2/12,700(5765) 6000 (2720)  9.5(2.9)  160 amps  3/10,770 (4890) 10000 (4540)  6.6 (2.0)  215 amps  4/9,130(4145) 13000 (5900)  4.6 (1.4)  265 amps   15000 (6818)  3.6 (1.1)  380 amps

[This is a winch only listing] The Scout Pro 20K is built for serious recovery on heavy-duty 12V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power. 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries 7HP Series-Wound Motor – Delivers high torque for confident pulling 345:1 Gear Ratio – Optimized for controlled, powerful winching 82ft (25m) Synthetic Rope – Strong, lightweight, and easy to handle Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm) Drum Dimensions – 3.46in x 8.82in (88mm x 224mm) Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm) IP68 Rated – Fully sealed against dust and water Wired + Wireless Remotes – Flexible operation options Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes Automatic Load-Holding Brake – Prevents rollback and overheating

[This is a winch only listing] The Scout Pro 20K is built for serious recovery on heavy-duty 24V rigs. With 20,000lb of pulling capacity, a 7HP series-wound motor, and a rugged build, it’s made for oversized trailers, expedition trucks, and heavy work vehicles. Whether hauling, rescuing fully loaded 4WDs, or tackling brutal off-road conditions, this winch delivers dependable, uncompromising power. 20,000lb (9,072kg) Rated Pull – Maximum capacity for extreme recoveries 7HP Series-Wound Motor – Delivers high torque for confident pulling 345:1 Gear Ratio – Optimized for controlled, powerful winching 82ft (25m) Synthetic Rope – Strong, lightweight, and easy to handle Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm) Drum Dimensions – 3.46in x 8.82in (88mm x 224mm) Winch Dimensions – 22.8in x 7.6in x 8.8in (579mm x 192mm x 224mm) IP68 Rated – Fully sealed against dust and water Wired + Wireless Remotes – Flexible operation options Rotating Ring Gear Clutch – Quick shift between freespool and engaged modes Automatic Load-Holding Brake – Prevents rollback and overheating
