CW-XD20BLK-24V
$1,499.00
Shipping calculated at checkout.
Fast Dispatch
Ships from Utah
Expert Product Support
Secure Checkout
Quantity
Carbon Scout Pro - 20000lb Extreme Duty Truck Winch 24V
BLACK
$1,499.00
Extreme Duty Recovery Power

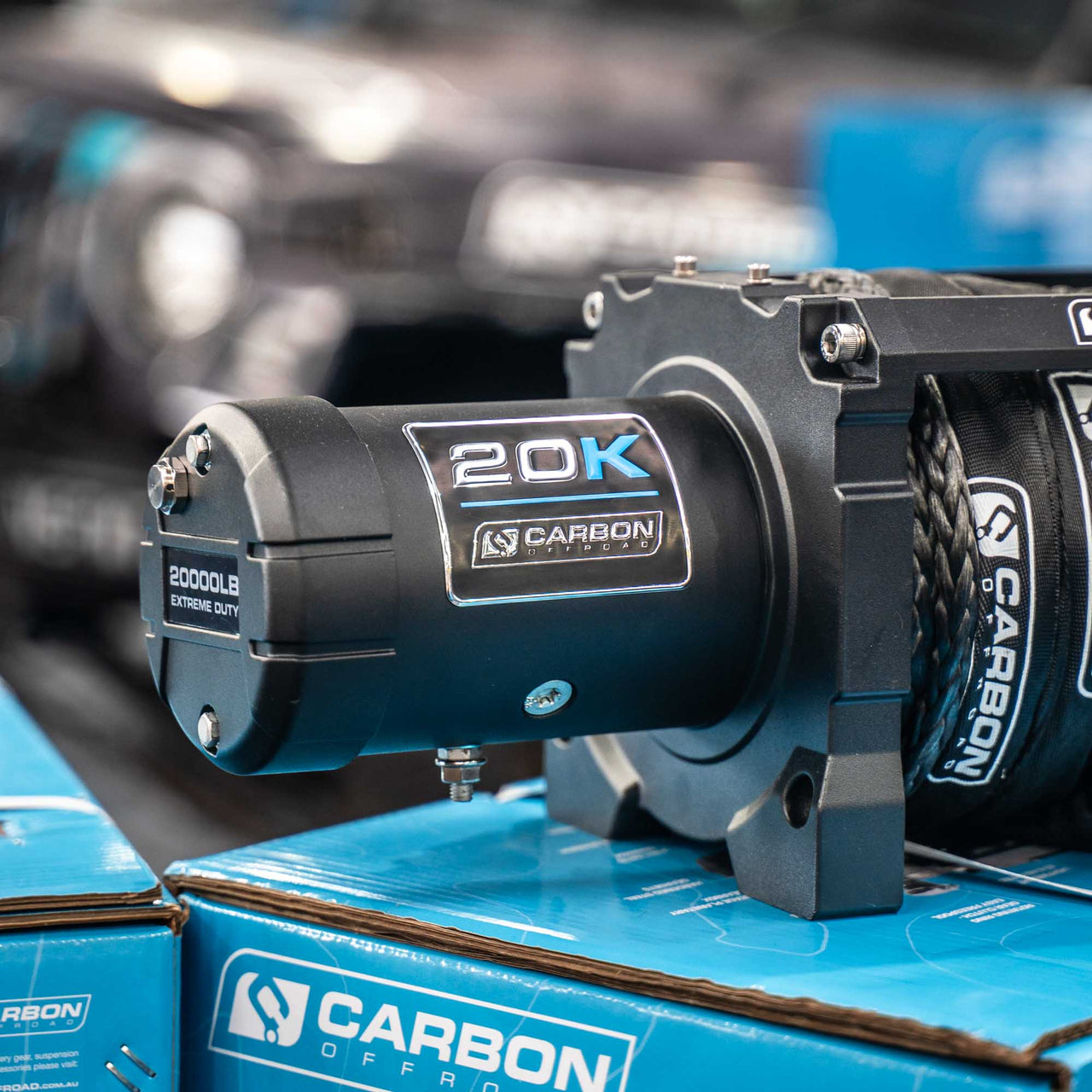

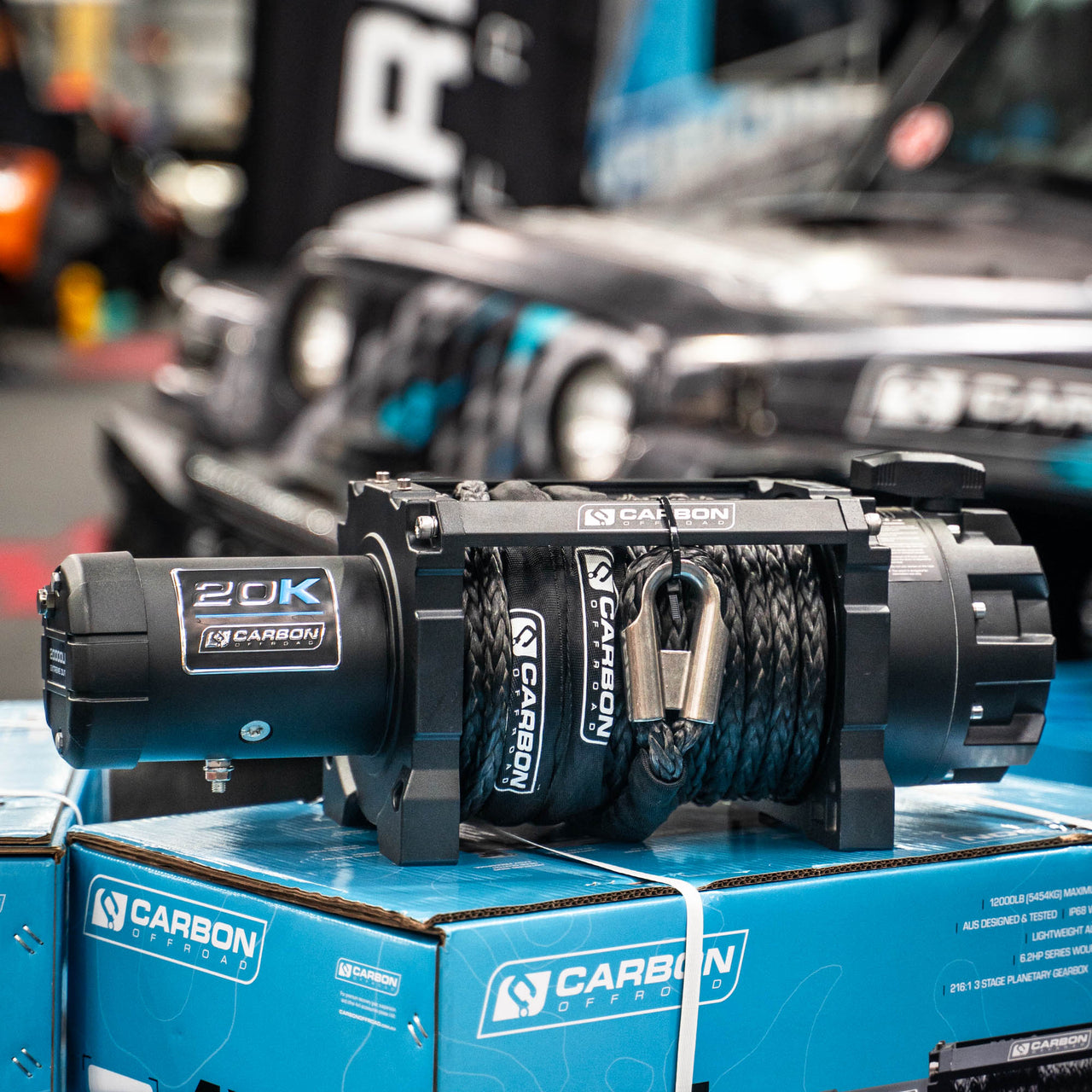

Introducing the Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch, engineered to deliver exceptional performance and reliability in the most demanding environments.
Are you ready to take your offroad adventures to the next level? Look no further than the Carbon Offroad Scout 20K, a powerhouse designed to tackle the toughest challenges with ease. With a massive 9072kg (20000lbs) of pulling capacity, the Carbon CW-XD20 is engineered to handle the most demanding tasks. Whether you're hauling heavy trailers, or recovering heavy vehicles or tackling extreme terrain this winch has the power to get you through. If you own a large offroad vehicle, this is the winch you've been waiting for. With its unmatched power, durability and safety features, it is the perfect tool to conquer any terrain and make your offroad adventures unforgettable.
Compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Technical Features
- Powerful Performance: The series-wound motor generates 7HP.
- Reliable and Durable: The three-stage planetary gearbox provides unmatched durability and reliability, even under the harshest conditions.
- Enhanced Safety: The automatic brake system within the motor frame eliminates the risk of overheating and ensures maximum safety by applying consistent, proportional braking force to the rope based on the load.

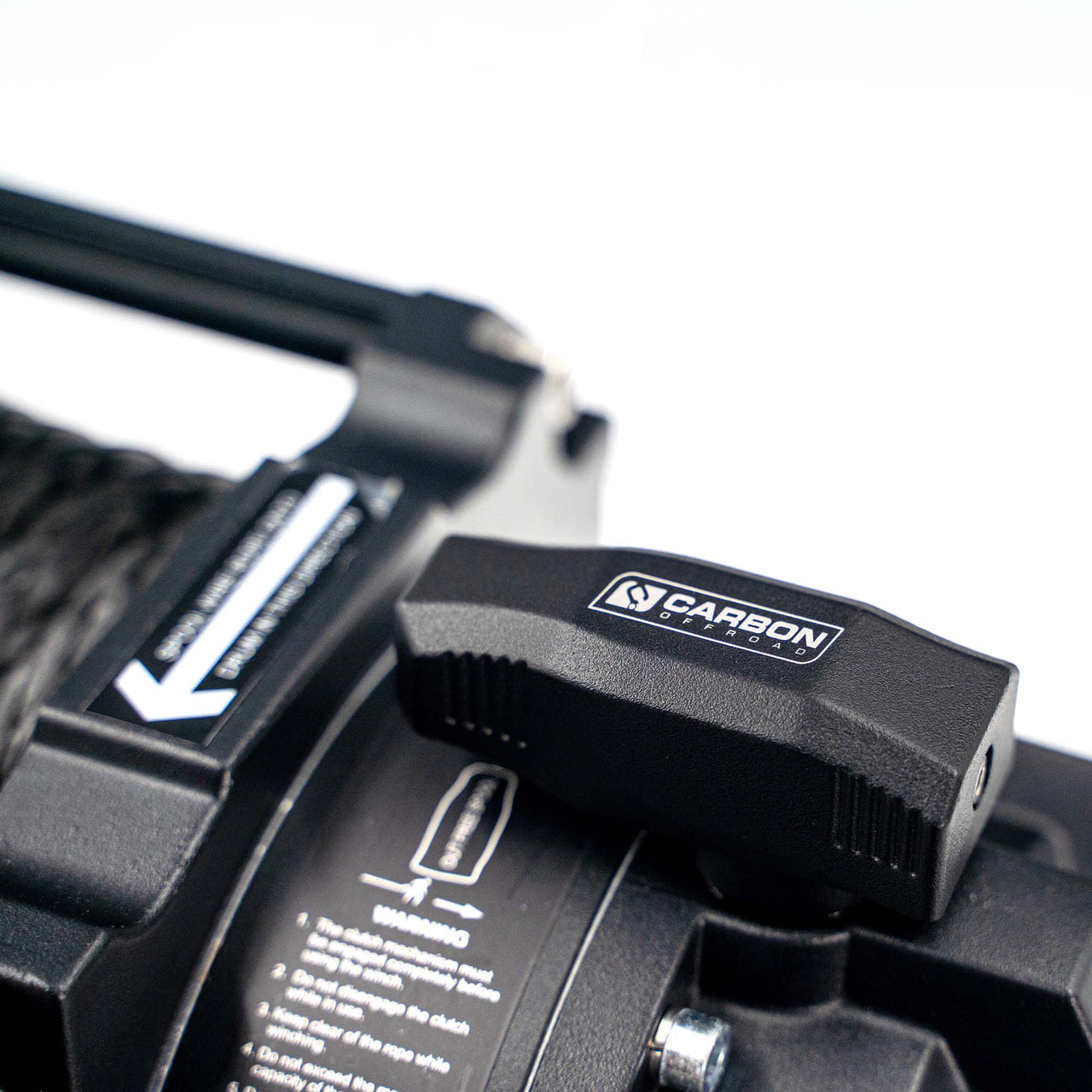

- Easy Operation: The rotating ring gear clutch allows for effortless switching between freespool and engaged modes.
- Versatile Control: Wired and wireless remote control options offer convenient and flexible operation.
- Robust Construction: The 600A sealed solenoid guarantees reliable and long lasting performance.
- Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead.
Contents
1 x Carbon Offroad Scout Pro 20K Truck Winch 24V
1 x Wired Remote Control (3.6m / 11.8ft lead)
1 x Wireless Remote Control
1 x Synthetic Rope
1 x MEGAPRO Fairlead
| Feature | Specification Metric (Imperial) |
|---|---|
| Rated Line Pull | 9072kg (20000lbs) |
| Motor | 24V DC 7HP Series Wound |
| Gear Ratio | 354:1 3-Stage Planetary |
| Rope Dimensions | 13mm x 25m (0.5" x 82ft) |
| Drum Dimensions (Diameter x Length) | 88mm x 224mm (3.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
| Winch Dimensions (L x W x H) | 579mm x 192mm x 224mm (22.8" x 7.6" x 8.8") |
| Packing Dimensions (L x W x H) | 640mm x 250mm x 345mm (25.2" x 9.8" x 13.6") |
| Weight (Winch with Rope) | 30kg (66.1lbs) |
| Weight (Complete Kit) | 37kg (81.6lbs) |
| Recommended Battery | 650 CCA minimum |
Speed & Performance Breakdown
24V DC Performance Specs
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Motor Current (Amps) | Rated Line Pull Position lbs (kgs) |
|---|---|---|---|
| 0 | 25.6 (7.8) | 40 | 1/20000 (9072) |
| 8000 (3630) | 8.5 (2.6) | 125 | 2/16140 (7321) |
| 16000 (7257) | 4.6 (1.4) | 200 | 3/13520 (6133) |
| 20000 (9072) | 3.3 (1.0) | 280 | 4/11660 (5290) |
